Power Steering Line/Hose: Service and Repair




HYDRAULIC LINE

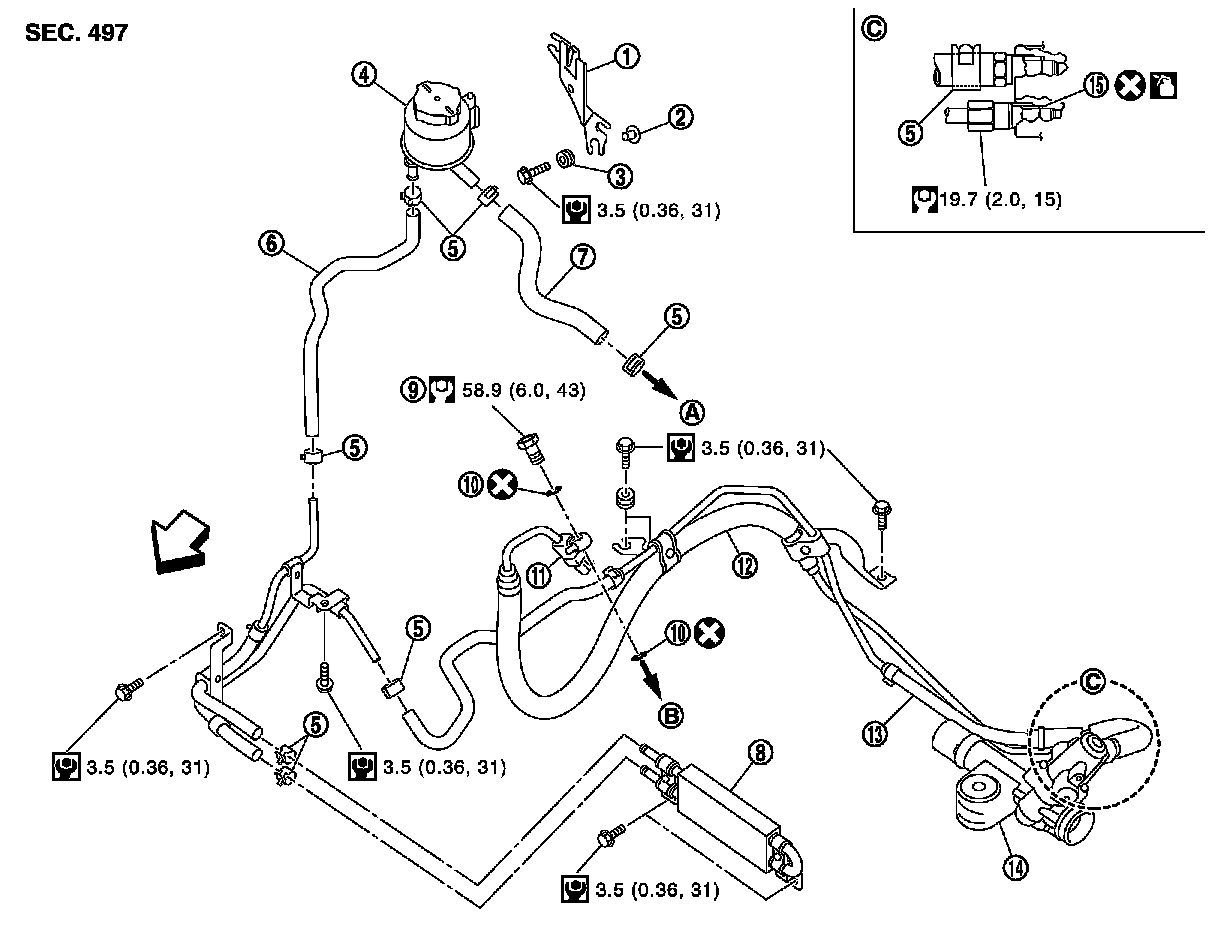

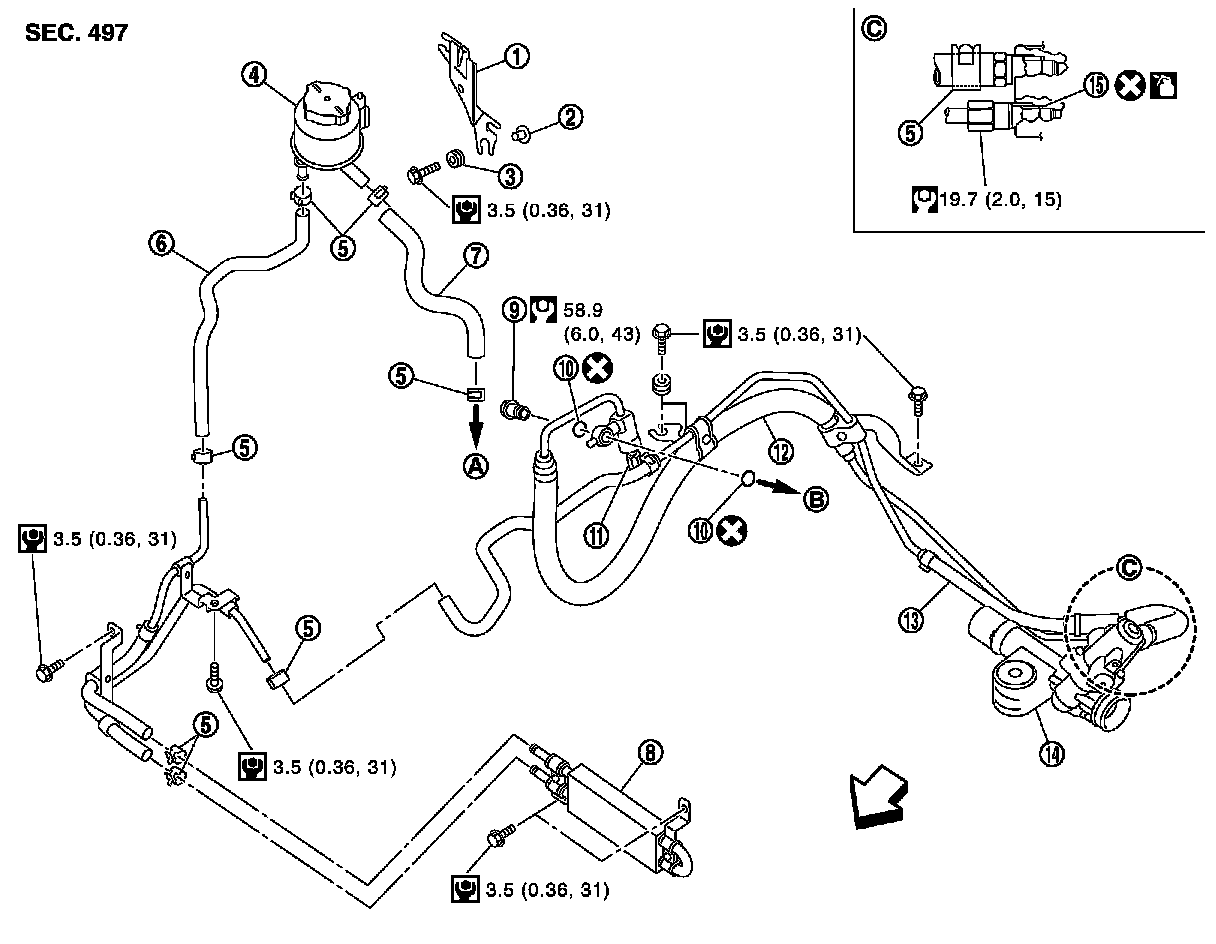

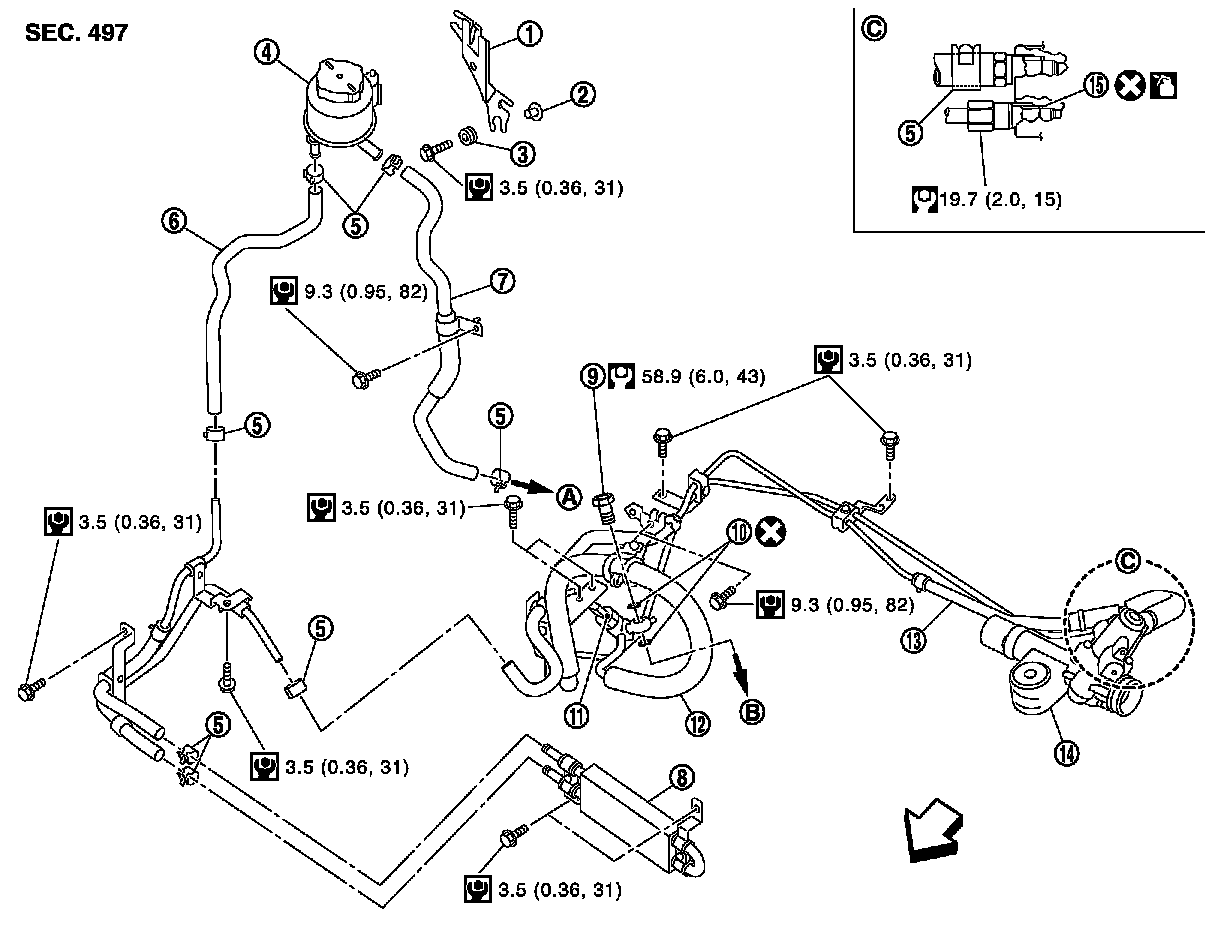

2WD : Exploded View


VQ37VHR






















VK56VD
