Pinout Values and Diagnostic Parameters




REAR SUNSHADE CONTROL UNIT

Reference Value

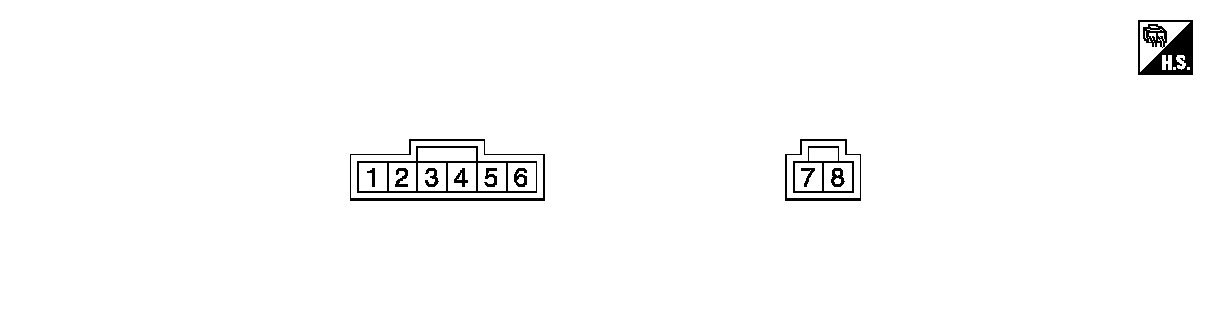

TERMINAL LAYOUT

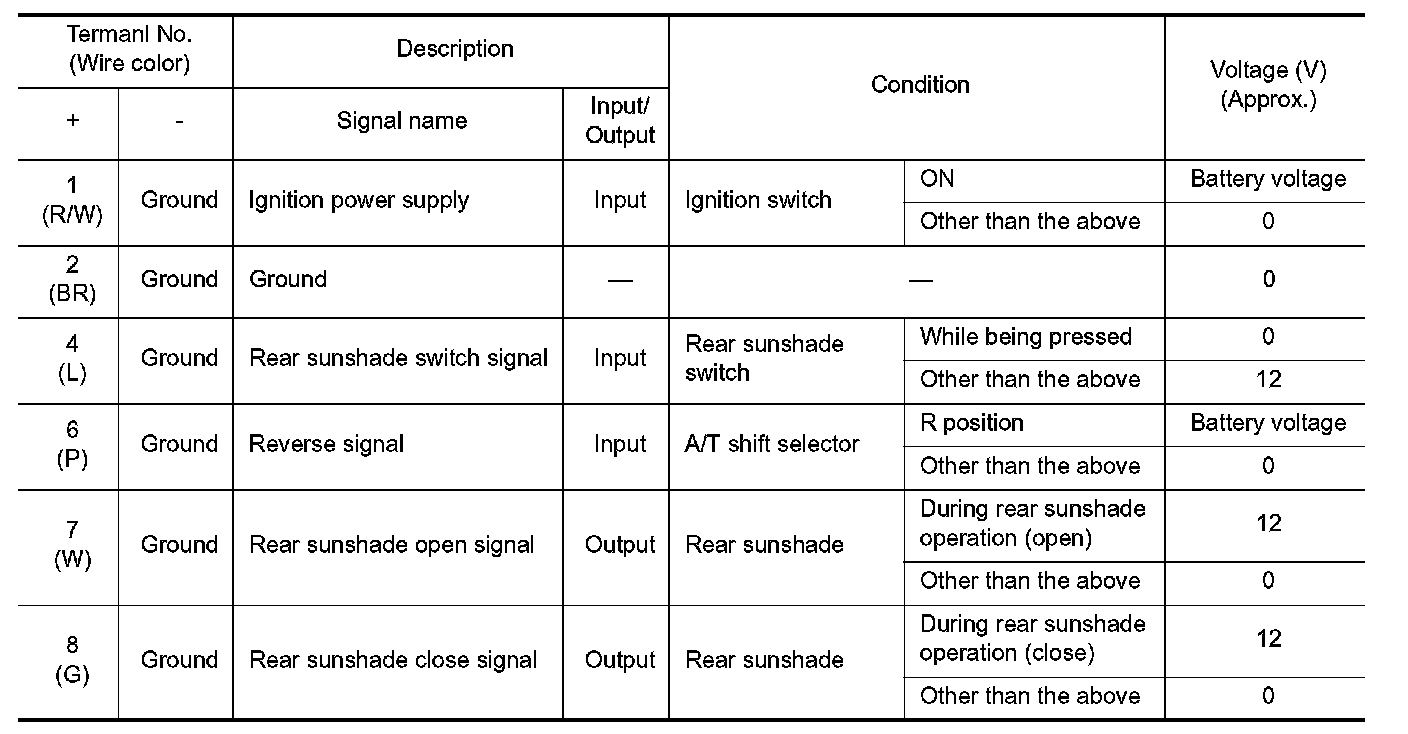

PHYSICAL VALUES
