A/t - Select Lever/Cable Adjustment Revisions

BULLETIN NUMBER:
SB98-05-L002

ISSUE DATE:
JULY 1998

GROUP:
TRANSMISSION

1998 RODEO (UE) AUTOMATIC TRANSMISSION (4L30-E)
WORKSHOP MANUAL REVISIONS

AFFECTED VEHICLES

1998 Rodeo (UE) 3.2L V6 models equipped with 4L30-E automatic transmission.

SERVICE INFORMATION

During the installation procedure of the select cable, the select lever needs to be set to "P" position before the inner cable is connected. Please see the attached pages for the revisions.

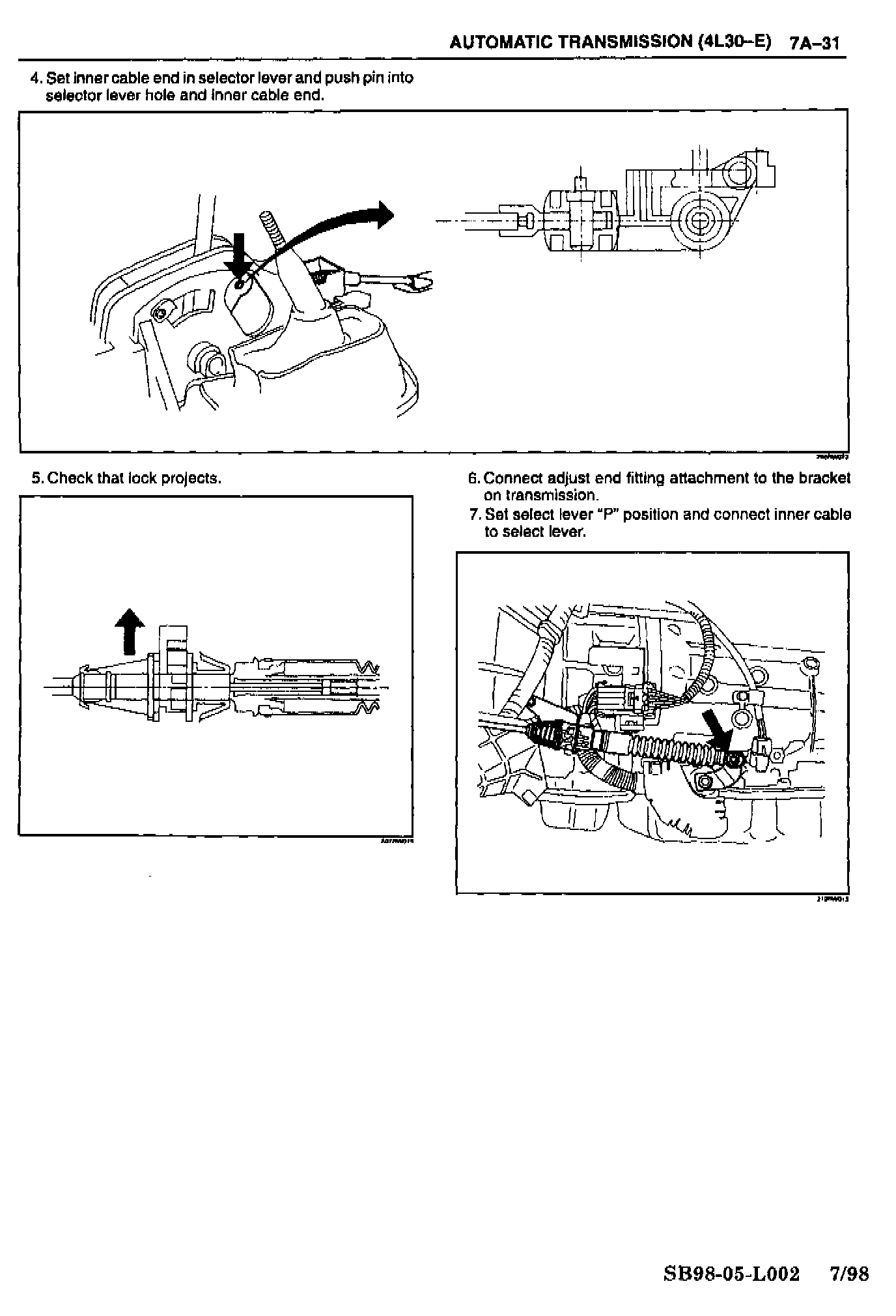

Manual Page No.

UE098-WSM-L01 7A-31





This service bulletin contains the revised page to the referenced Workshop Manual. Attach the enclosed page to the referenced Workshop Manual pages.
