Diagnosis By "ABS" Warning Light Illumination Pattern

Illumination Pattern

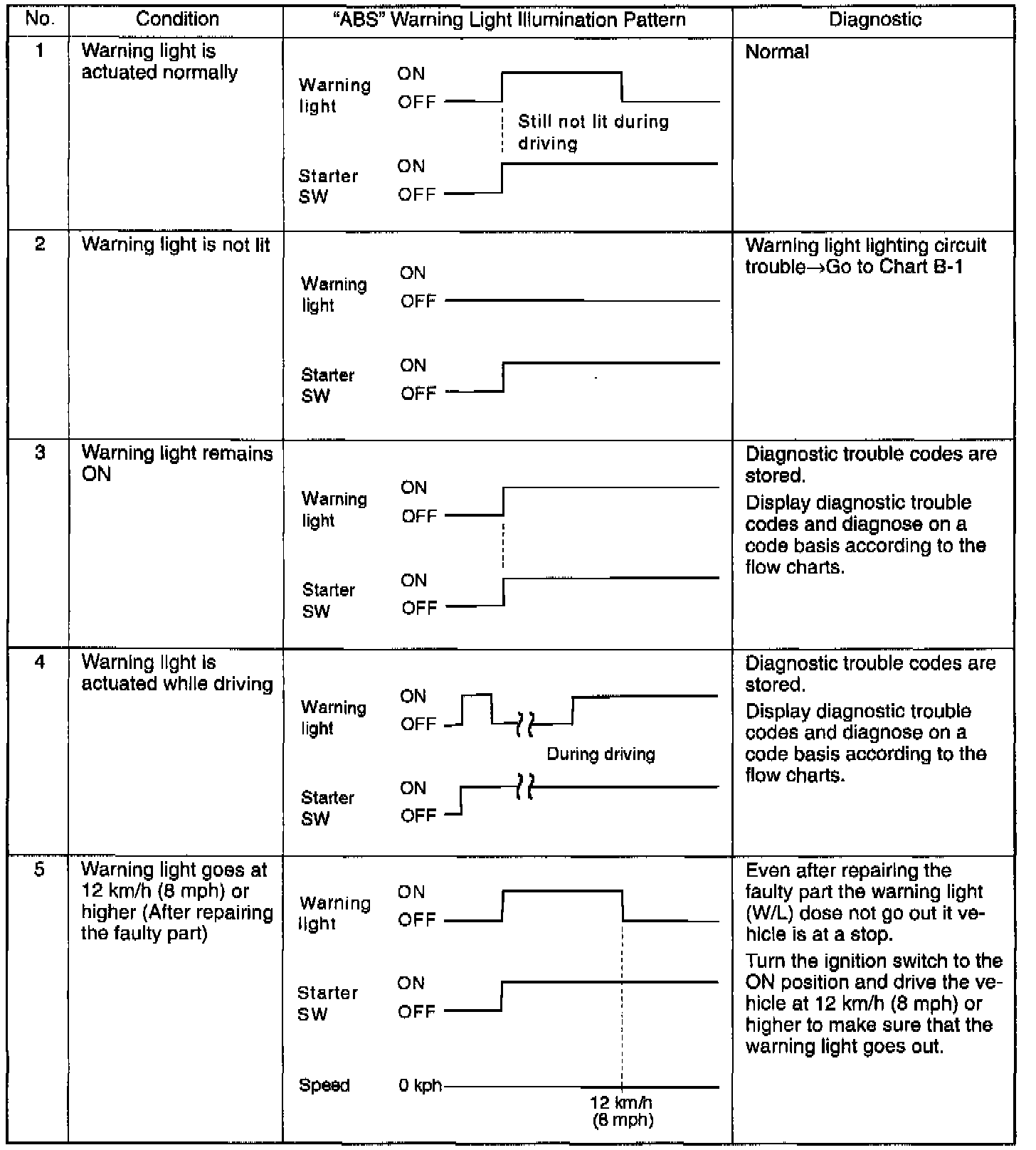

In the event that there is abnormality in the "ABS" warning light illumination pattern while the key is in the ON position or if the warning light is actuated during driving, trouble should be diagnosed on a illumination pattern basis as in the image.
