Windshield Washer Spray Nozzle: Adjustments

REAR WASHER NOZZLE ANGLE ADJUSTMENT

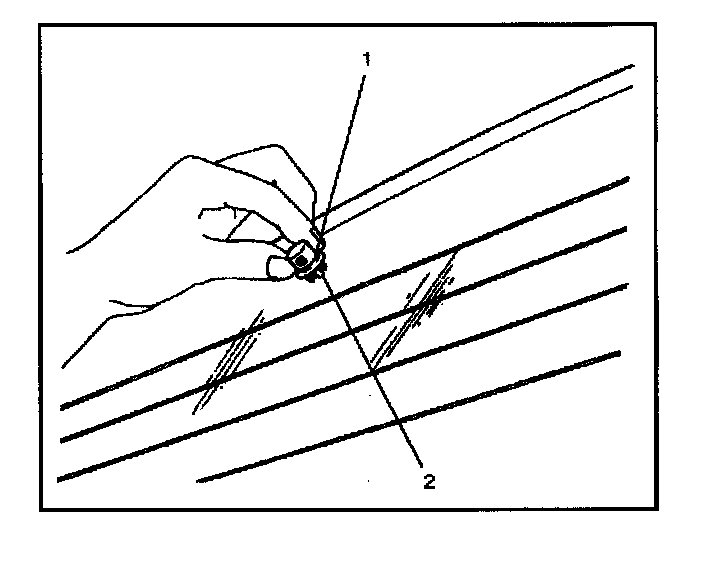

Loosen the lock nut (2) of the washer nozzle (1) to adjust the injection angle of the cleaning fluid, and then retighten the lock nut (2).
