Transfer Case Control Connector End Views
Transfer Case Control Connector End ViewsFront Axle Actuator:
Propshaft Speed Sensor - Front:
Propshaft Speed Sensor - Rear:

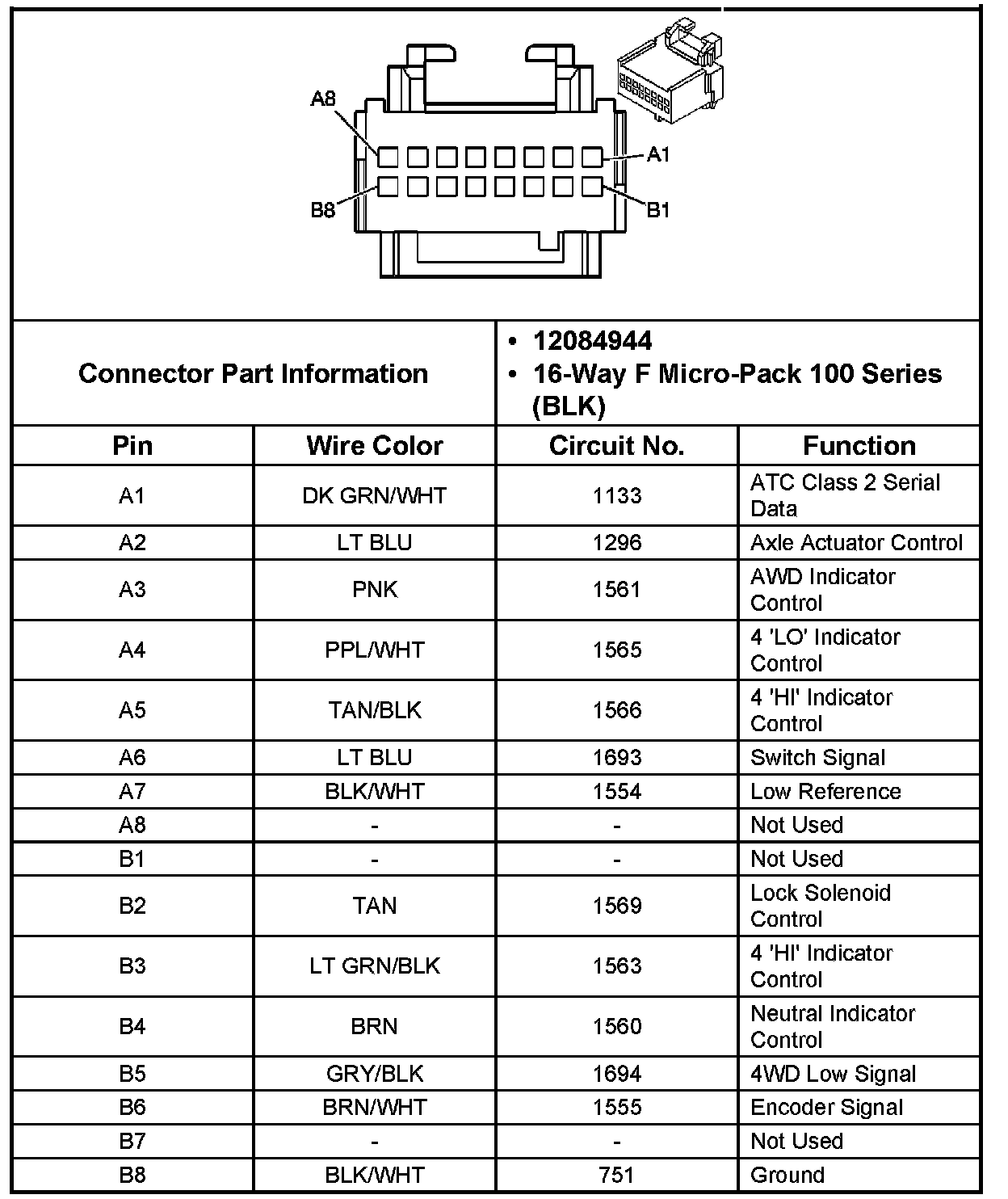

Transfer Case Shift Control Module C1:
Transfer Case Shift Control Module C2:
Transfer Case Shift Control Module C3:

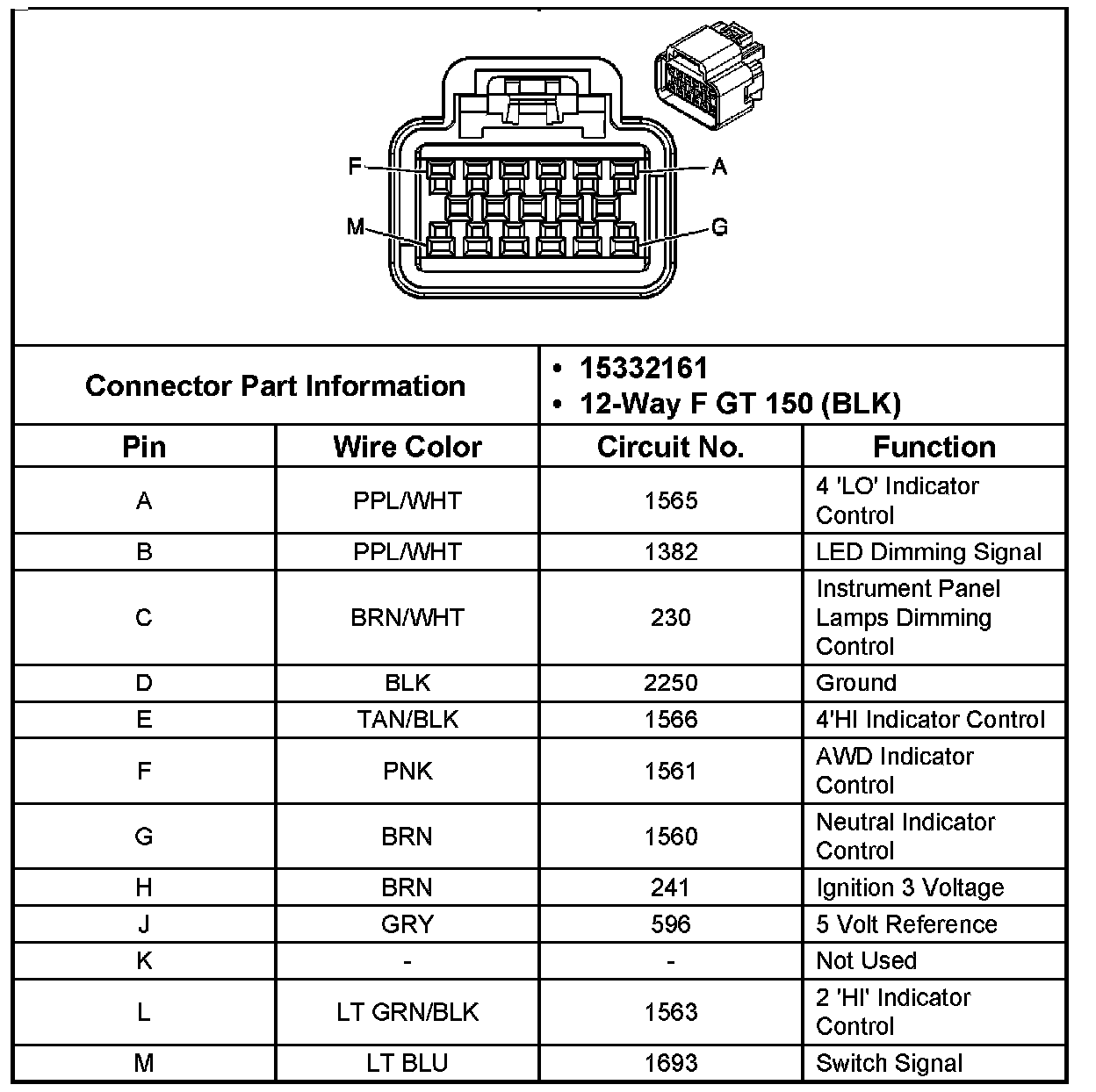

Transfer Case Shift Control Switch:
Transfer Case Encoder Motor:
