Computer Control Vacuum & Wiring Schematic--Turbo

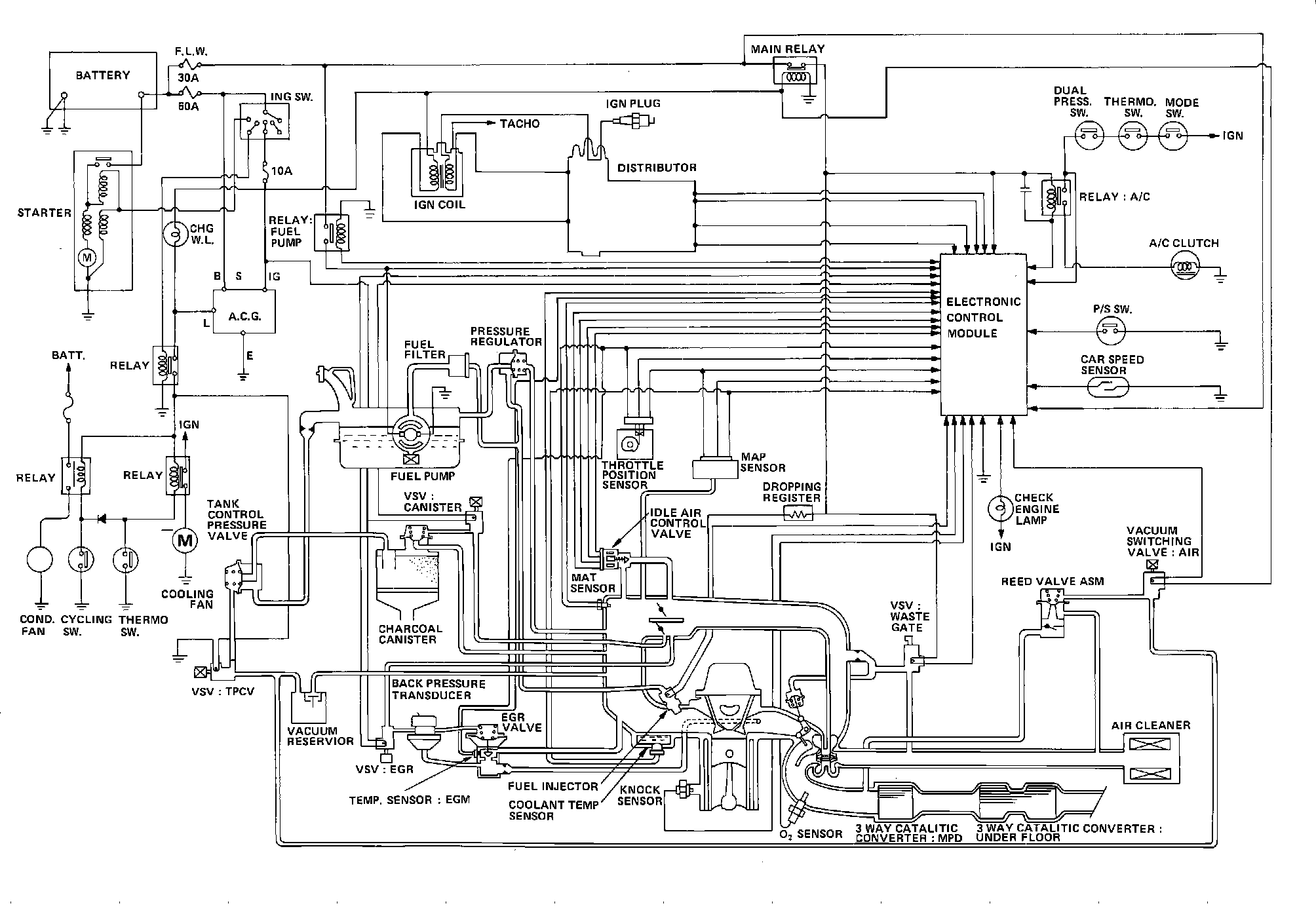

Fig. 110 Computer Control Vacuum & Wiring Diagram:
