Vacuum Hose Routing--Turbo
Vacuum Hose Routing--Turbo

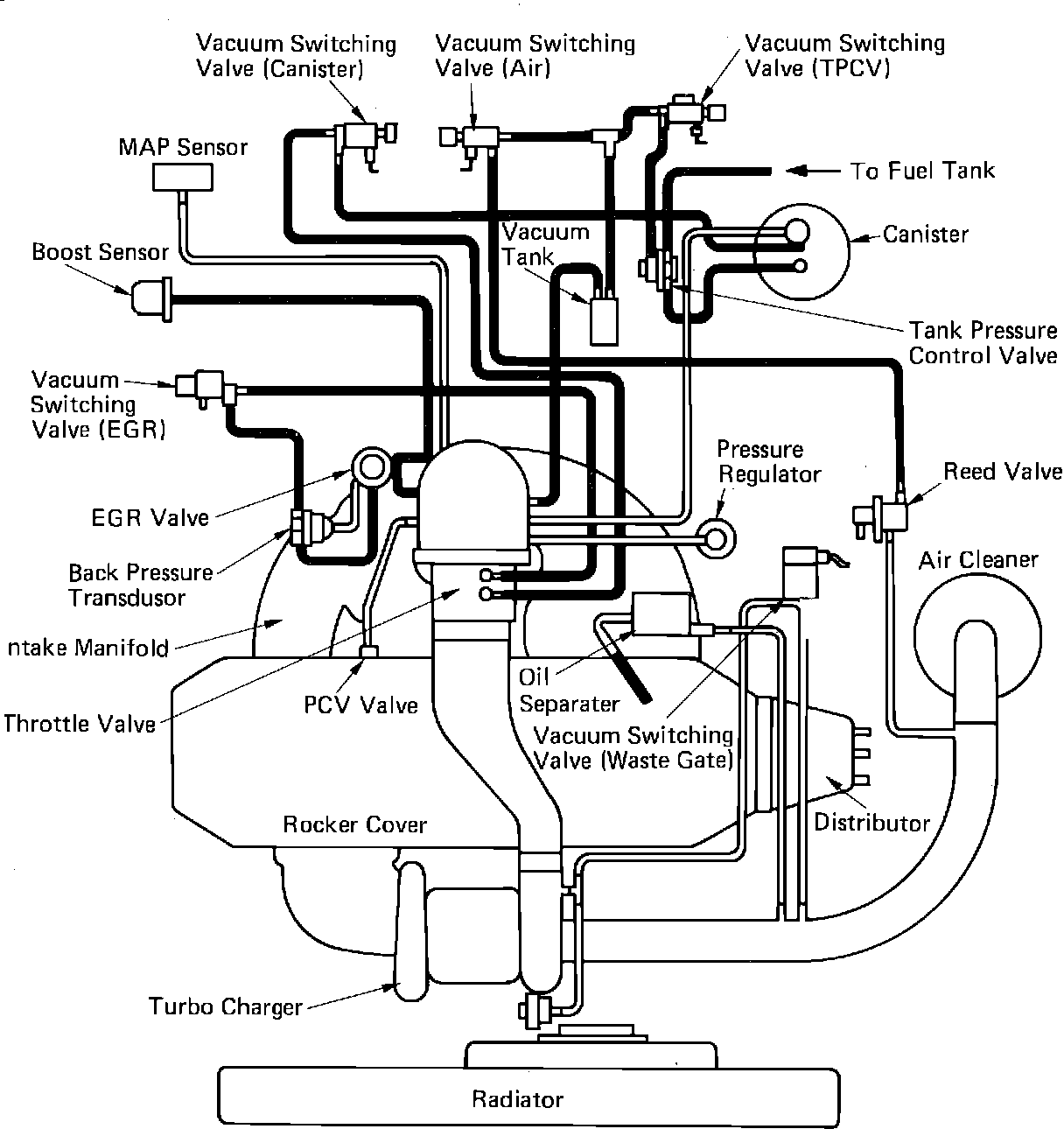

Fig. 104 Engine compartment reference diagram:
