Home
>>
Isuzu
>>
1992
>>
Impulse Hatchback L4-1809cc 1.8L DOHC (4XF1-W)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
System Relay
>>
Locations
System Relay: Locations

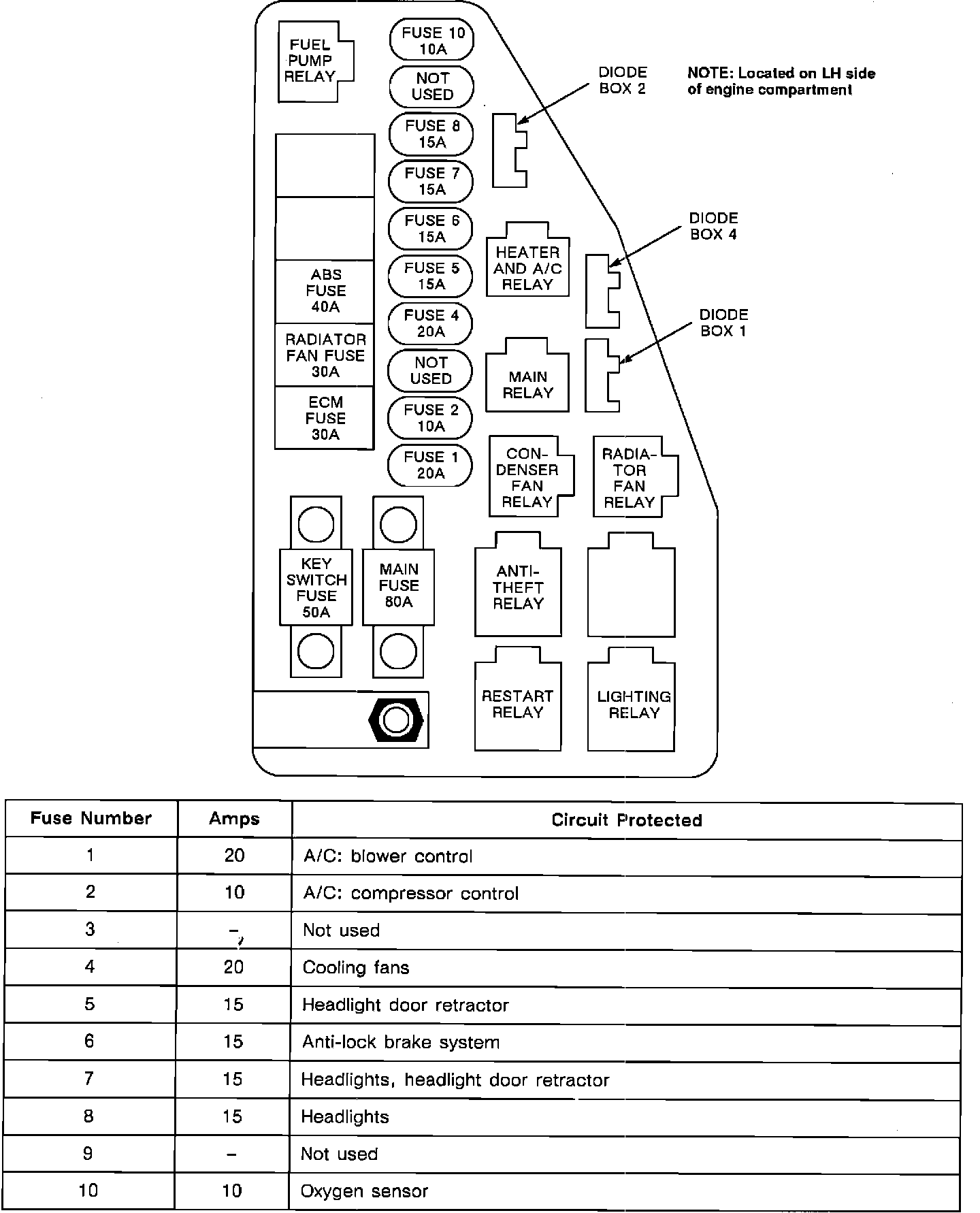

Fuse/Relay Box:
Fuse/Relay Box:
