Manual Supplement - Vehicle Model Information
86jaguar01DATE . . . , . . . . . . . . . APRIL, 1986
NUMBER . . . . . . . . . . . J86/19
MODEL XJ-S CABRIOLET
SUBJECT INTRODUCTION AND REPAIR
MANUAL SUPPLEMENT
KEY POINTS PROVIDING INFORMATION
ON OPERATION OF CABRIOLET TOP
The following information is provided to acquaint dealers with the XJ-SC Cabriolet model.
GENERAL NOTES
Child Safety
The information contained in the Owner's Handbook applies only to Coupe models and not Cabriolet models. Under no circumstances should people, especially babies or children, be allowed to travel in the luggage area behind the front seats.
Side Interior Lights
The two rear side interior lights have three positions:
Down - The light will be "ON" all the time irrespective of switch or door positions.
Center - The light will remain "OFF" at all times.
Up - The light will come "ON" when either door is opened.
Key Identification

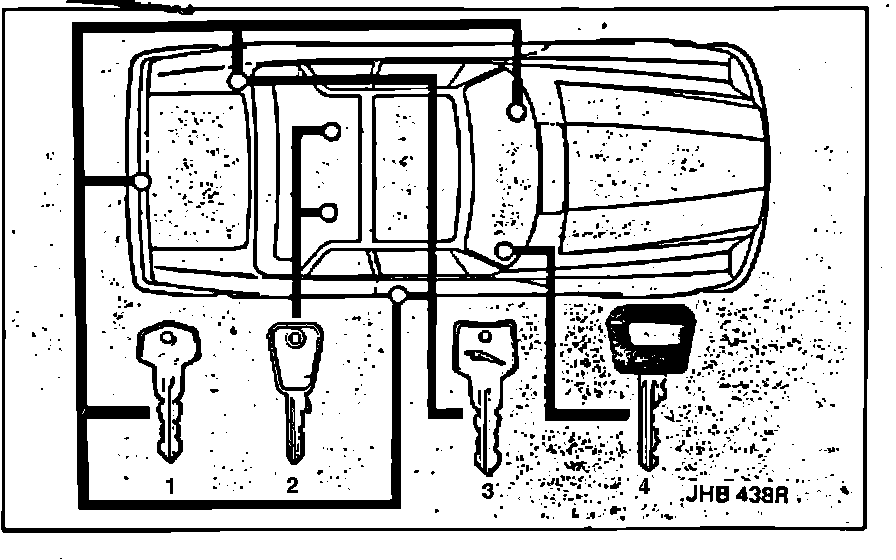

Four different types of keys are provided for locking the car as follows:
(1) The all steel domed headed key operates the door, luggage compartment, glove box and petrol filler cap locks. (JLM 476)
(2) The all steel flat headed key operates the locks of the stowage boxes, located behind the front seats. (17H2475)
(3) The all steel dished headed key operates the door and petrol filler cap locks. (JLM 744)
(4) The plastic headed single sided key operates the ignition - steering column lock. (37H 7193/J)
For security reasons, the ignition/steering column lock key number is printed on a self-adhesive label or etched on a disc attached to the key. It is NOT shown on the key or lock.
General Specification XJ-SC V12
Weights (Approximate)
Kerb - including options 4040 lb
GVW - gross vehicle weight 4460 lb
GCW - gross combination weight 7767 lb
FAW - maximum permitted axle load-front 2302 lb
RAWmaximum permitted axle load-rear 2158 lb
Bulbs
High mounted stop lamp - JLM 9600
Capacities
Fuel tank - Cabriolet - 21.6 U.S. Gallons
Enclosed with this bulletin are copies of a supplement to the body section of the XJ-S repair operation manual, AKM 3455, Edition 4.
