Shift Cable: Adjustments

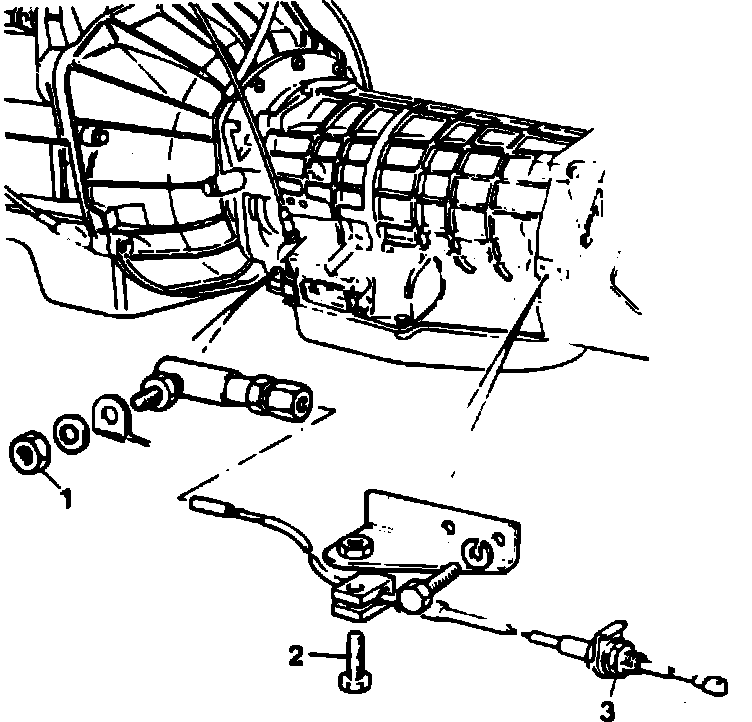

Fig. 3 Selector Cable Adjustment:

1. Position gear selector lever in Park position, then raise and support vehicle.
2. Remove nut securing selector cable to transmission selector lever, Fig. 3.
3. Disconnect cable from lever. Ensure selector lever is fully in Park position.
4. Loosen cable connector end locknut and position the cable connector end to the transmission selector lever, then install cable on lever and tighten locknut.
5. Tighten connector end locknut.
