Lateral Accelerometer: Service and Repair

Removal





1. Remove the center console. For additional information, refer to Body and Frame.





2. Remove the air duct.

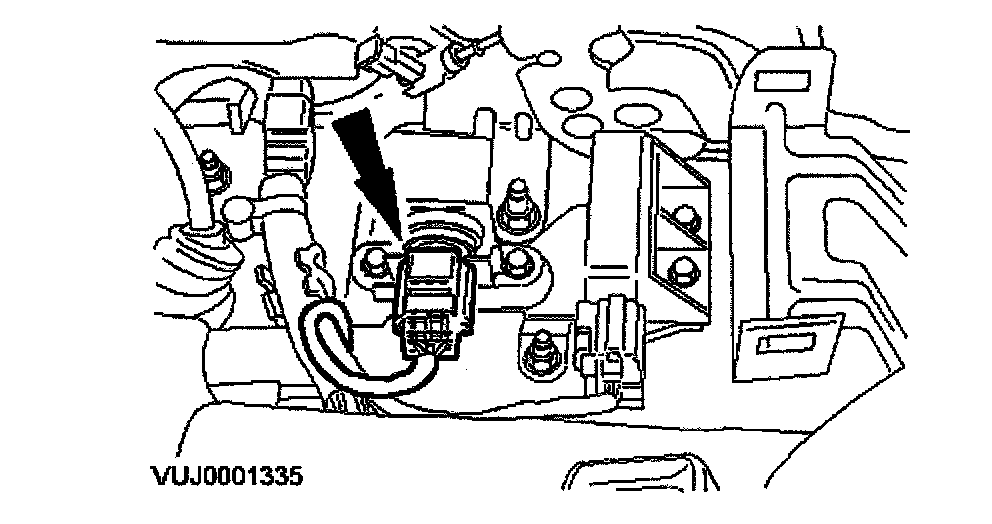

3. Disconnect the lateral accelerometer sensor electrical connector.

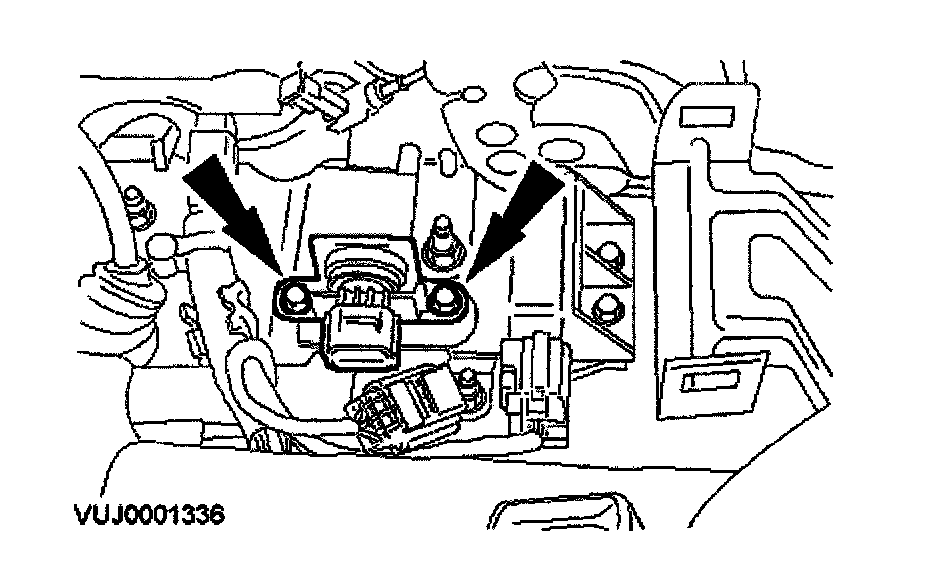

4. Remove the lateral accelerometer sensor.

Installation
1. To install, reverse the removal procedure.
