Flex Plate: Service and Repair

Removal





1. Remove the automatic transmission.

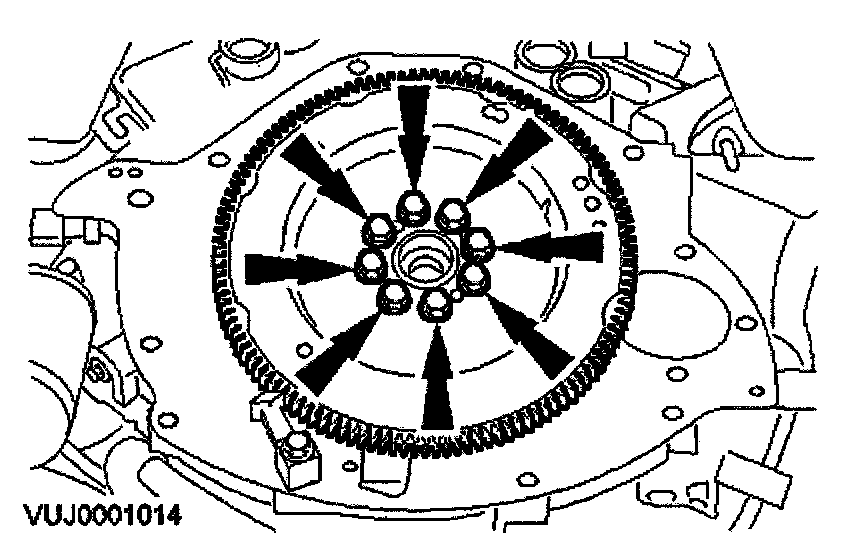

2. NOTE: Prevent the flexplate from rotating.

Remove the flexplate.

Installation





1. NOTE: Make sure the crankshaft and flexplate mating faces are clean before installation.

NOTE: The flexplate will only locate in one position.

NOTE: Tighten the retaining bolts working diagonally.

Install the flexplate.
^ Prevent the flexplate from rotating.
2. Install the automatic transmission.
