Flywheel: Service and Repair

Removal





1. Remove the clutch disc and pressure plate. For additional information, refer to Clutch M/T.

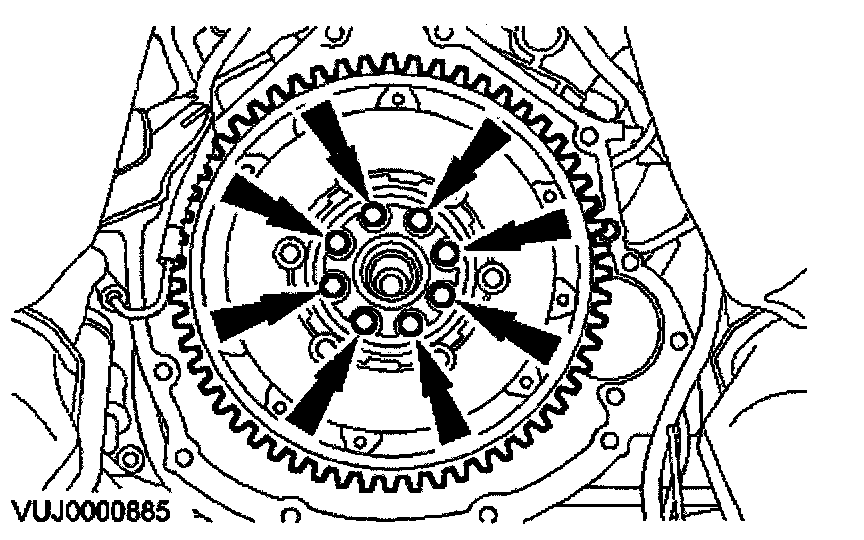

2. NOTE: Prevent the flywheel from rotating.

Remove the flywheel.

Installation

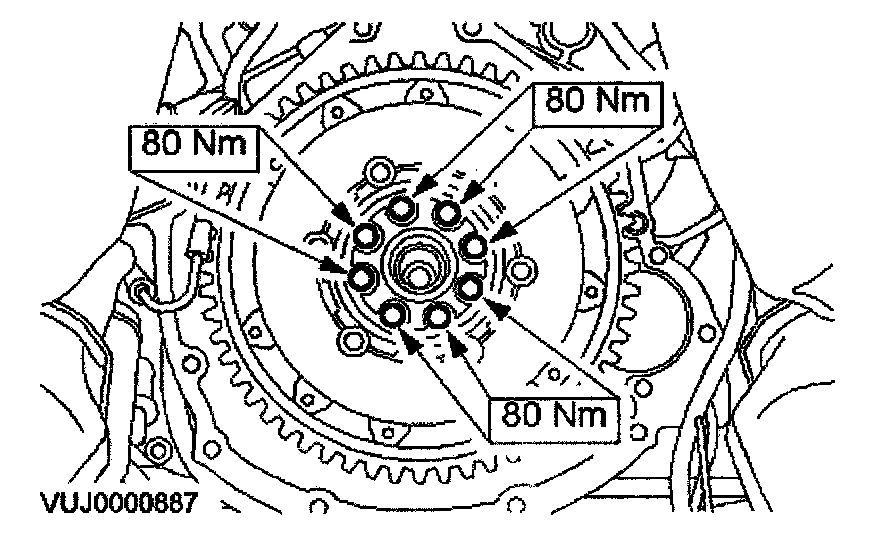

1. NOTE: Make sure the crankshaft and flywheel mating faces are clean before installation.

NOTE: The flywheel will only locate in one position.

NOTE: Tighten the retaining bolts working diagonally.

Install the flywheel.
^ Prevent the flywheel from rotating.
2. Install the clutch disc and pressure plate. For additional information, refer to Clutch M/T.
