Cellular Phone Transceiver: Service and Repair

Transceiver Module

Removal
1. Disconnect the battery ground cable.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these electrical charges, damage may result.







2. Remove the luggage compartment floor covering.

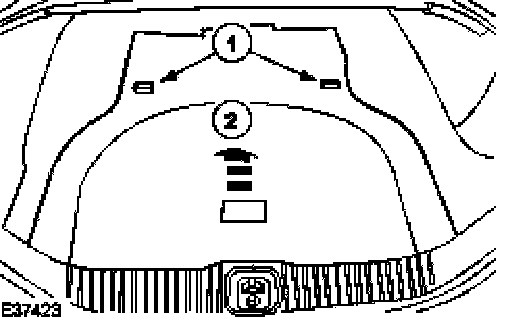

- Remove the luggage compartment floor covering screws.
- Remove the luggage compartment floor covering.

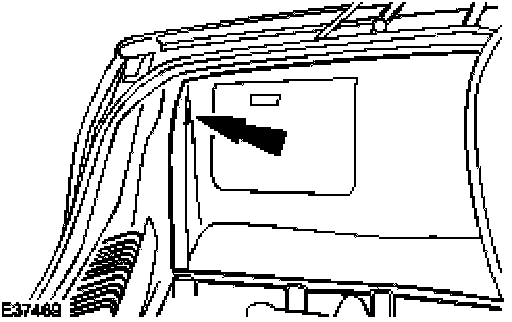

3. Remove the luggage compartment side trim panel.







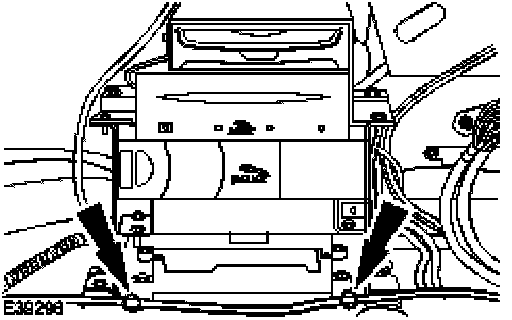

4. Detach the air pipe.







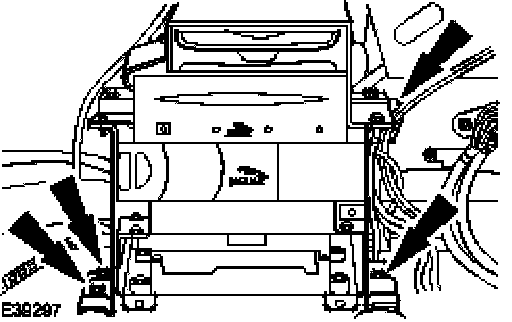

5. Detach the module retaining bracket.







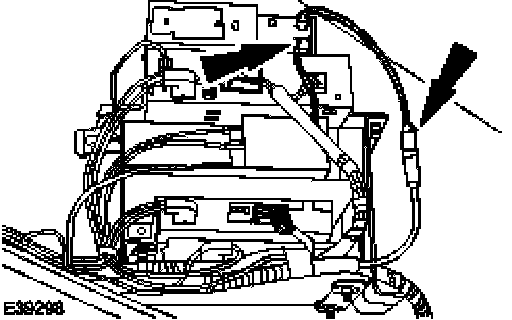

6. Disconnect the digital versatile disc (DVD) electrical connectors.







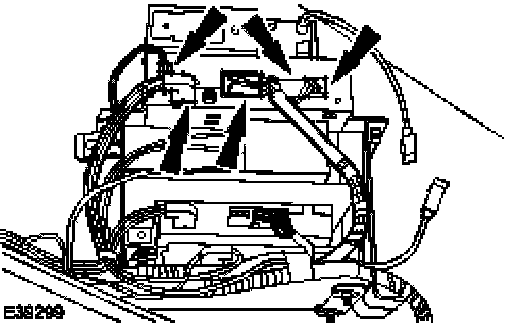

7. Disconnect the navigation system module electrical connectors and fibre optic connector.







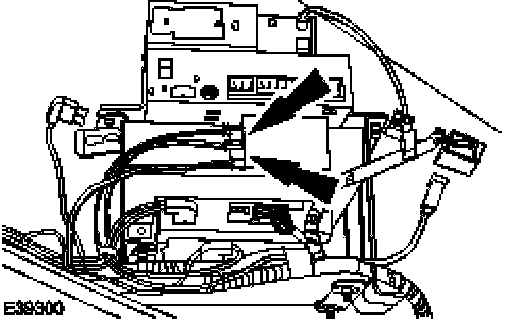

8. Disconnect the compact disc changer electrical connectors.







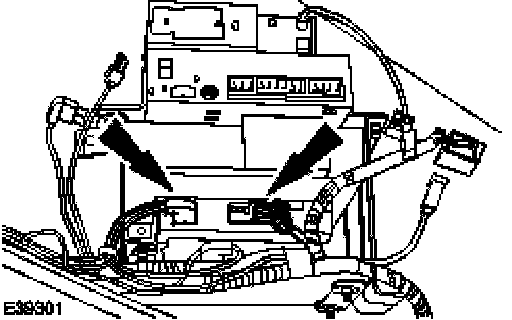

9. Disconnect the electrical connectors.







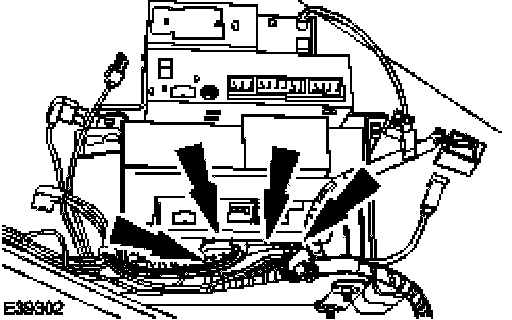

10. Disconnect the transceiver module electrical connectors.







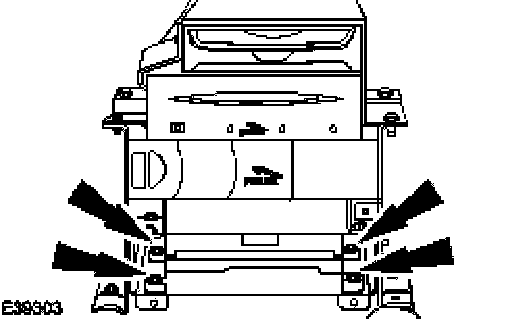

11. Remove the transceiver module.

Installation
1. To install, reverse the removal procedure.
