Center Registers

Center Registers

Removal

1. Remove the floor console.







2. Remove the instrument panel finish panel.

CAUTION: Make sure damage does not occur to the instrument panel finish panel.

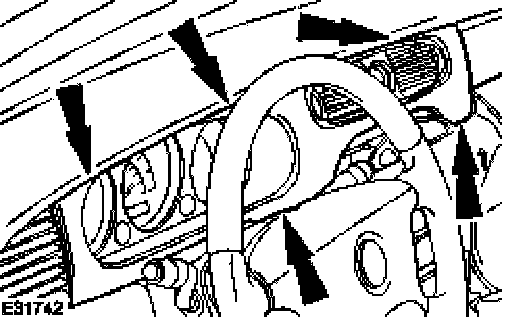

3. Remove the passenger air bag module finish panel.

CAUTION: Make sure damage does not occur to the air bag module finish panel.

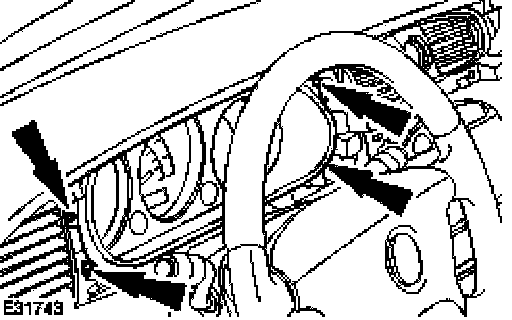

4. Remove the instrument cluster finish panel.

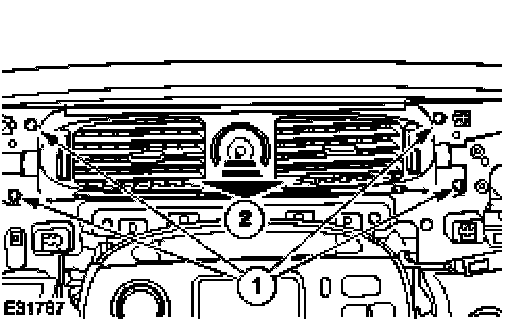

5. Detach the center registers.
- Remove the center registers retaining screws.
- Detach the center registers.

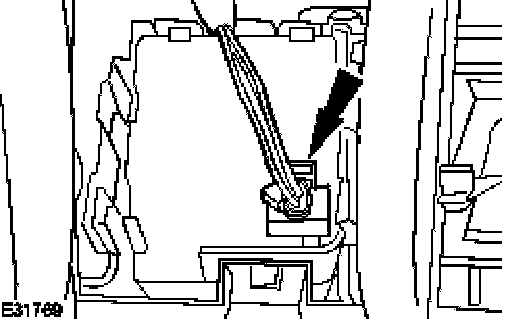

6. Disconnect the center register electrical connector.

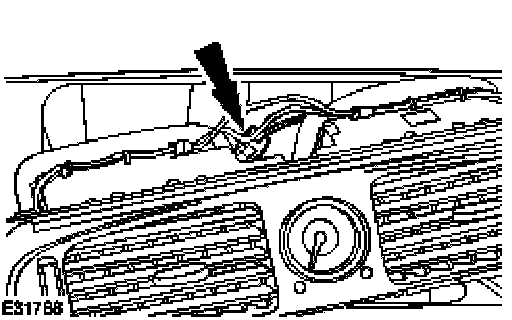

7. Disconnect the clock electrical connector.

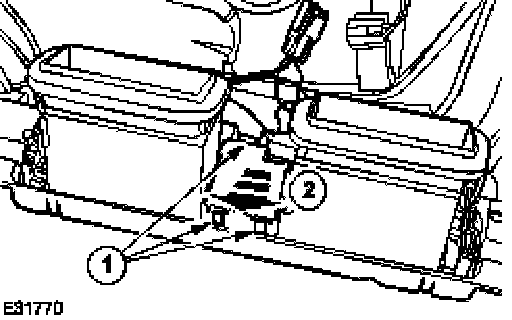

8. Remove the center registers.

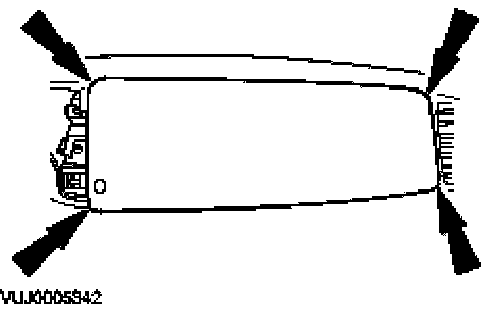

- Depress the clock retaining tangs.
- Remove the clock.
- Remove the center registers.

Installation
1. To install, reverse the removal procedure.
