Canister Purge Control Valve: Service and Repair

Evaporative Emission Canister Purge Valve

Removal
1. Raise and support the vehicle.
2. Remove the left-hand front wheel and tire.
3. Remove the left-hand front fender splash shield.

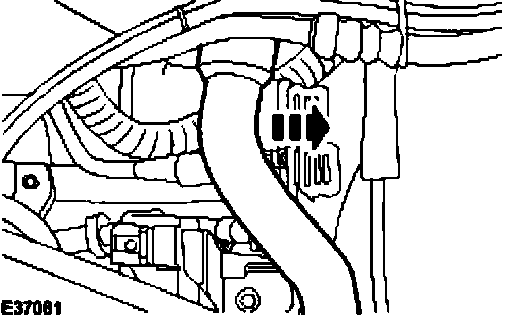

4. Remove the bulkhead drain tube.

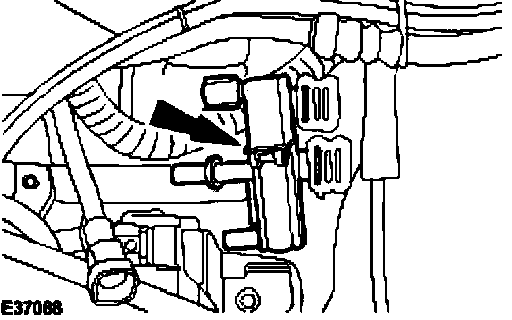

5. Disconnect the evaporative emission canister purge valve electrical connector.

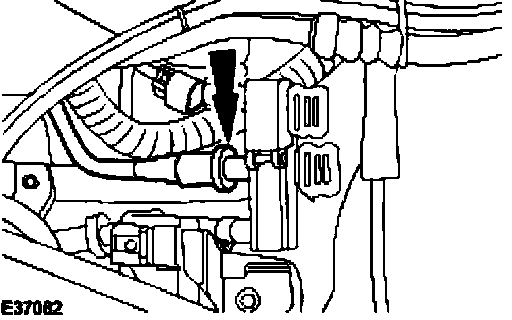

6. Disconnect the evaporative emission canister purge valve outlet hose.

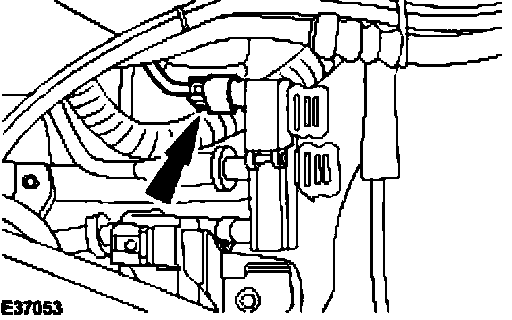

7. Disconnect the evaporative emission canister purge valve inlet hose.

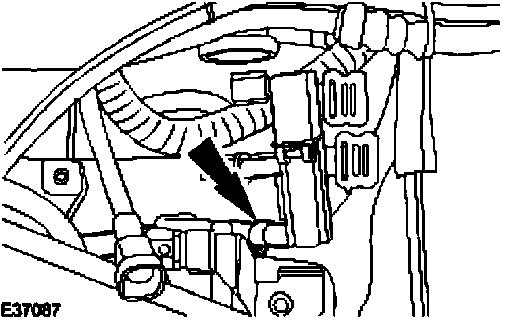

8. Remove the evaporative emission canister purge valve.

Installation
1. To install, reverse the removal procedure.
