Center Registers

Register

Removal

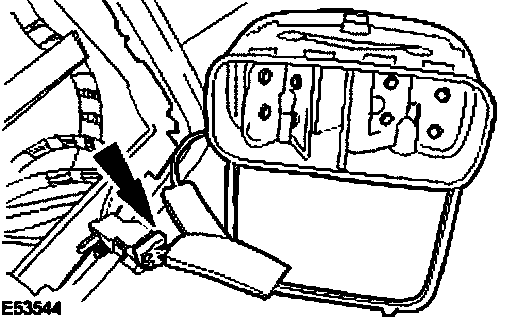

1. Remove the auxiliary climate control assembly.

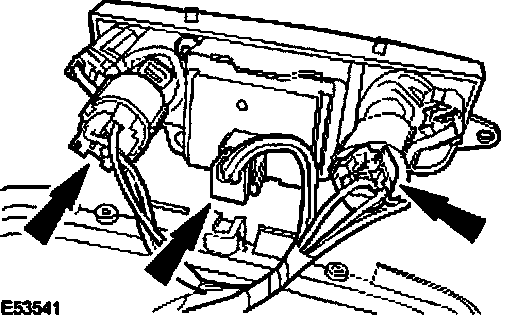

2. Remove the rear heated seat switch and cigar lighter assembly.
- Disconnect the electrical connectors.

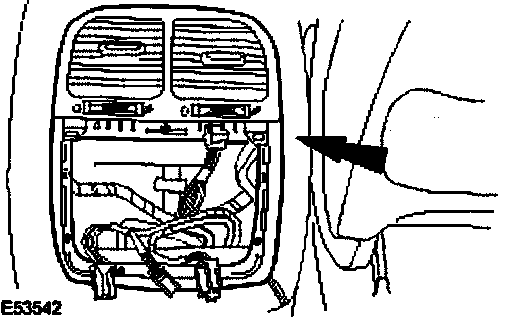

3. Detach the register.

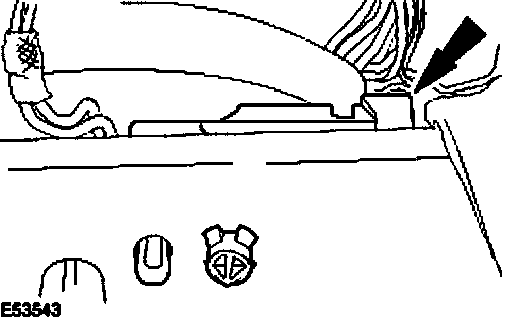

4. Detach the register electrical connector.







5. Remove the register.
- Disconnect the electrical connector.







Installation
1. To install, reverse the removal procedure.
