Passenger Side Register

Passenger Side Register

Removal

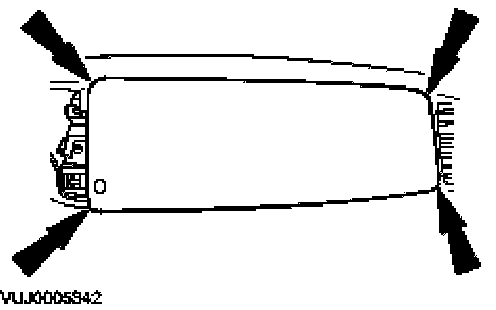

1. Remove the passenger air bag module finish panel.

CAUTION: Make sure damage does not occur to the air bag module finish panel.

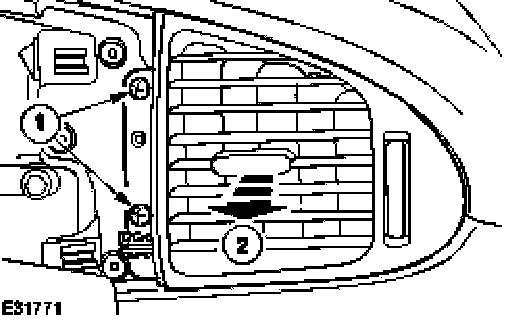

2. Detach the passenger side register.
- Remove the passenger side register retaining screws
- Detach the passenger side register.







3. Remove the passenger side register.

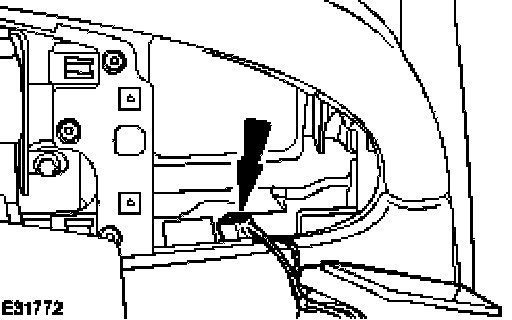

- Disconnect the passenger side register electrical connector.

Installation
1. To install, reverse the removal procedure.
