Fuel Injection Pump Pulley

Fuel Injection Pump Pulley





Removal
1. Remove and discard the fuel injection pump belt.
2. Remove the injection pump pulley retaining nut.

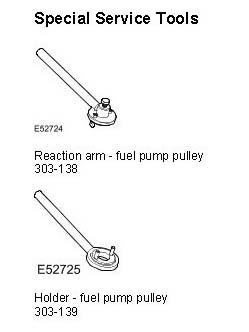

^ Using the special tool, retain the fuel injection pump pulley.
^ Remove the special tool.





3. Using the special tool, remove the fuel injection pump pulley.
^ Remove the special tool.





Installation
1. Install the fuel injection pump pulley.





2. Install the retaining nut.
^ Using the special tool, retain the fuel injection pump pulley.
^ Tighten to 50 Nm.





3. Install a new fuel injection pump belt.
