Overhead Console

Overhead Console (76.13.69)

Removal

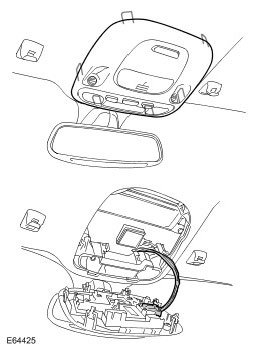

1. Remove the front overhead console.
- Release from the 6 clips.
- Disconnect the electrical connector.







Installation

1. Install the front overhead console.
- Connect the electrical connector.
- Secure in the clips.
