Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L SC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Parking Assist Control Module >> Locations

Parking Assist Control Module: Locations

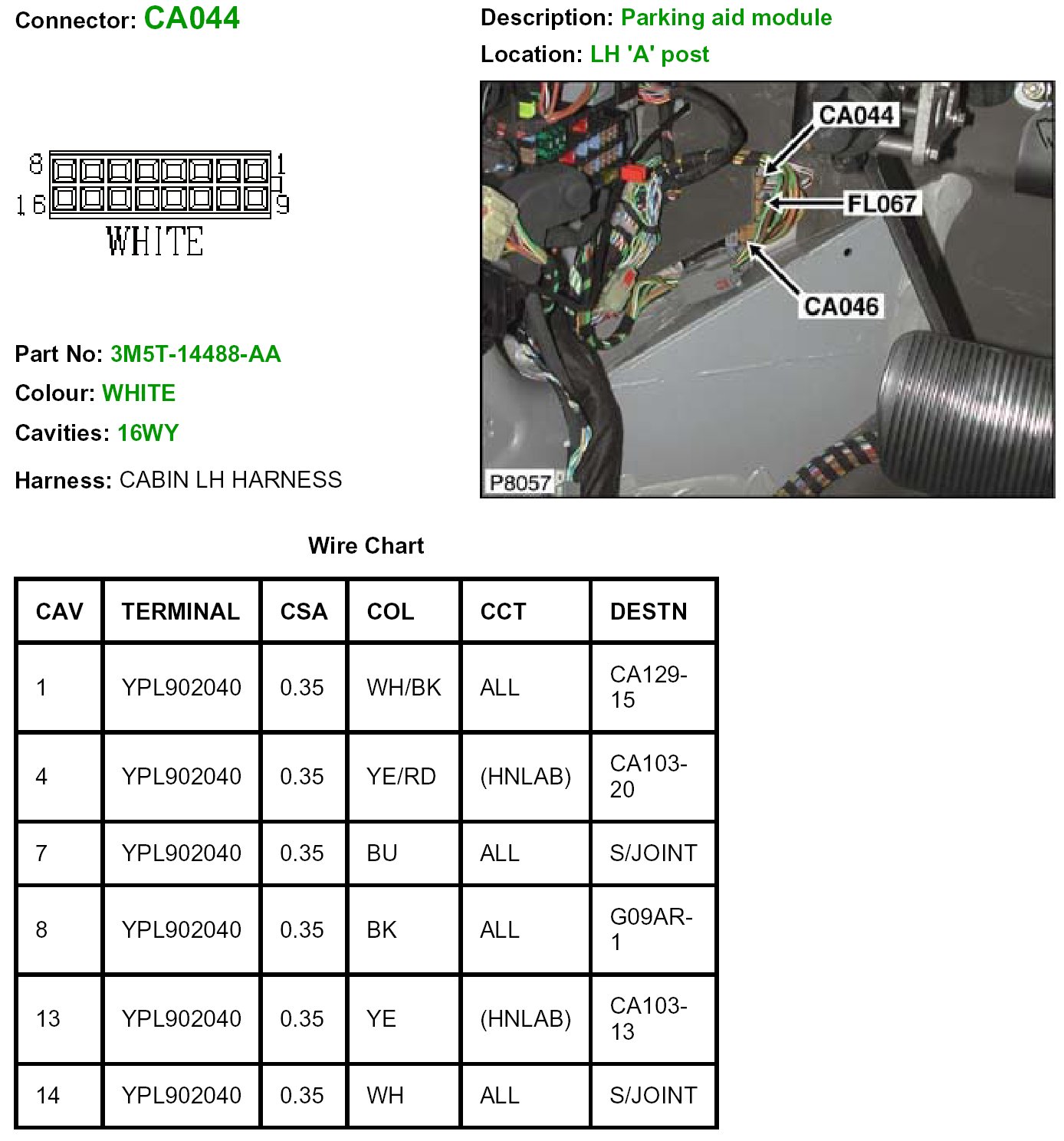

CA044:

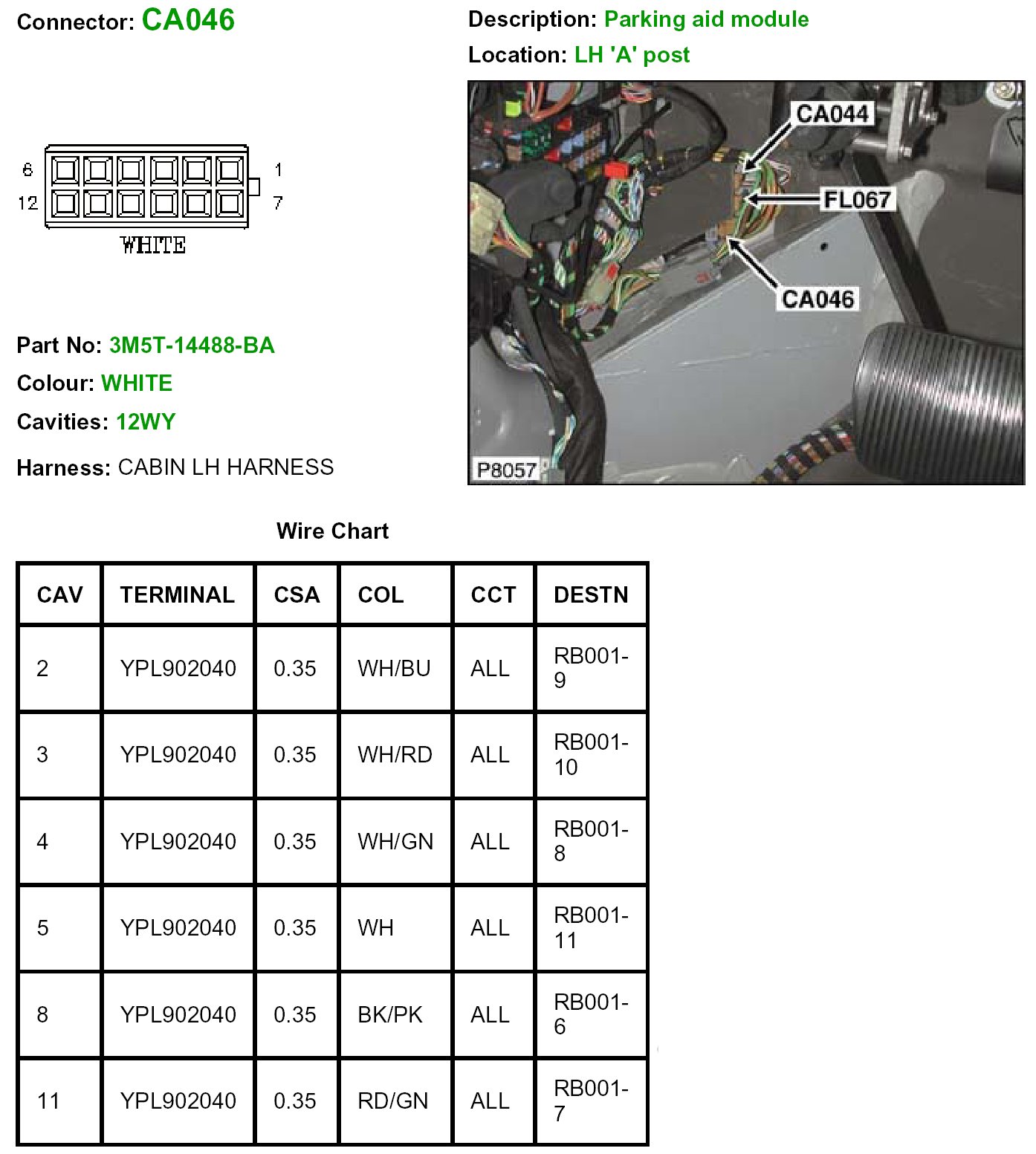

CA046:



FL067:
