Wiper Pivot: Service and Repair

Wiper Pivot Arm (84.15.03)

Removal

CAUTION: Always protect paintwork and glass when removing exterior components.

1. Open the hood.

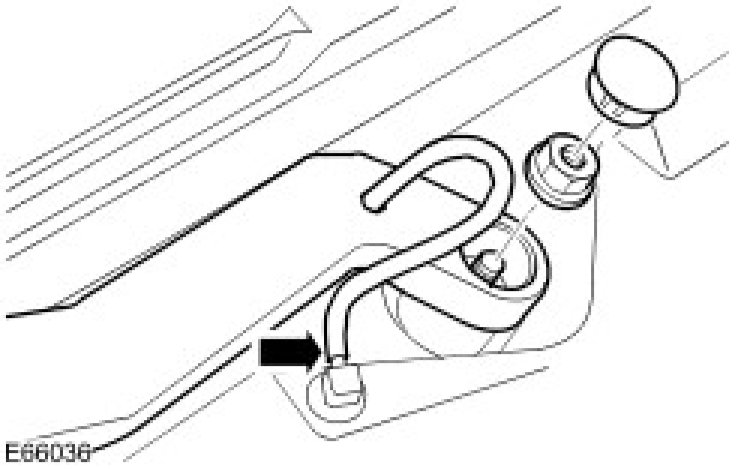

2. Remove the windshield wiper arms.
- Remove the 2 access plugs.
- Remove the 2 nuts.
- Disconnect the 2 washer jet hoses.

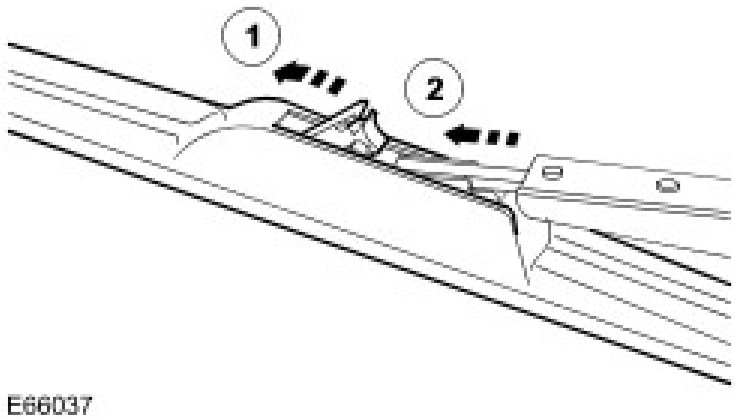

3. Remove the wiper blades.
- Release the 2 clips.

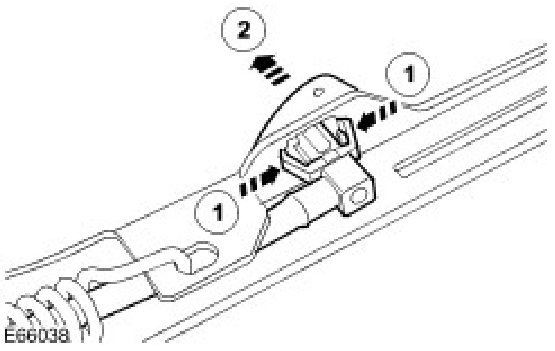

4. Remove the 2 washer jets.
- Carefully release the 4 clips.
- Disconnect the washer jet hoses..

NOTE: RH illustration shown, LH is similar







Installation
1. Install the washer jets.
- Connect the hoses.
- Carefully secure the clips.
2. Install the wiper blades.
- Position and secure the clips.
3. Install the windshield wiper arms.
- Tighten the nuts to 17 Nm (13 lb.ft).
- Install the covers.
- Connect the washer jet hoses.

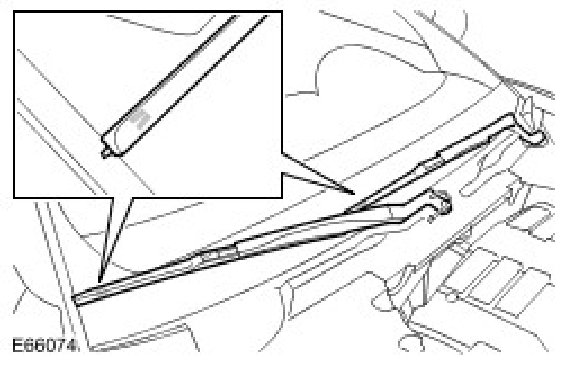

NOTE: Align the wipers between the marks on the windscreen.
