Power Seat Switch
>>
Locations
>>
Switch Pack-Seat-Driver
Switch Pack-Seat-Driver
Switch Pack-Seat-Driver

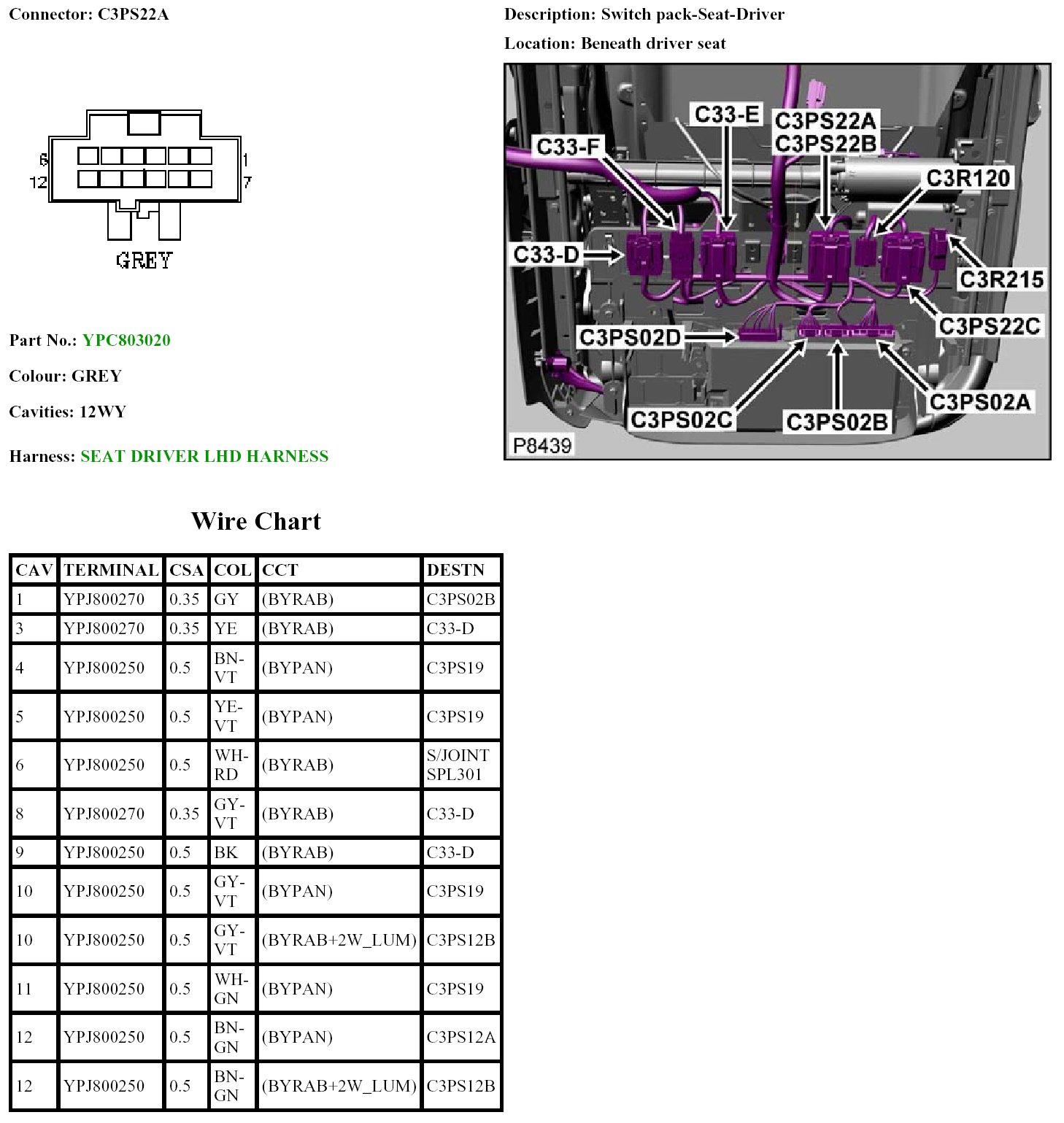

C3PS22A:

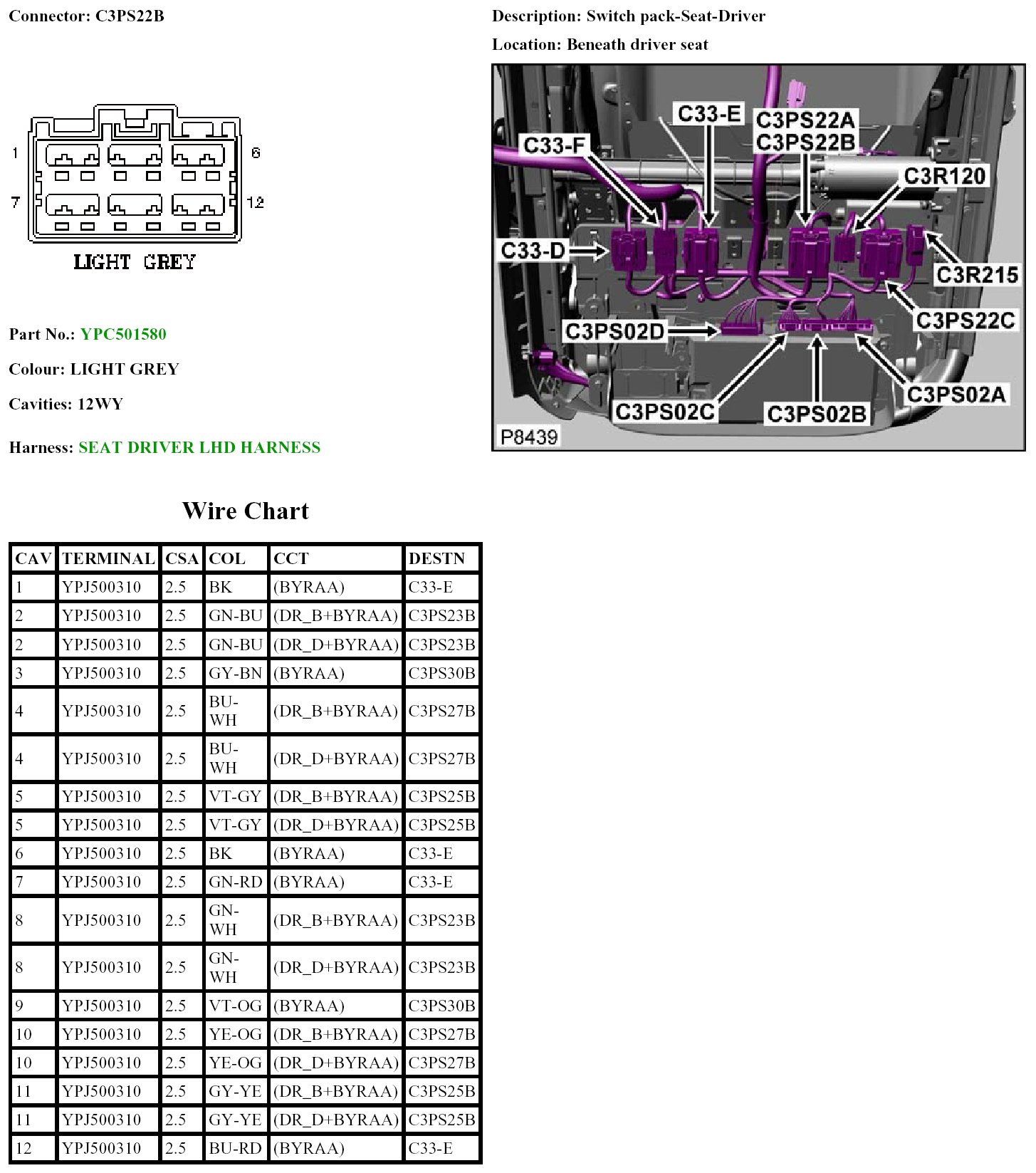

C3PS22B:

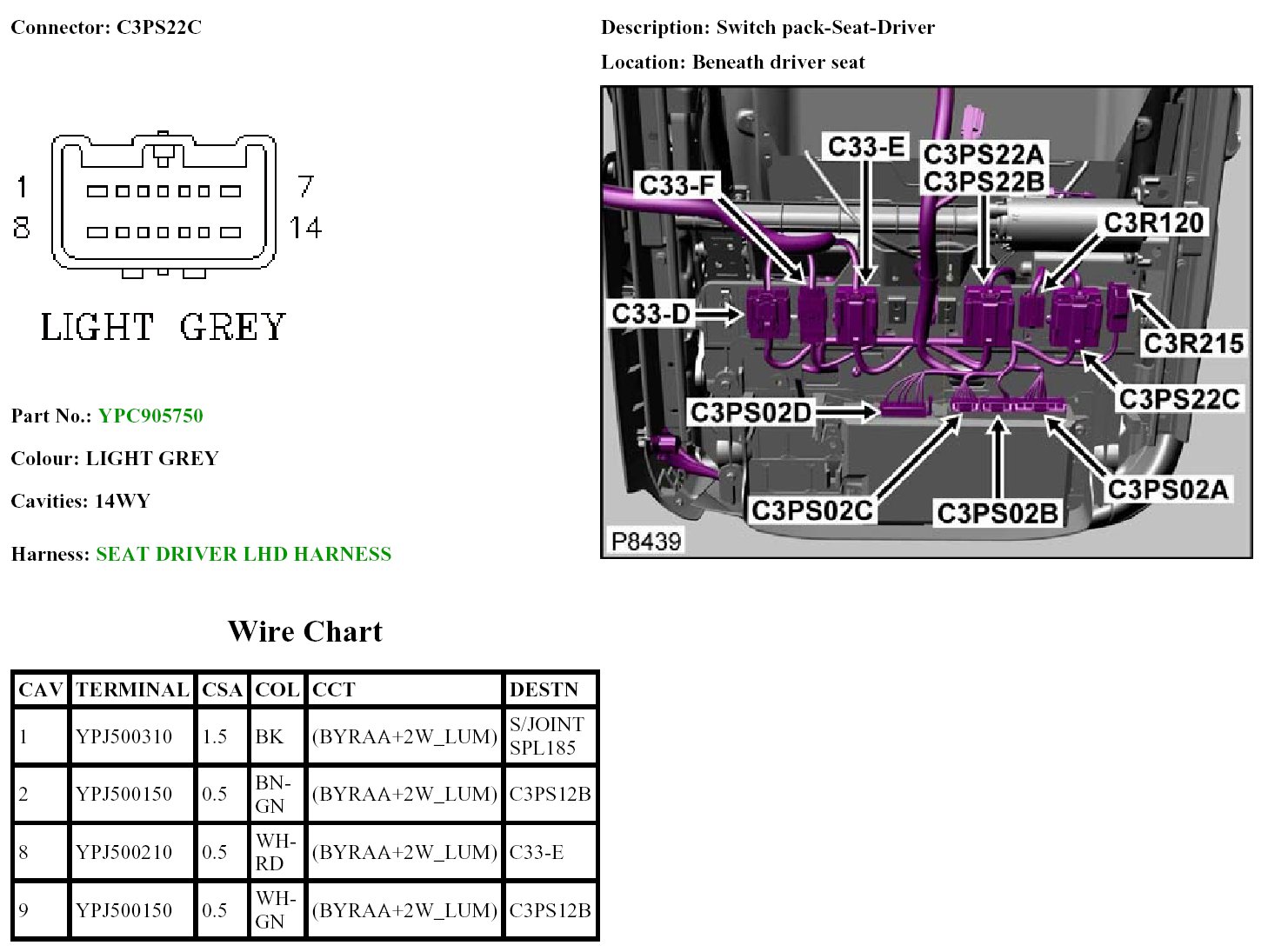

C3PS22C:
