Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2009
>>
XF (X250) V8-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>

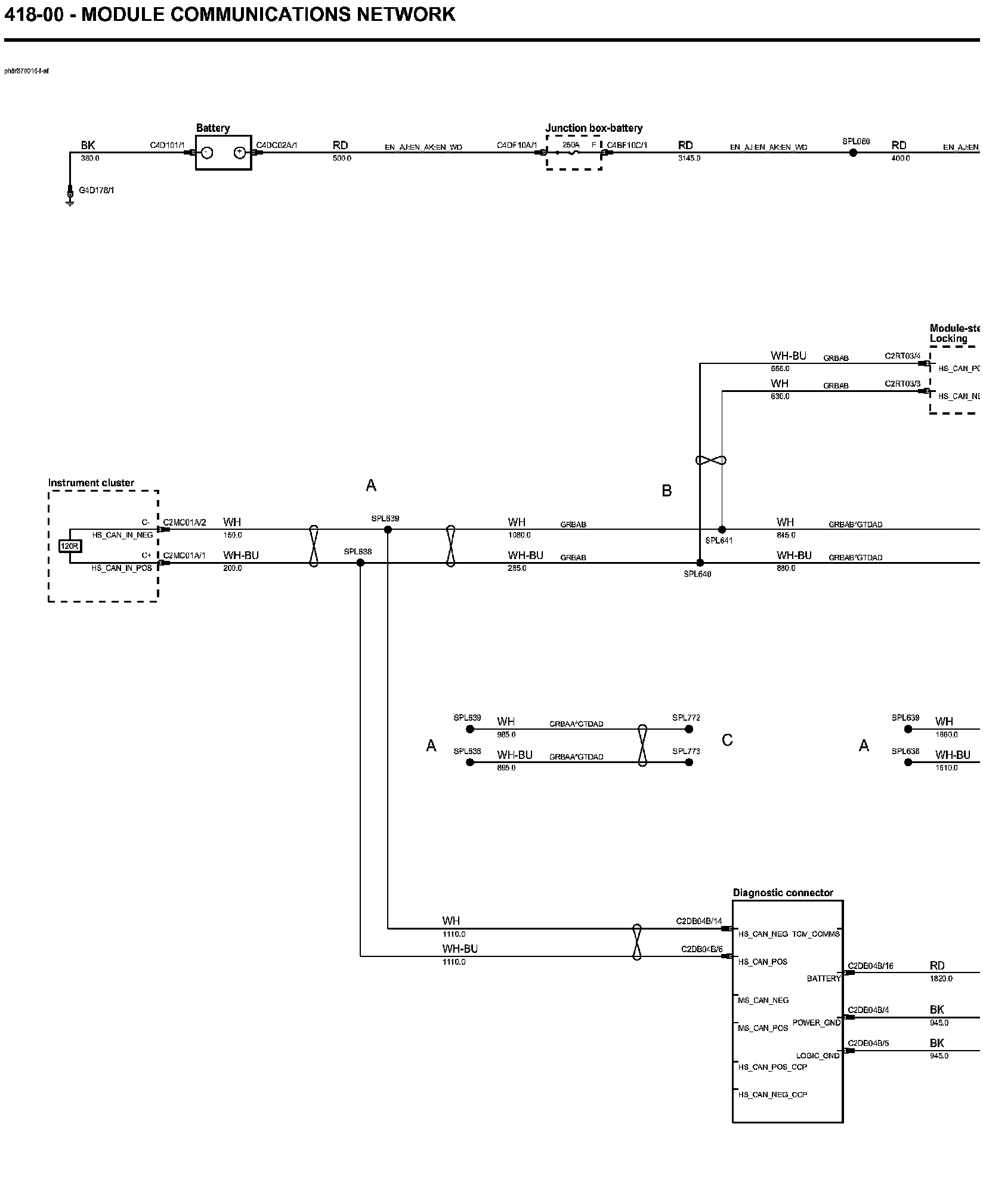

CAN Bus - High Speed - Part 1
CAN Bus - High Speed - Part 1
CAN Bus - High Speed - Part 1
��� :
