Radiator

Radiator

Removal

NOTE:
Removal steps in this procedure may contain installation details.
1 For additional information, refer to Battery Disconnect and Connect Battery Disconnect and Connect
2 For additional information, refer to Cooling System Draining, Filling and Bleeding Service and Repair
3 For additional information, refer to Cooling Fan Motor and Shroud Service and Repair
4 For additional information, refer to Air Cleaner

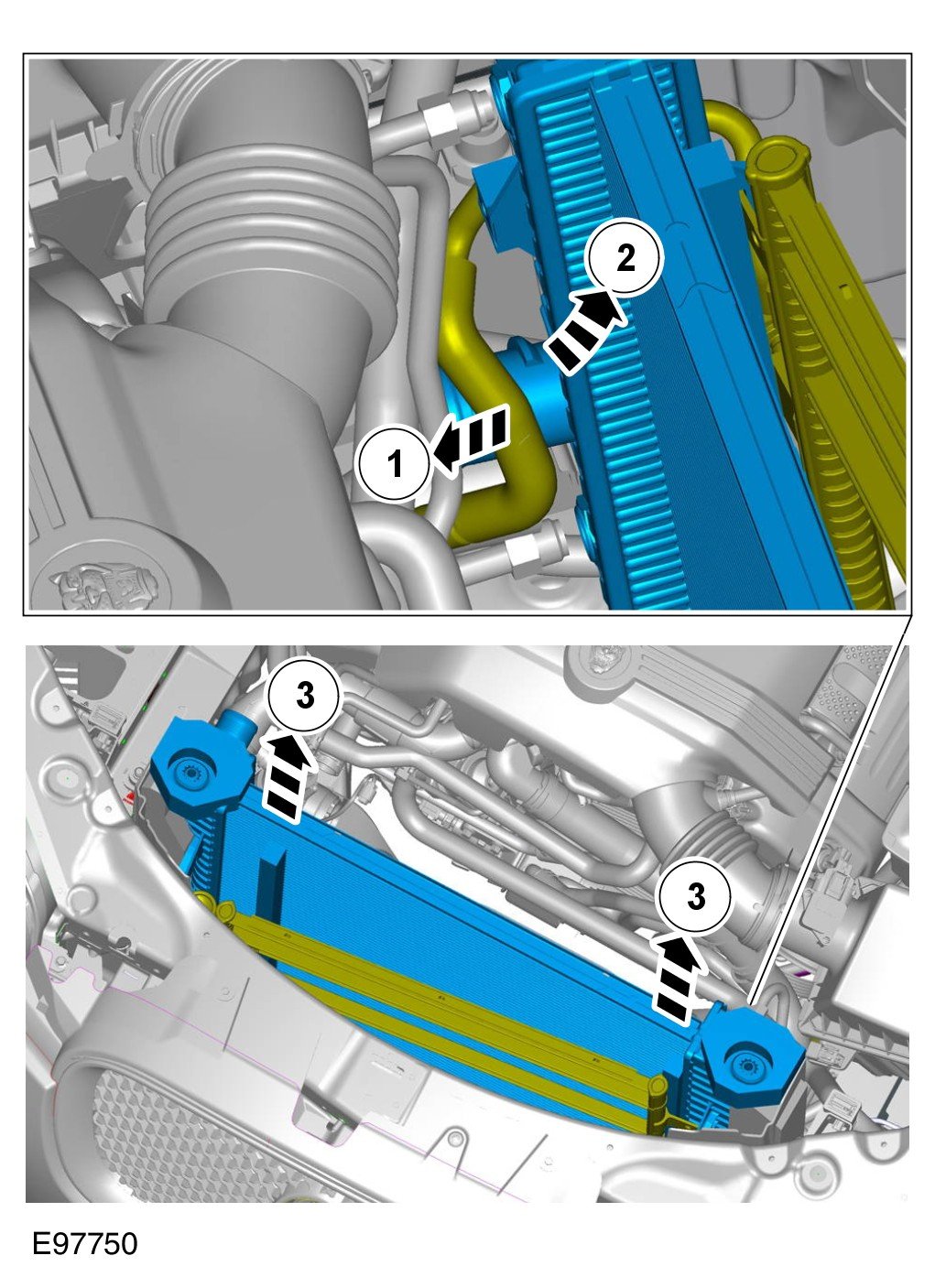

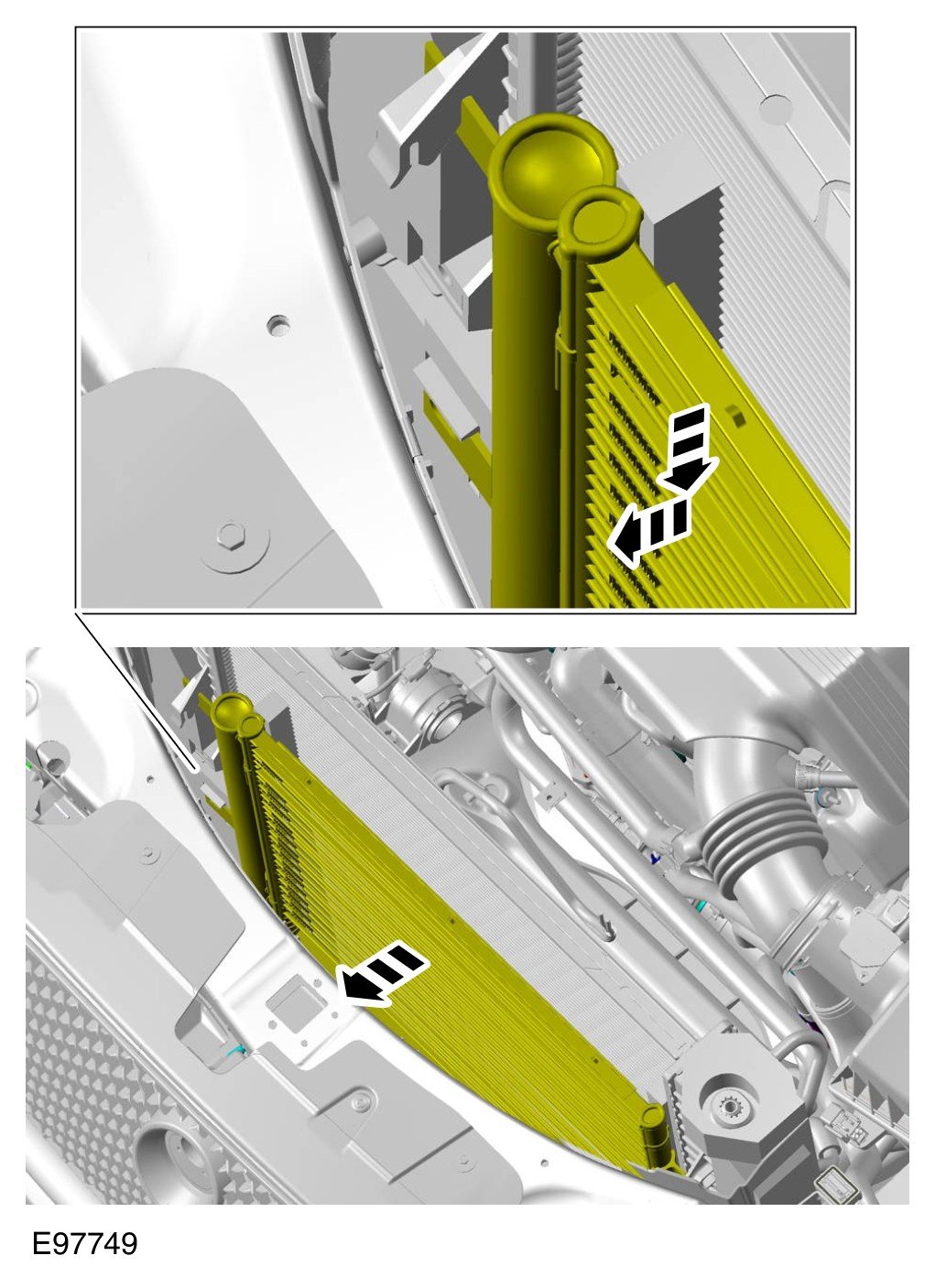

5 Raise and support the vehicle.

6
CAUTION: Be prepared to collect escaping oil.
CAUTION: Make sure that all openings are sealed. Use new blanking caps.

8
CAUTION: Be prepared to collect escaping oil.
CAUTION: Make sure that all openings are sealed. Use new blanking caps.

9 TORQUE: 7 Nm

10 TORQUE: 7 Nm

12
CAUTION: Be prepared to collect escaping coolant.
CAUTION: Be prepared to collect escaping oil.

Installation
1 To install, reverse the removal procedure.
2 Check and top-up the transmission fluid level. For additional information, refer to Transmission Fluid Level Check Transmission Fluid Level Check
