Impact Sensor
>>
Locations
>>

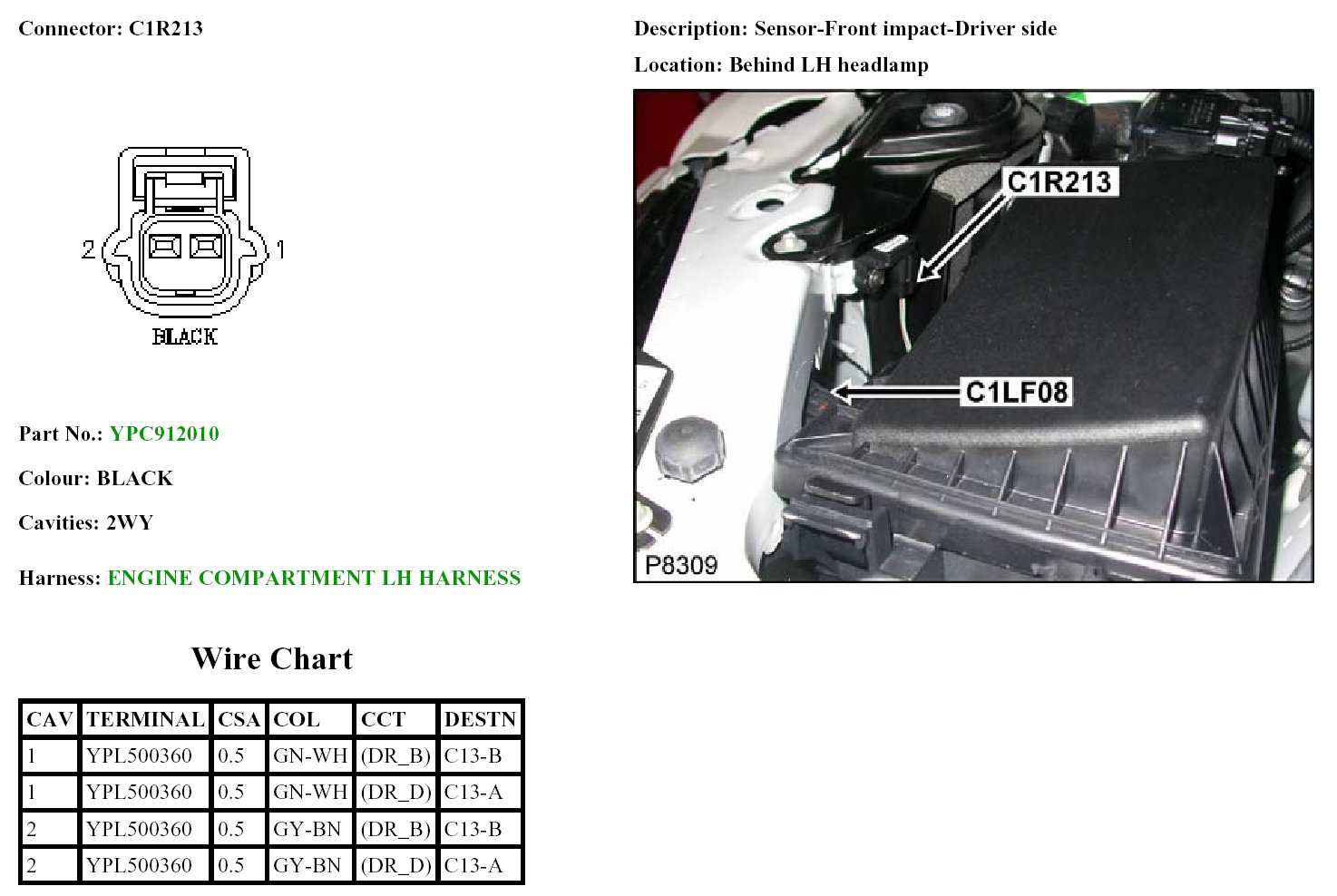

Sensor-Front Impact-Driver Side
Sensor-Front Impact-Driver Side
Sensor-Front Impact-Driver Side
C1R213:
