Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2009
>>
XF (X250) V8-4.2L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Impact Sensor
>>
Locations
>>

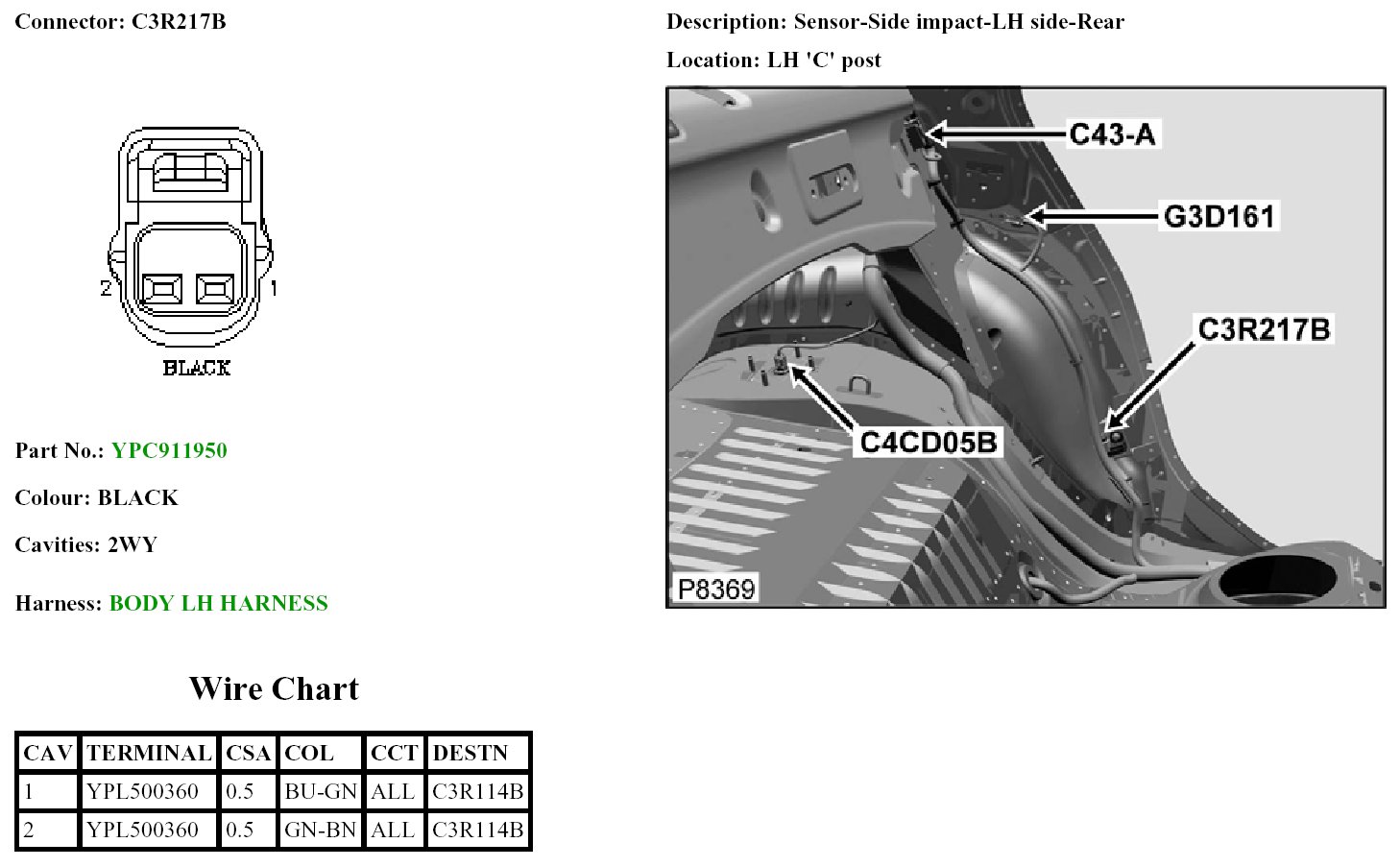

Sensor-Side Impact-LH Side-Rear
Sensor-Side Impact-LH Side-Rear
Sensor-Side Impact-LH Side-Rear
C3R217B:
