Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2009
>>
XF (X250) V8-4.2L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Seat Occupant Sensor
>>
Locations
>>

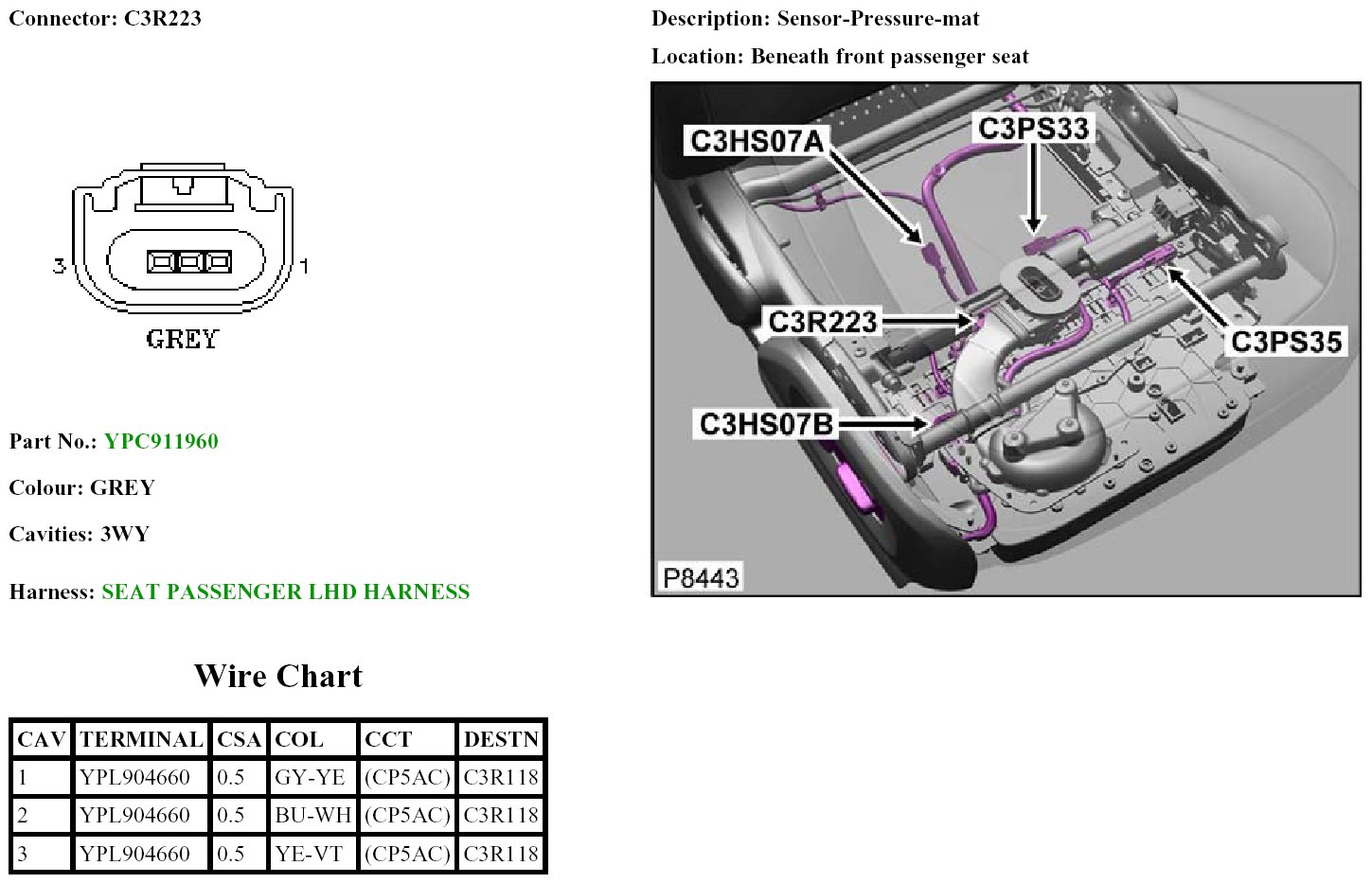

Sensor-Pressure-MAT
Sensor-Pressure-MAT
Sensor-Pressure-MAT
C3R223:
