Campaign - Rear Differential Replacement: Overview

NUMBER: UPS 2608-2b
(ISSUE 1)

MODEL: XF, XK

DATE: 13 NOV 2008

THIS UPDATE PRIOR TO SALE NOTICE IS VALID FOR SIX MONTHS

SECTION: 205

UPDATE PRIOR TO SALE: Rear Differential Contamination

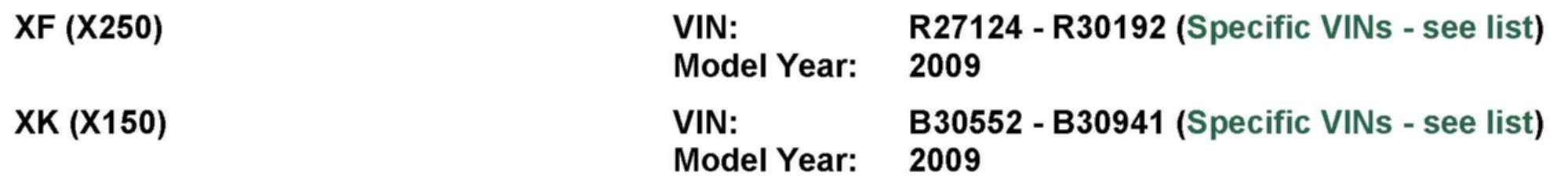

AFFECTED VEHICLE RANGE

CONDITION SUMMARY:

Situation:

As previously communicated in Service Administration Bulletin 3-248NAS, a number of rear differentials have been incorrectly supplied which may lead to premature wear of the differential pinion head and tail carrier bearings, resulting in an unacceptable differential noise and driveline vibration.

Action:

Dealers are required to HOLD the affected vehicles within your control and refrain from releasing the vehicles for onward distribution and sale pending completion of the rework action detailed in this Update Prior to Sale notice. These vehicles must not be released until replacement of the rear differential is completed. Any vehicle already delivered to a customer must be updated at the next service opportunity.

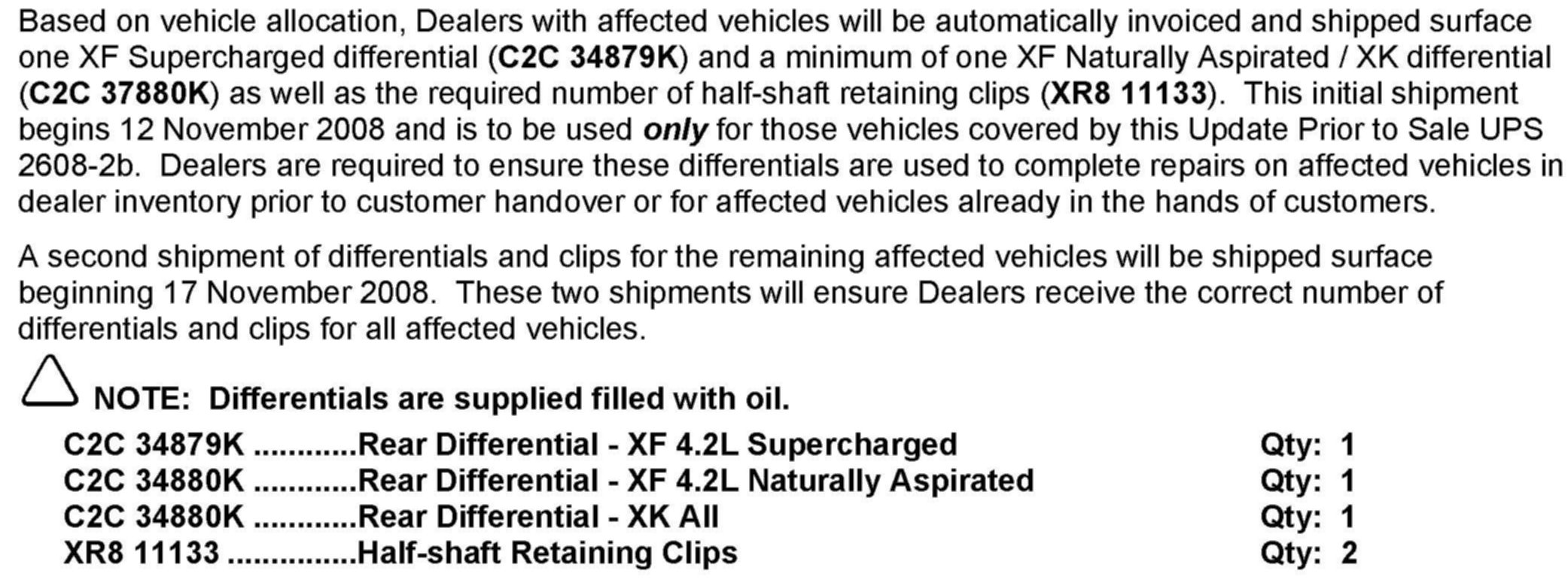

PARTS

TOOLS:

Refer to Workshop Manual (GTR) for any required special tools

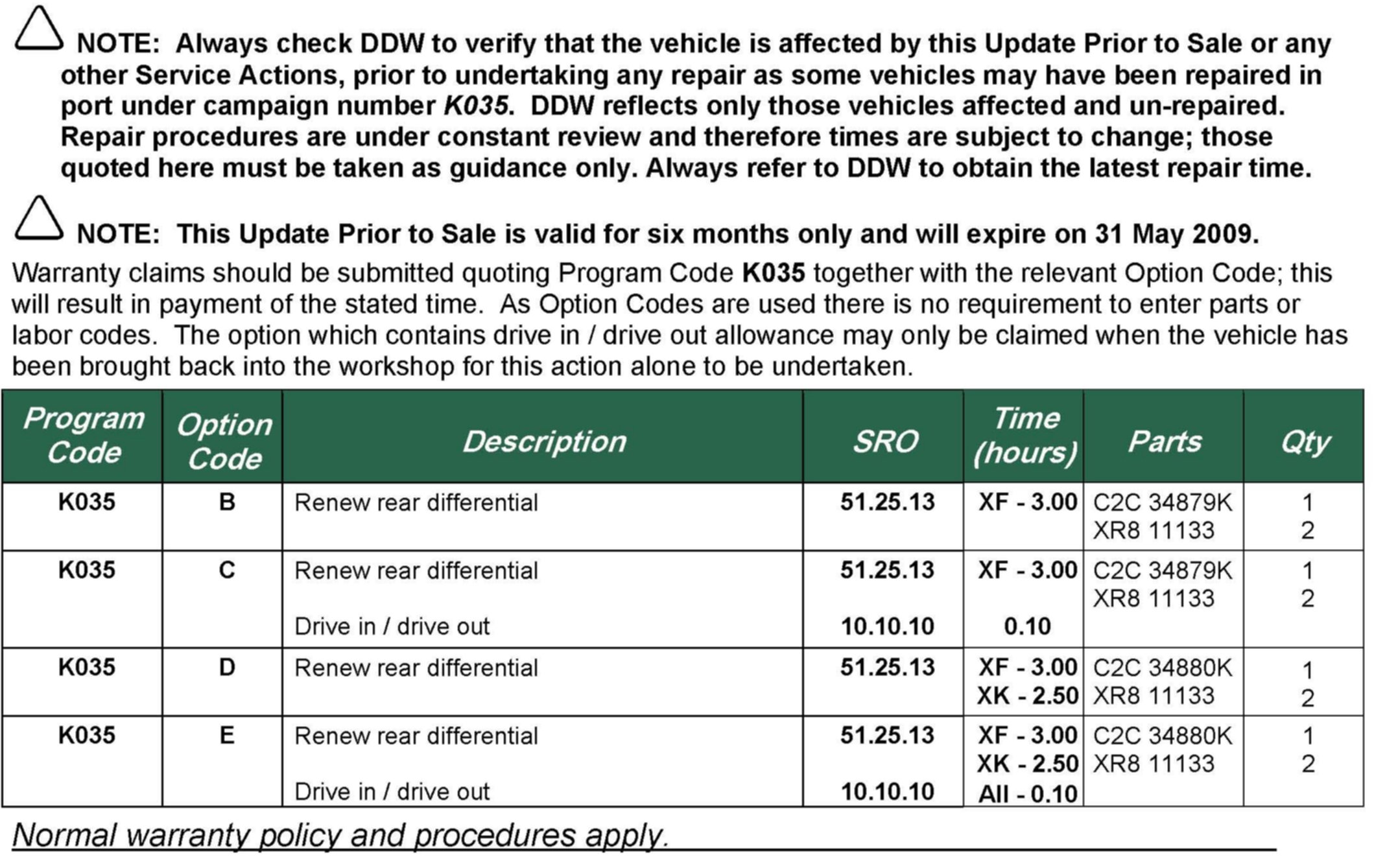

WARRANTY

REPAIR PROCEDURE

REPLACE THE REAR DIFFERENTIAL

NOTE:
Global Technical Reference (GTR) lookup sequence is as follows:

GTR Home > NAS > Model > Service Information > 2009 > Workshop Manual > 2: Chassis > 205: Driveline > 205-02: Rear Drive Axle / Differential

CAUTION:
Ensure one new half-shaft retaining clip (XR8 11133) is installed on each half-shaft.

NOTE:
New differentials are supplied filled with oil.

1. Refer to Workshop Manual (GTR) Section 205-02: Rear Drive Axle / Differential (51.25.13) to replace the rear differential.
