Transmission Fluid Drain and Refill

Transmission Fluid Drain and Refill

Special Service Tools






Adapter

307-452
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Remove the air deflector. For additional information, refer to Air Deflector
3 Place a container under the transmission.




4
WARNING: Observe due care when draining, as the fluid can be very hot.
WARNING: Observe due care when working near a hot exhaust system.
Using the special tool, remove the transmission fluid filler/level plug.




5
WARNING: Observe due care when draining, as the fluid can be very hot.
WARNING: Observe due care when working near a hot exhaust system.

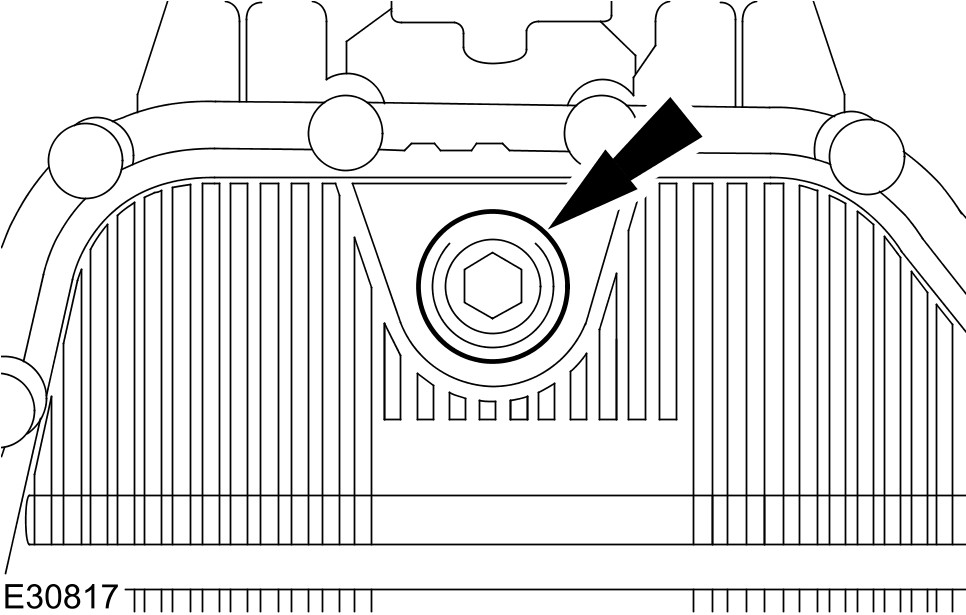

Remove the transmission fluid drain plug.
- Allow the fluid to drain.




6 Install the new transmission fluid drain plug.
- Tighten to 8 Nm.




7
NOTE:
Use transmission fluid meeting Jaguar specification.
Refill the transmission with fluid.




8 Allow the transmission fluid to drain from the transmission fluid filler plug hole until the flow almost stops.




9
NOTE:
Install a new sealing washer.
Using the special tool, install the new transmission fluid fill plug.
- Loosely install the transmission fluid fill plug.

10 Lower the vehicle.

11 Carry out a transmission fluid level check. For additional information, refer to Transmission Fluid Level Check Transmission Fluid Level Check
