Fuel Temperature Sensor: Service and Repair

Fuel Temperature Sensor

Removal
1 Remove the cover and disconnect the battery ground cable. For additional information, refer to Specifications [1][2]Battery
2 Remove the intake air resonator. For additional information, refer to Intake Air Resonator Service and Repair




3
WARNING: The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent fire and explosion.

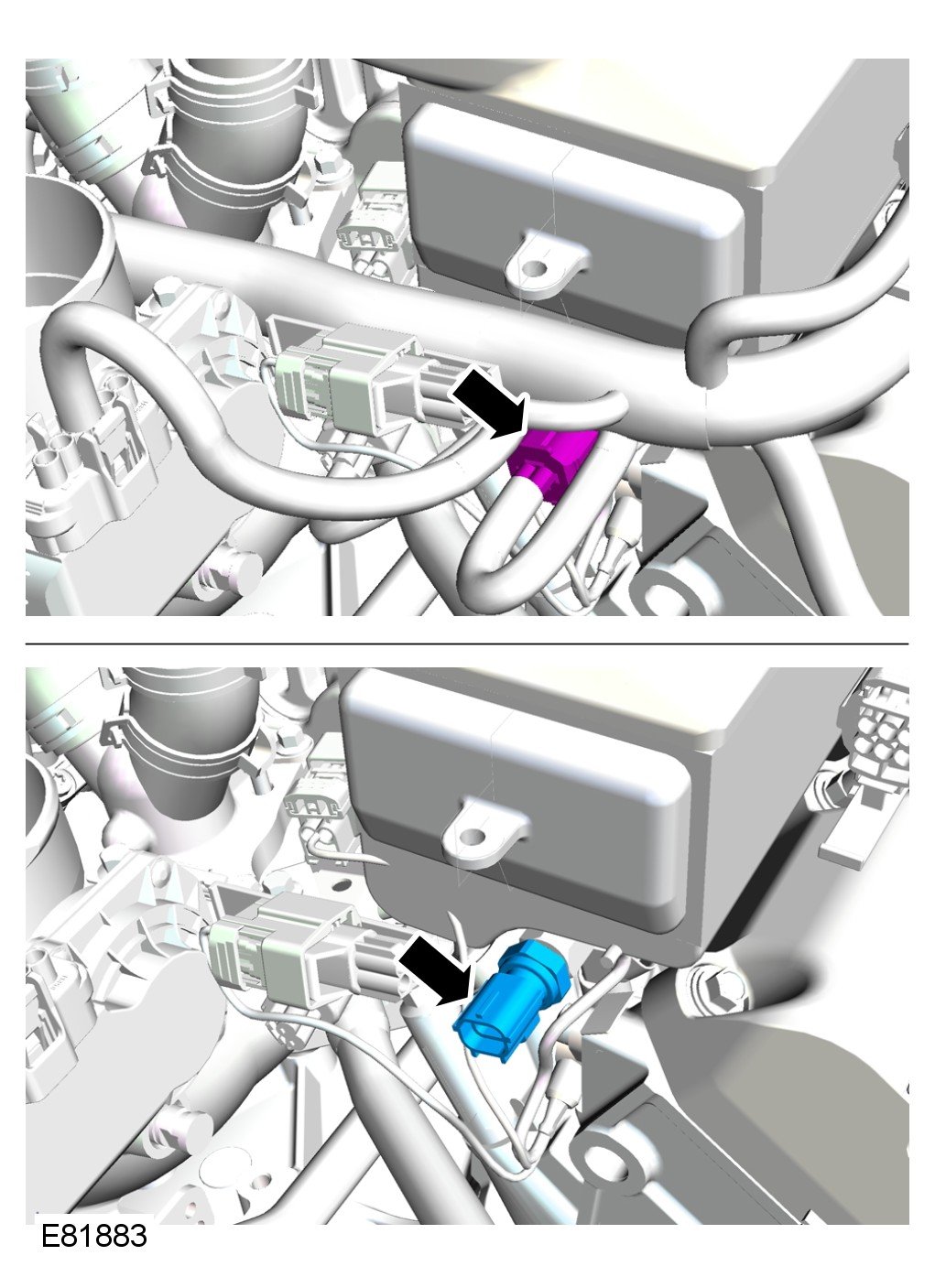

Remove the fuel temperature sensor.
- Disconnect the electrical connector.

Installation
1 Install the fuel temperature sensor.
- Clean the component mating faces.
- Apply sealant to the sensor thread.
- Tighten the sensor to 7 Nm (5 lb.ft).
- Connect the electrical connector.
2 Install the intake air resonator. For additional information, refer to Intake Air Resonator Service and Repair
3 Connect the battery ground cable and install the cover. For additional information, refer to Specifications [1][2]Battery
