Home >> Jaguar >> 2009 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Locations >> Module-Door Latch-Driver

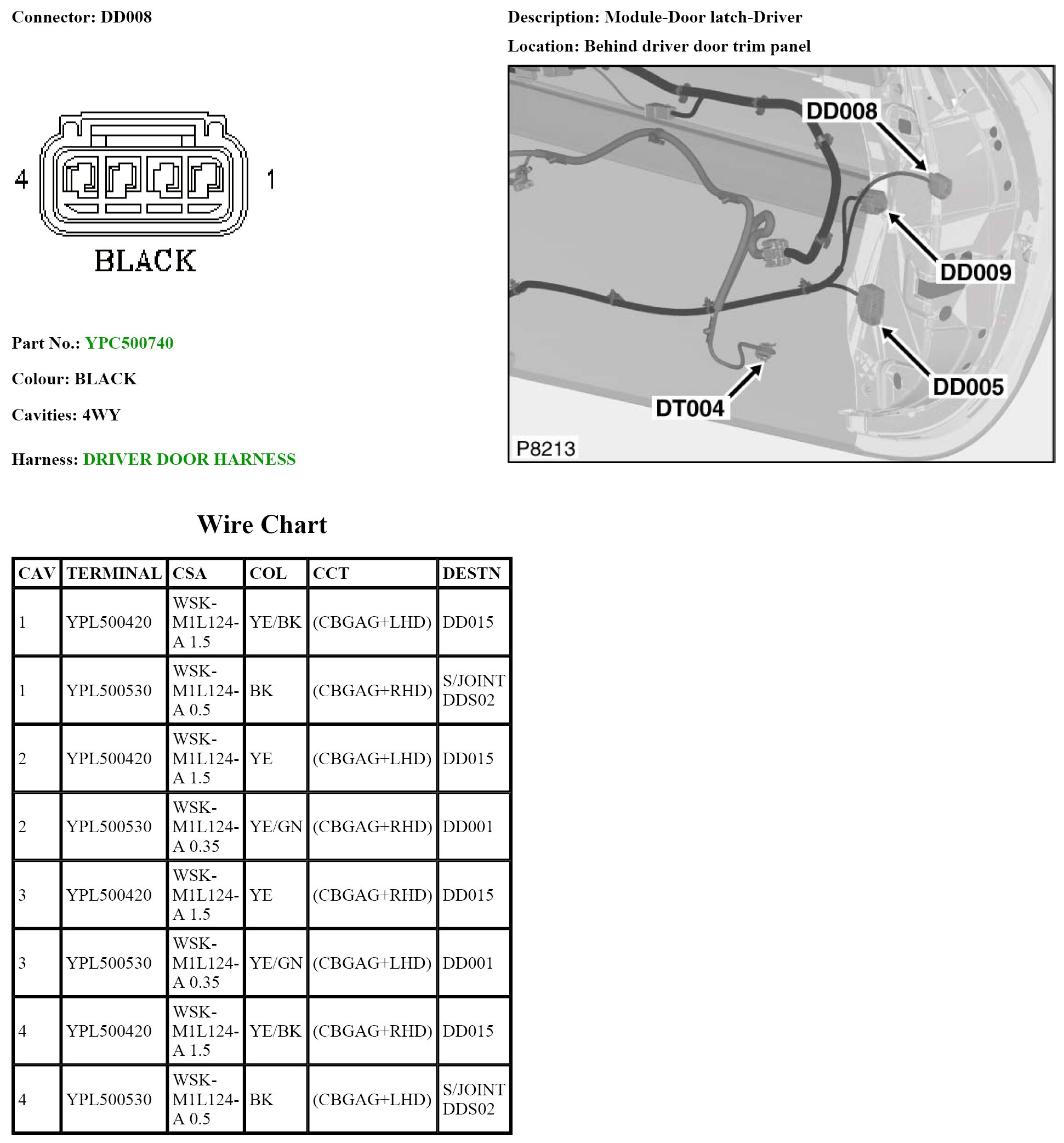

Module-Door Latch-Driver

DD008

DD008:
