Power Mirror Motor: Service and Repair

Exterior Mirror Motor

Removal

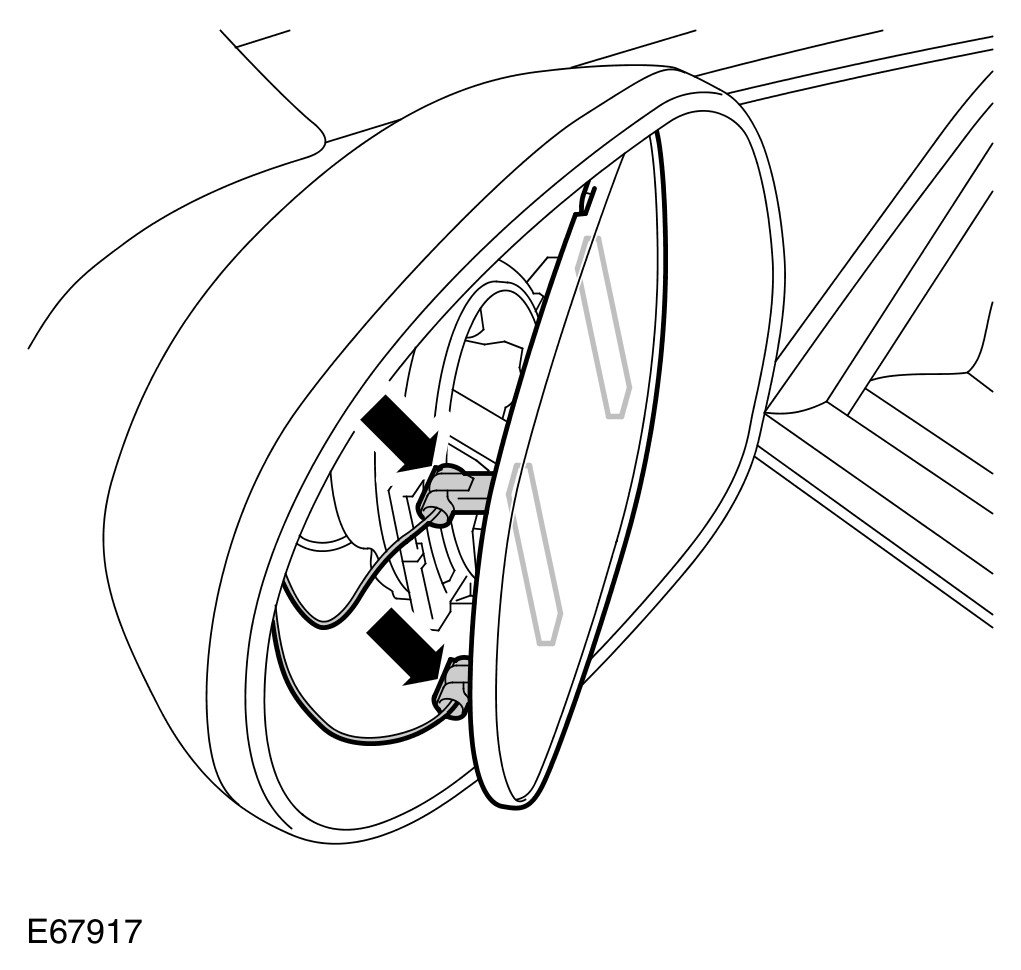

1 Remove the exterior mirror glass.
- Carefully apply pressure to the outer edge of the glass, to release the 2 clips.
- Disconnect the 2 electrical connectors.

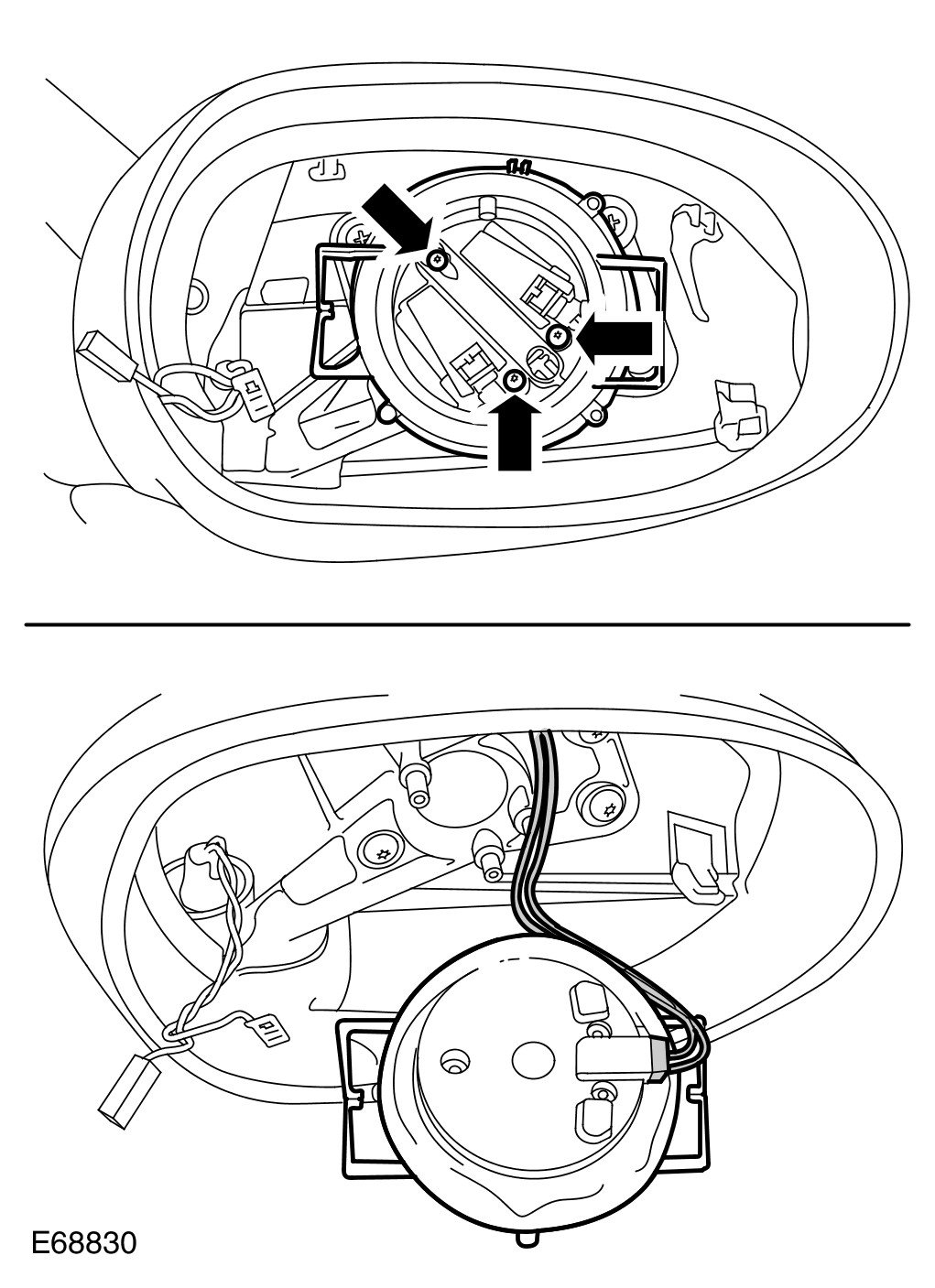

2 Remove the exterior mirror motor.
- Remove the 3 Torx screws.
- Disconnect the electrical connector.

Installation
1 Install the exterior mirror motor.
- Connect the electrical connector.
- Install and tighten the Torx screws.
2 Install the exterior mirror glass.
- Connect the electrical connectors.
- Align the glass to the motor.
- Apply an even pressure to secure glass to the clips.
3 Check the operation of the exterior mirror.
