Rear Wheel Speed Sensor

Rear Wheel Speed Sensor

Removal
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Remove the LH rear wheel and tire. For additional information, refer to Wheel and Tire Service and Repair

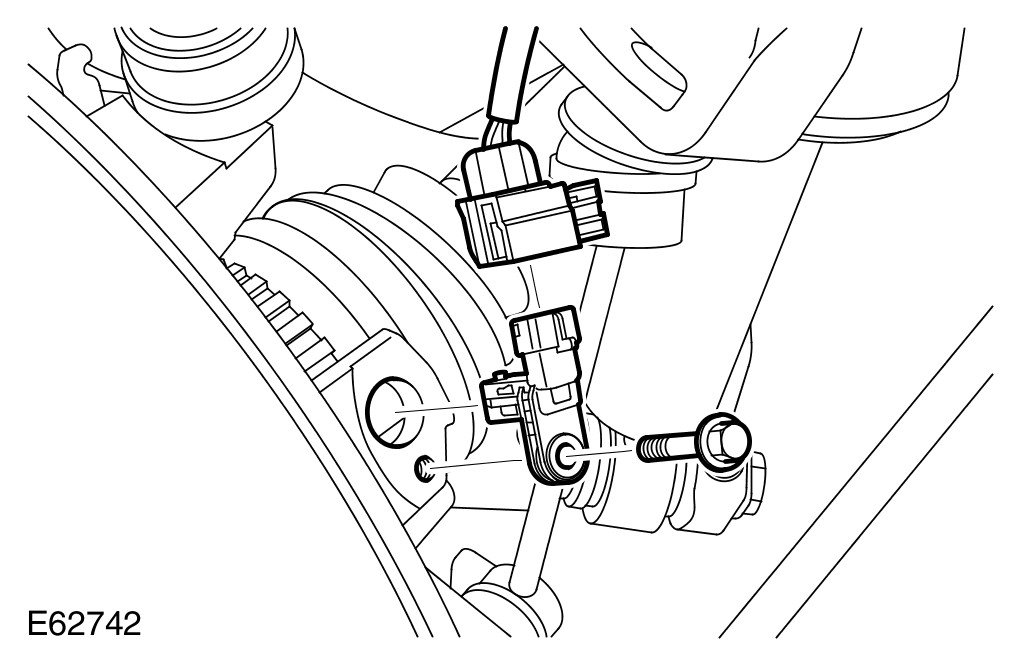

3 Remove the wheel speed sensor.
- Remove the bolt.
- Disconnect the electrical connector.

Installation
1 Install the wheel speed sensor.
- Clean the component mating faces.
- Connect and secure the electrical connector.
- Install the bolt and tighten to 10 Nm (7 lb.ft).
2 Install the wheel and tire. For additional information, refer to Wheel and Tire Service and Repair
