Air Injection Control Valve: Service and Repair

Secondary Air Injection (AIR) Control Valve

Removal
1 Remove the cover and disconnect the battery ground cable. For additional information, refer to Specifications [1][2]Battery
2 Remove the engine cover. For additional information, refer to Engine Cover Service and Repair

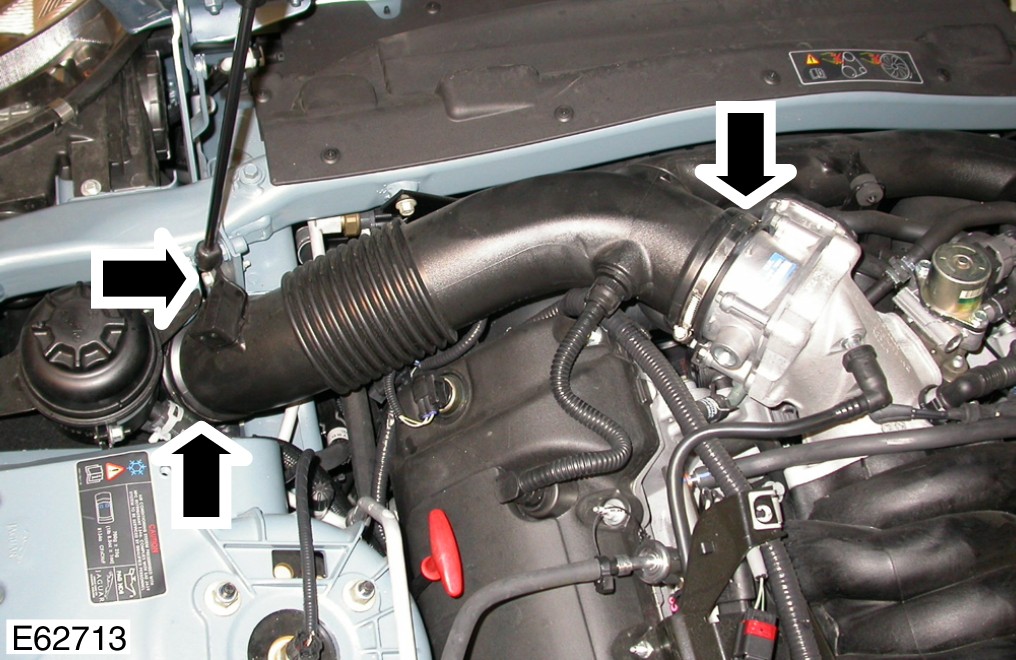

3 Remove the air intake duct.
- Remove the bolt.
- Release the 2 clips.

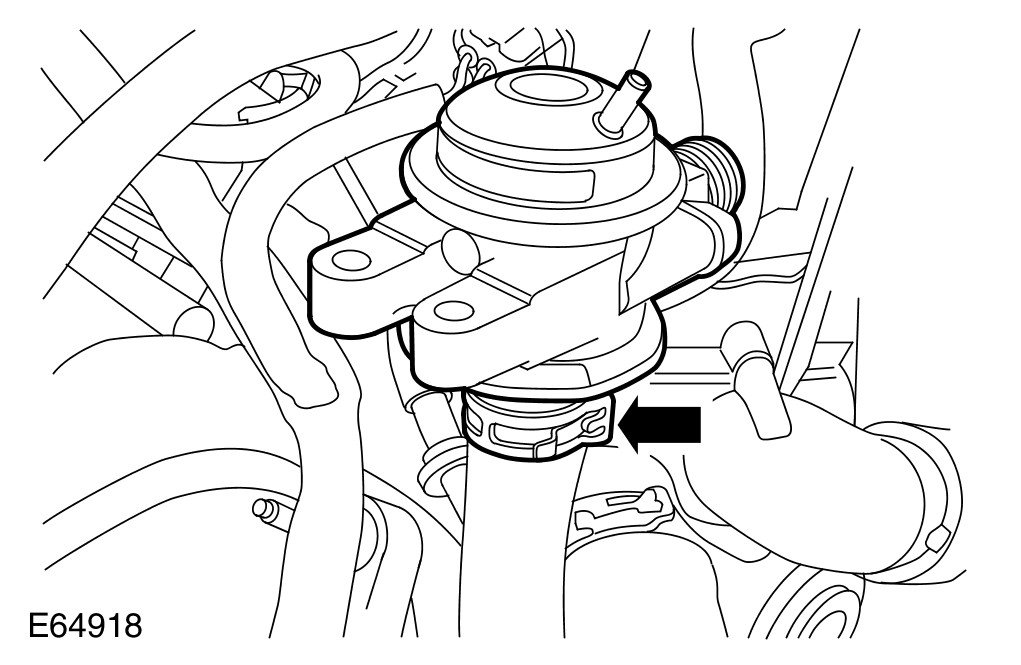

4 Release the AIR tube from the AIR control valve.

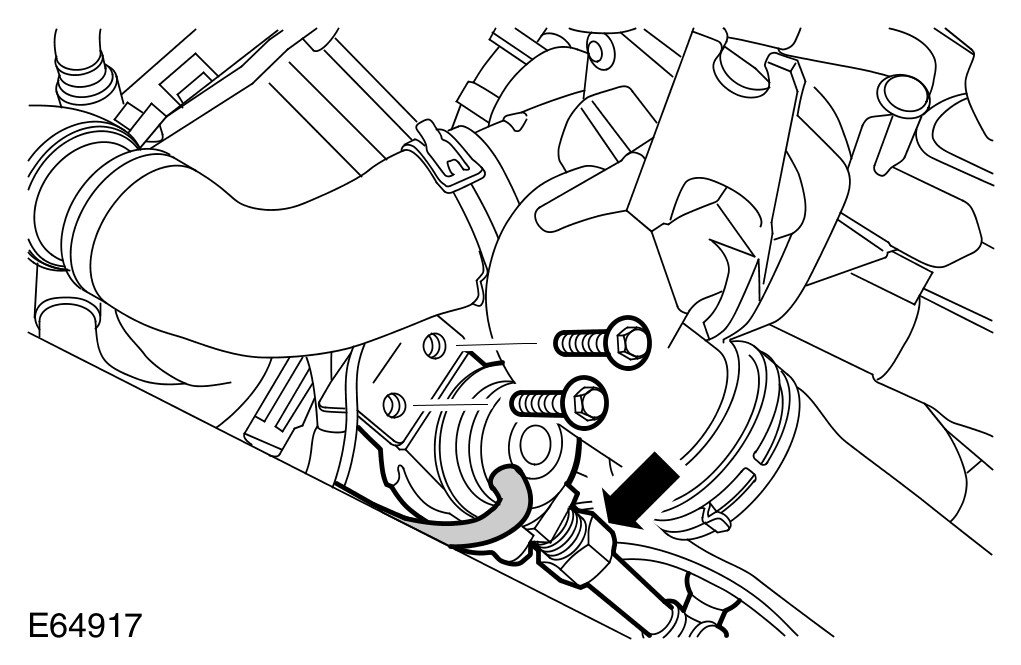

5 Release the AIR control valve.
- Disconnect the vacuum hose.
- Remove the 2 bolts.




6 Remove the AIR control valve.
- Release the clip and disconnect the hose.

Installation
1 Attach the AIR control valve hose.
- Secure with the clip.
2 Secure the AIR control valve.
- Tighten the bolts to 25 Nm (18 lb.ft).
- Connect the vacuum hose.
3 Attach the AIR tube to the AIR control valve.
- Tighten the union to 35 Nm (26 lb.ft).
4 Install the air intake duct.
- Tighten the clips.
- Tighten the bolt to 10 Nm (7 lb.ft).
5 Install the engine cover. For additional information, refer to Engine Cover Service and Repair
6 Connect the battery ground cable and install the cover. For additional information, refer to Specifications [1][2]Battery
