Air Injection Pump: Service and Repair

Secondary Air Injection (AIR) Pump

Removal
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Remove the radiator splash shield. For additional information, refer to Radiator Splash Shield Radiator Splash Shield

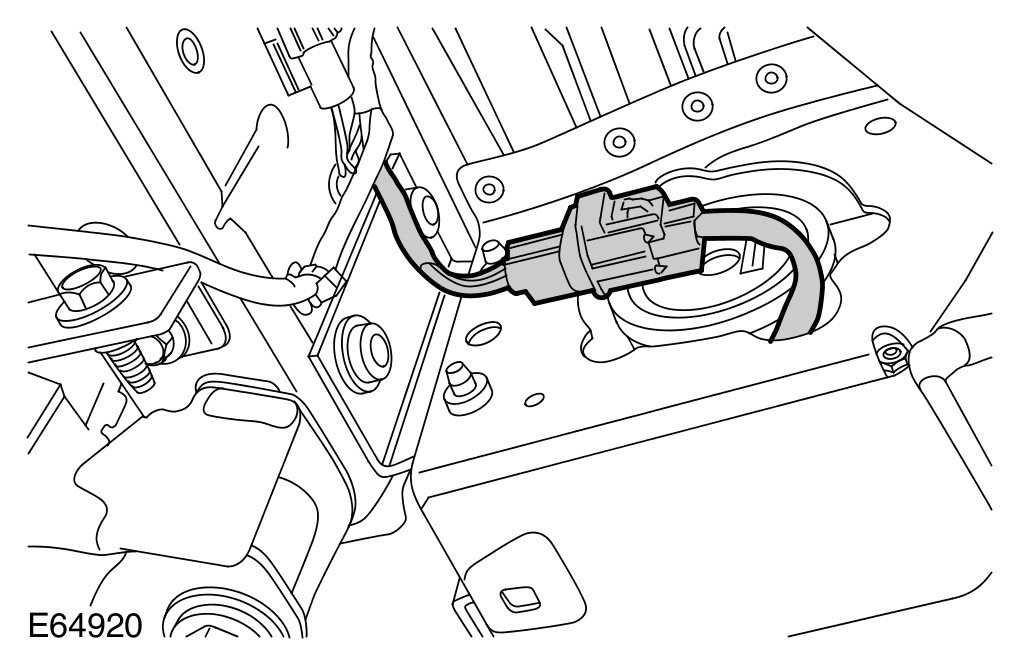

3 Disconnect the AIR pump electrical connector.

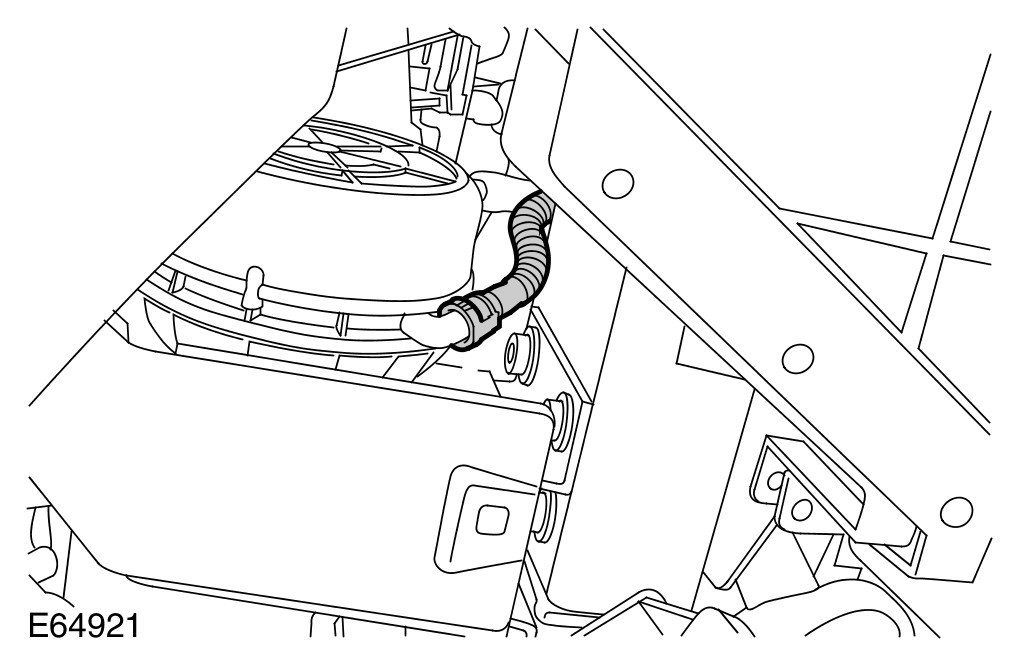

4 Disconnect the AIR pump hose.

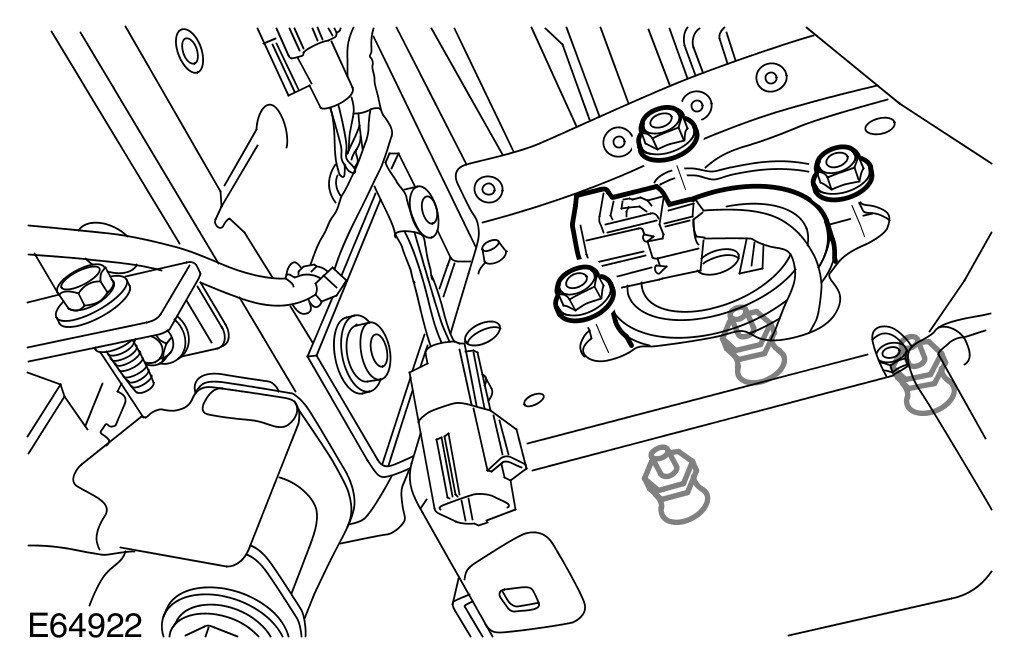

5 Remove the AIR pump.
- Remove the 3 nuts.




6
NOTE:
Do not disassemble further if the component is removed for access only.

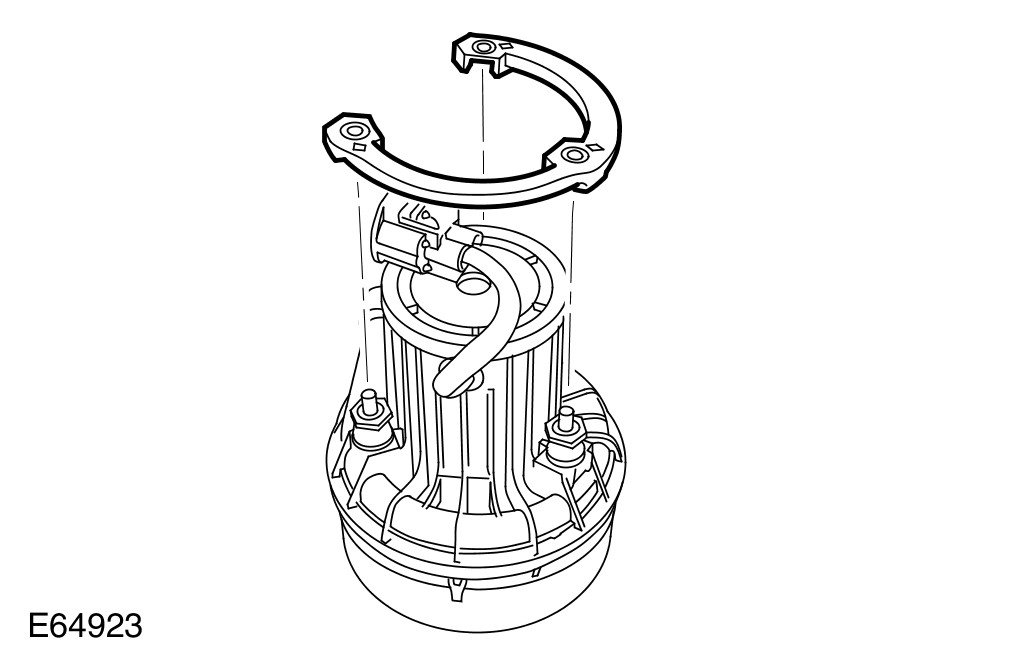

Remove the AIR pump bracket.

Installation
1 Install the AIR pump bracket.
2 Install the AIR pump.
- Tighten the nuts to 10 Nm (7 lb.ft).
- Connect the hose.
- Connect the electrical connector.
3 Install the radiator splash shield. For additional information, refer to Radiator Splash Shield Radiator Splash Shield
