XK (X150) V8-4.2L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Impact Sensor
>>
Locations
>>

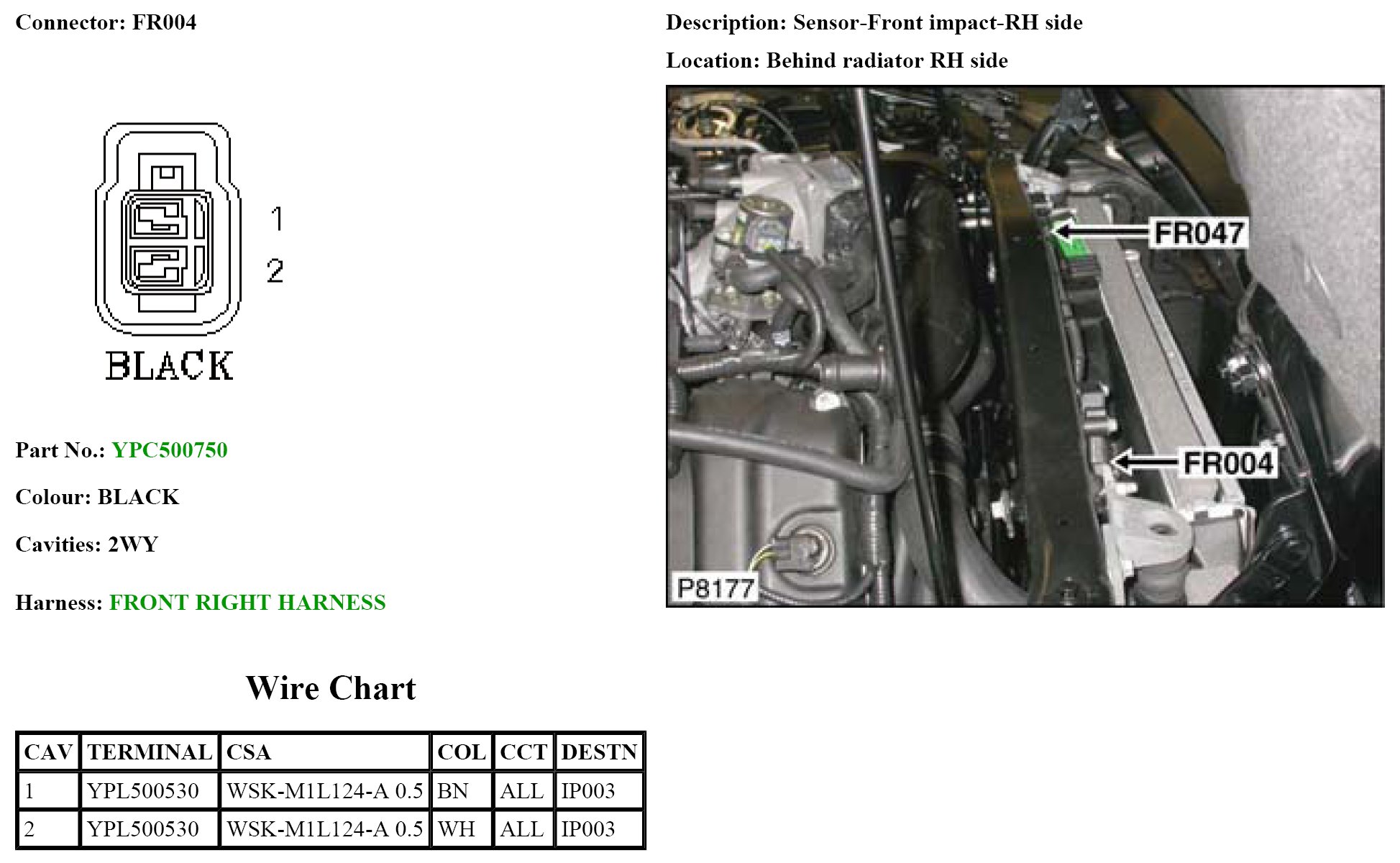

Sensor-Front Impact-RH Side
Sensor-Front Impact-RH Side
FR004
FR004:
