Home
>>
Jaguar
>>
2009
>>
XK (X150) V8-4.2L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Impact Sensor
>>
Locations
>>

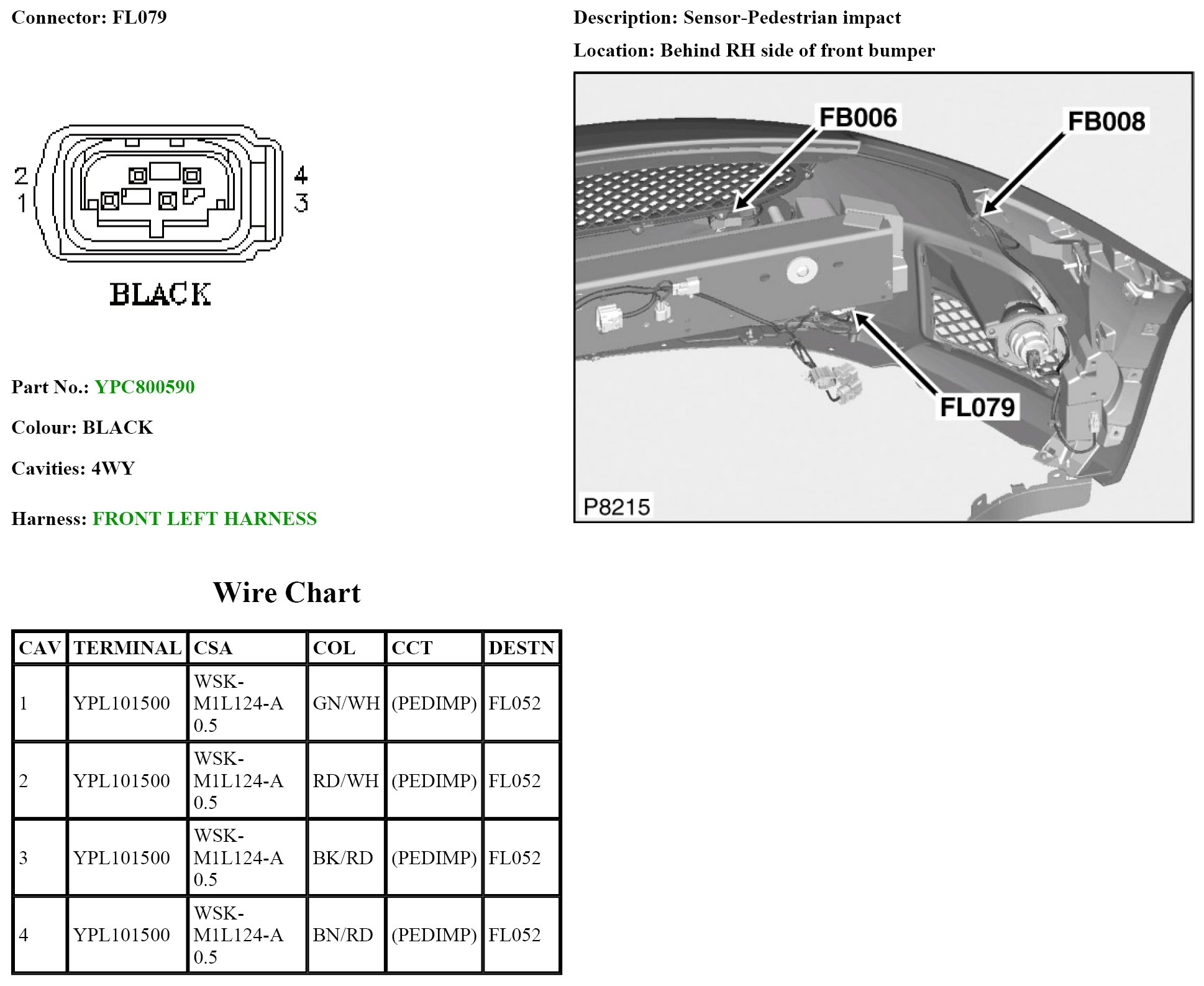

Sensor-Pedestrian Impact
Sensor-Pedestrian Impact
FL079
FL079:
