Steering Angle Sensor: Service and Repair

Steering Angle Sensor

Removal
1 Remove the cover and disconnect the battery ground cable. For additional information, refer to Specifications [1][2]Battery
2 Make the SRS system safe. For additional information, refer to Standard Workshop Practices Standard Workshop Practices
3 Remove the steering wheel. For additional information, refer to Steering Wheel Service and Repair
4 Remove the instrument panel, lower trim panel. For additional information, refer to Instrument Panel Lower Trim Panel Instrument Panel Lower Trim Panel

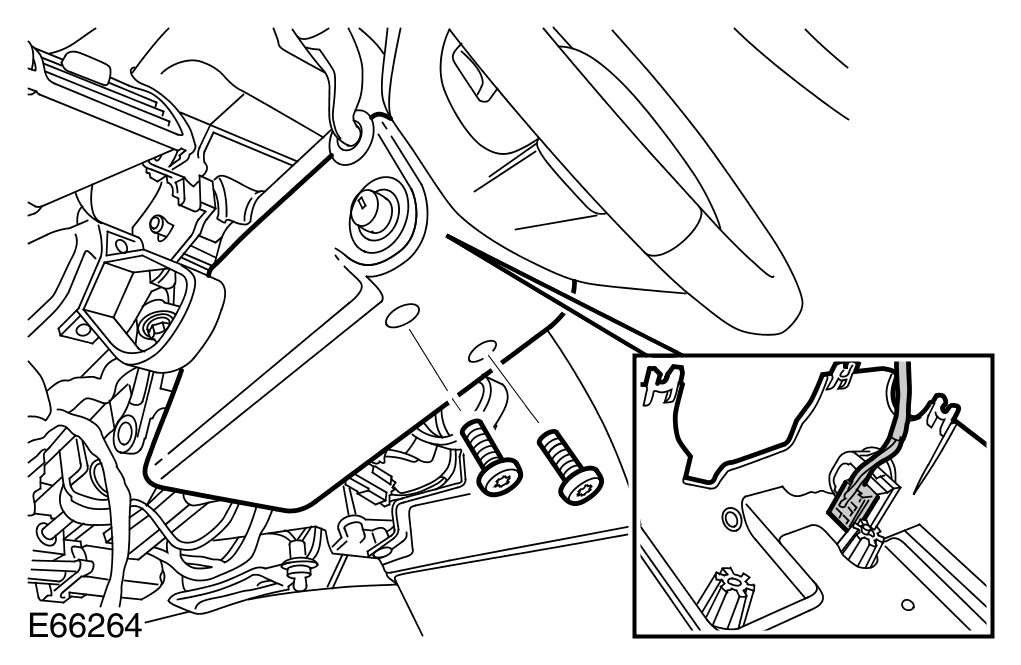

5 Remove the steering column lower cowl.
- Remove the 2 screws.
- If installed, disconnect the steering column and foot pedal control switch electrical connector.

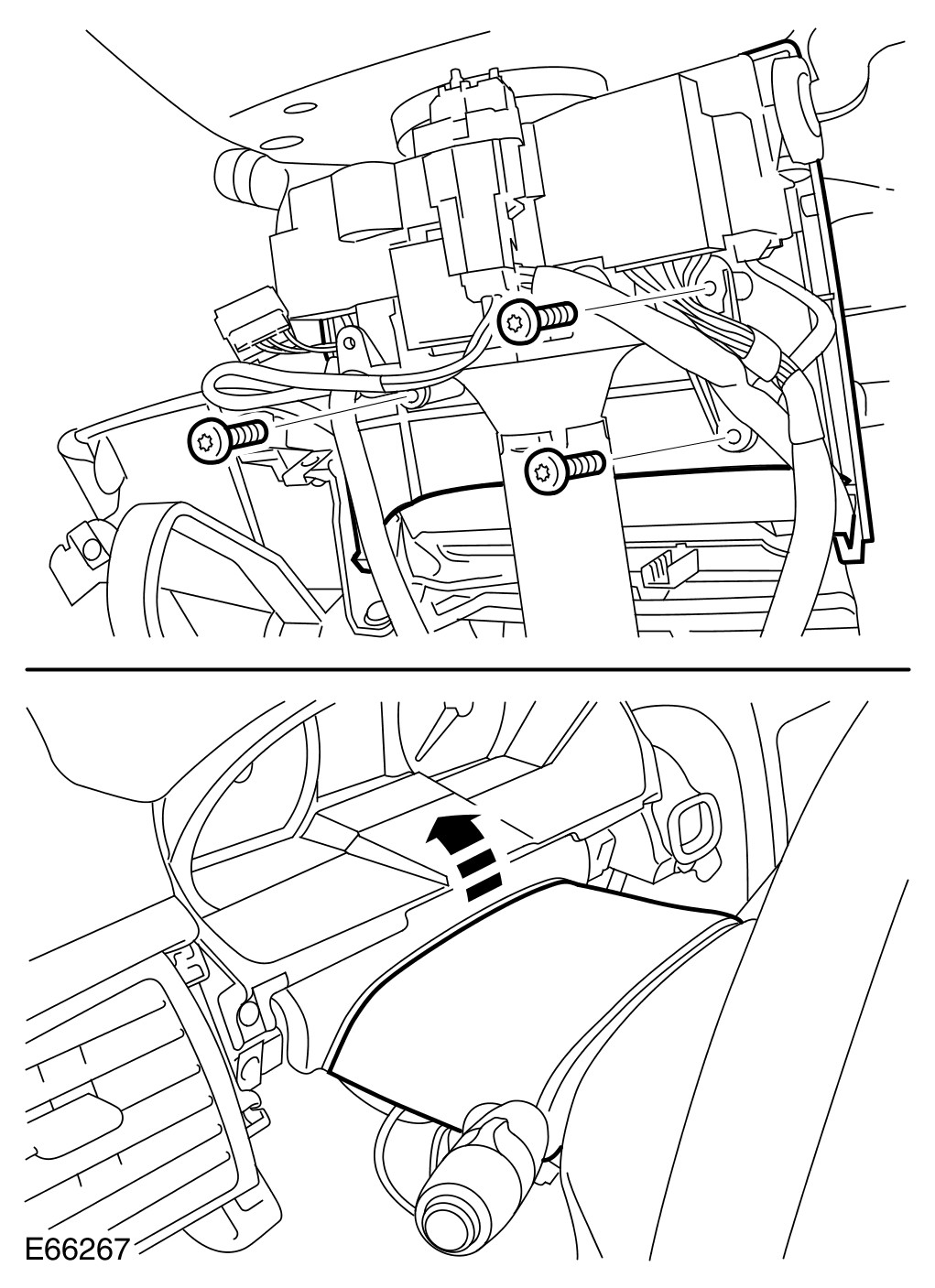

6 Remove the steering column upper cowl.
- Remove the 3 screws.

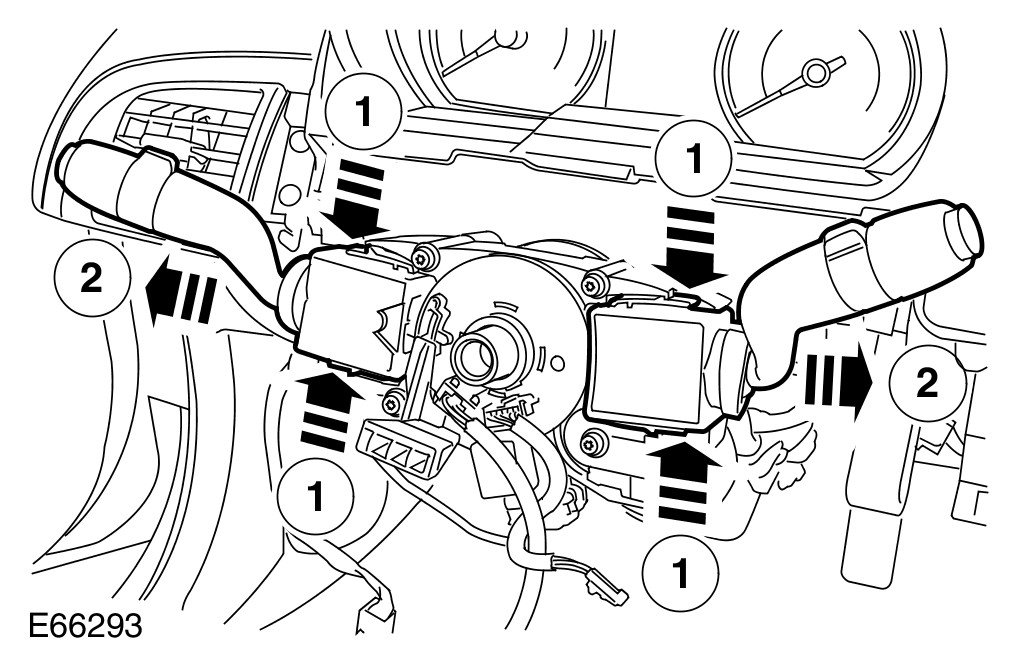

7 Release the multifunction switch.
- Depress the 2 clips.
- Repeat the above procedure on the opposite hand.

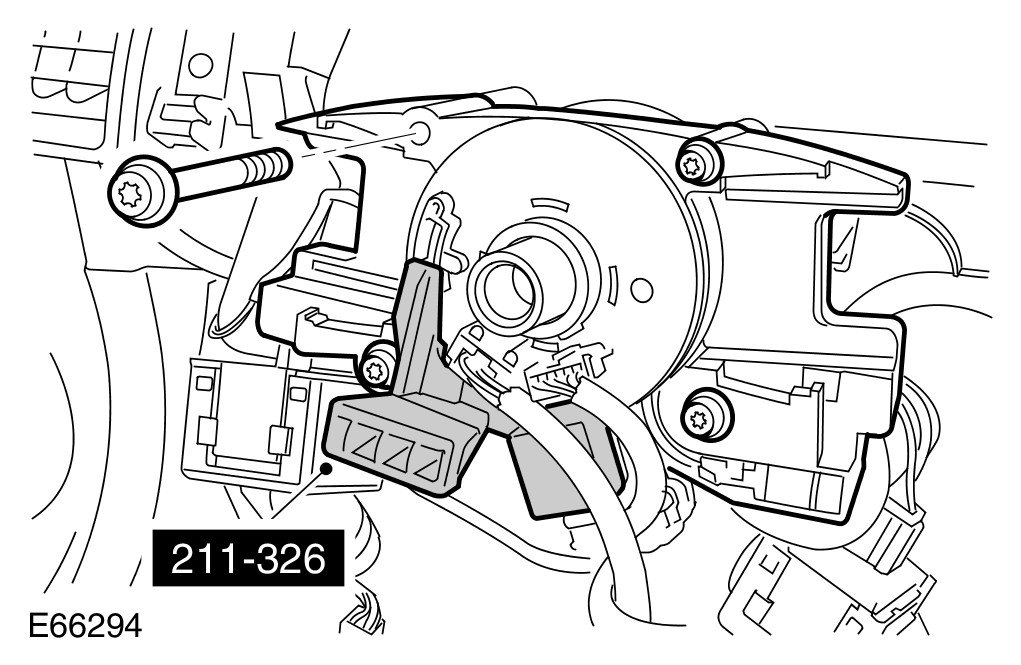

8 Release the clockspring.
- Remove the 4 Torx bolts.

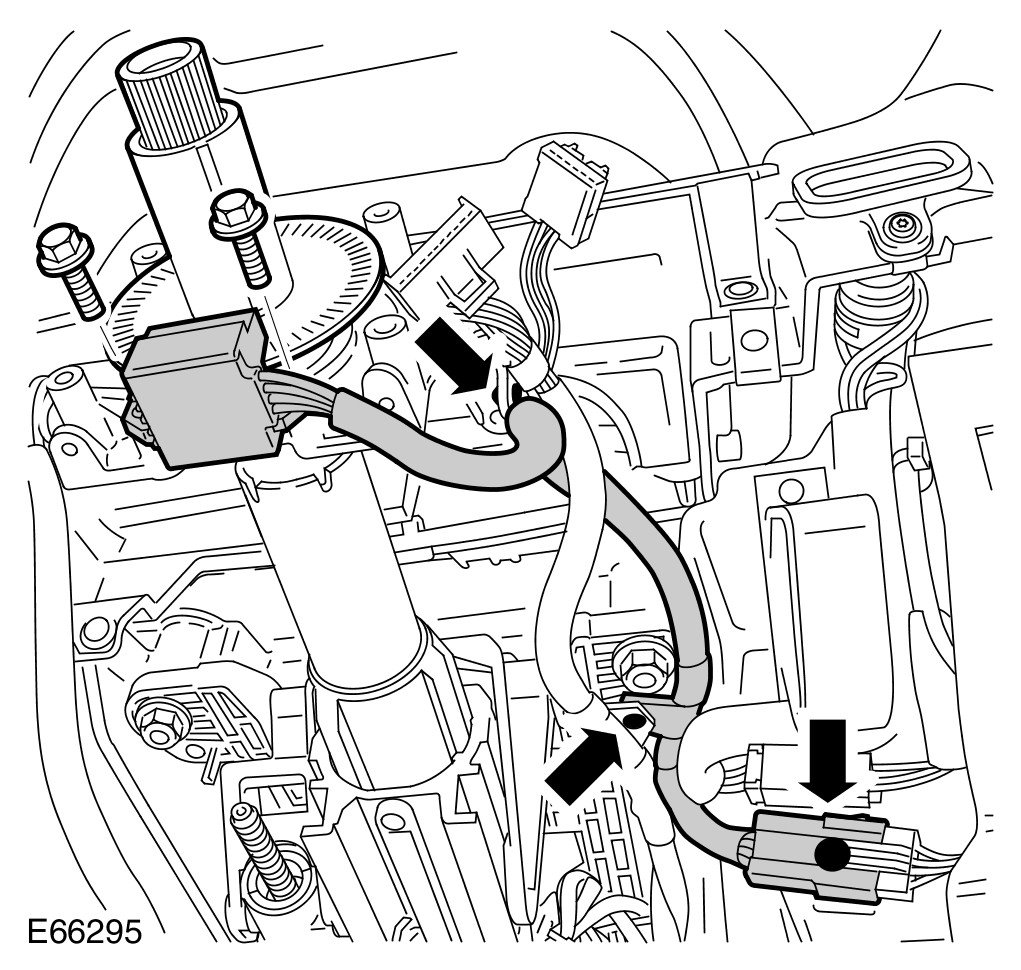

9 Remove the steering angle sensor.
- Disconnect the electrical connector.
- Release the 3 wiring harness clips.
- Separate the harness.
- Remove the 2 bolts.
- Remove the reluctor ring.

Installation
1 Install the steering angle sensor.
- Install the reluctor ring.
- Tighten the bolts to 3 Nm (2.2 lb.ft).
- Connect the electrical connector.
- Secure the clips.
2 Install the clockspring.
- Tighten the Torx bolts to 6 Nm (4 lb.ft).
3 Install the steering column upper cowl.
- Install the screws.
4 Install the steering column lower cowl.
- If installed, connect the steering column and foot pedal switch electrical connector.
- Secure in the clips.
- Install the screws.
5 Install the instrument panel, lower trim panel. For additional information, refer to Instrument Panel Lower Trim Panel Instrument Panel Lower Trim Panel
6 Install the steering wheel. For additional information, refer to Steering Wheel Service and Repair
7 Connect the battery ground cable and install the cover. For additional information, refer to Specifications [1][2]Battery
