Differential Mount: Service and Repair

Axle Housing Bushing

Special Service Tools

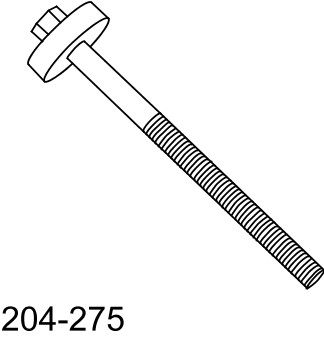

Forcing screw

204-275

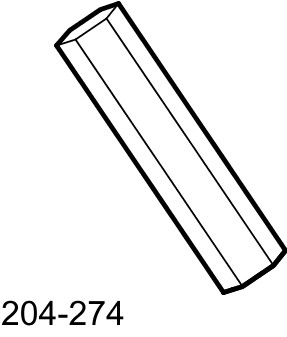

Forcing screw nut

204-274

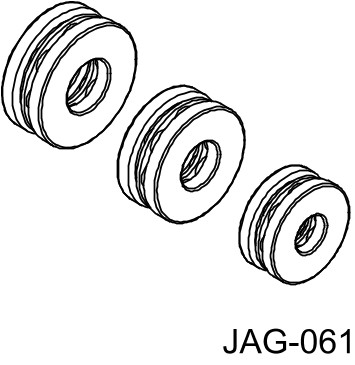

Bearing kit JAG-061

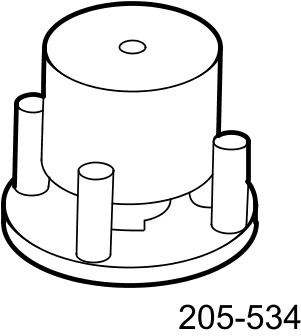

Receiving cup and mount plate

205-534

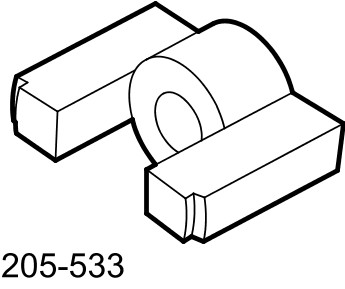

Remover front mount bush

205-533

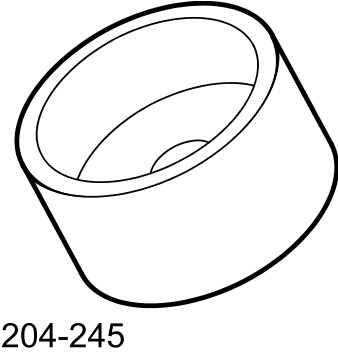

Installer front mount bush

204-245

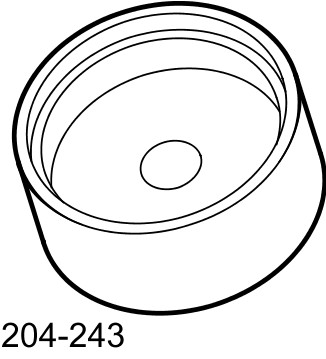

Installer front mount bush

204-243

Removal
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Remove the rear differential. For additional information, refer to Axle Assembly Service and Repair

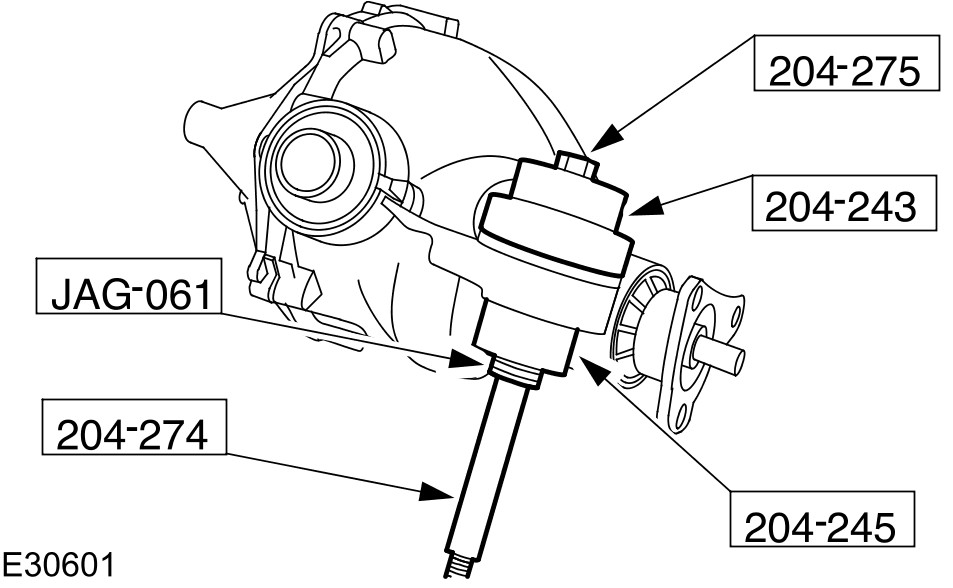

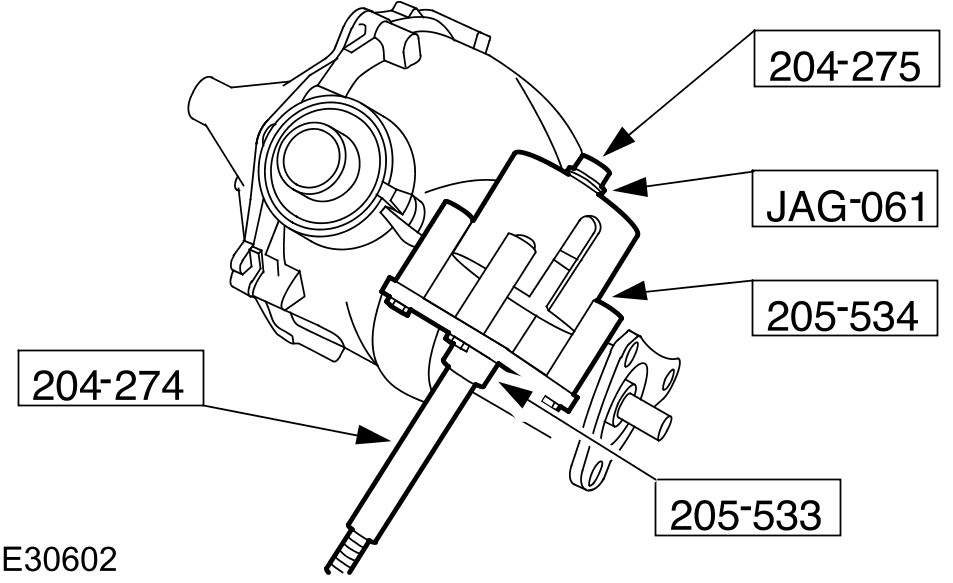

3 Using the special tools, remove the differential bushing.

Installation

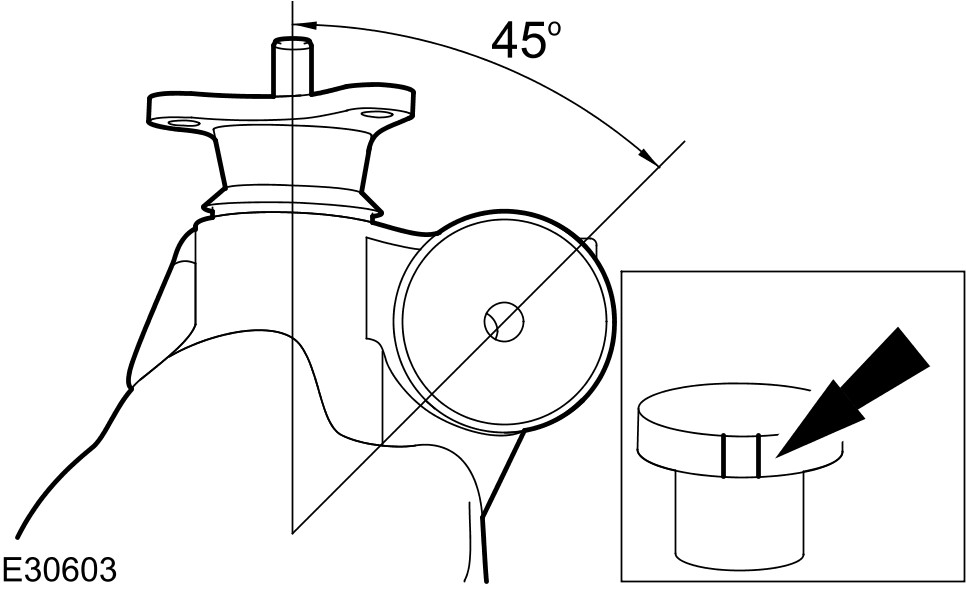

1 The raised mouldings on the bushing, should be set at 45 degrees to the center line of the pinion shaft.




2 Using the special tools, install the bushing.
3 Install the rear differential. For additional information, refer to Axle Assembly Service and Repair
