CAN Bus - High Speed

CAN Bus - High Speed

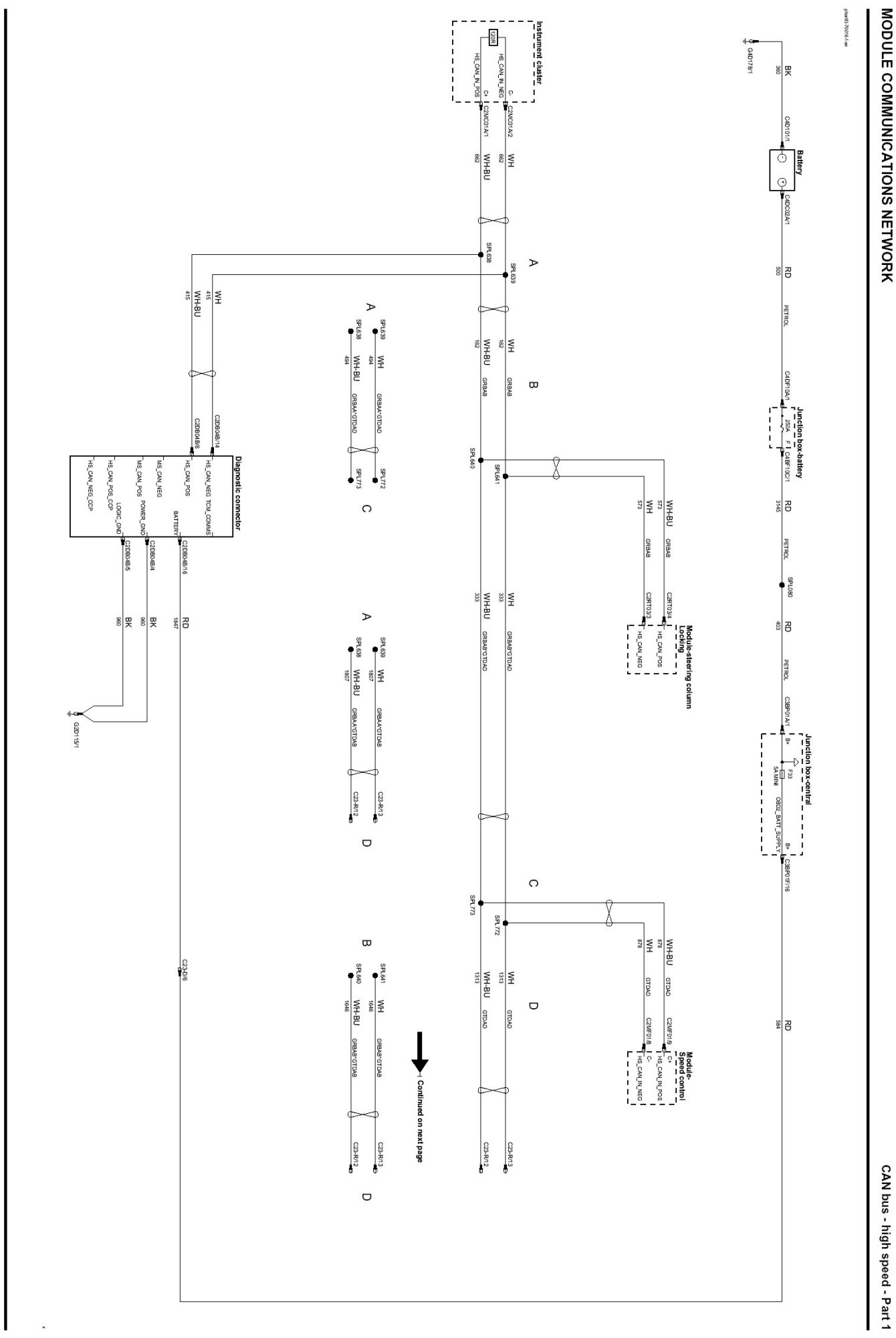

CAN Bus - High Speed - Part 1:

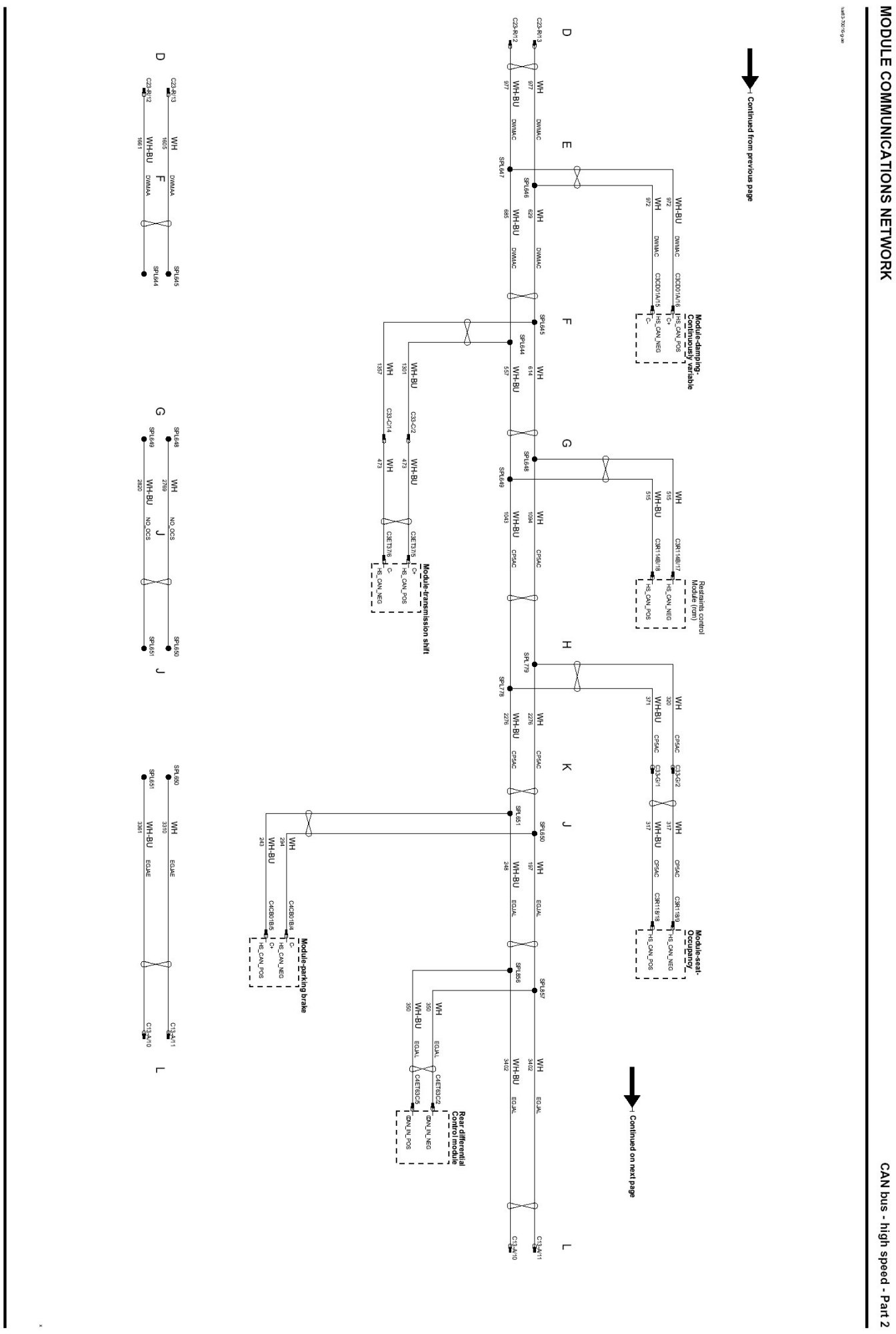

CAN Bus - High Speed - Part 2:

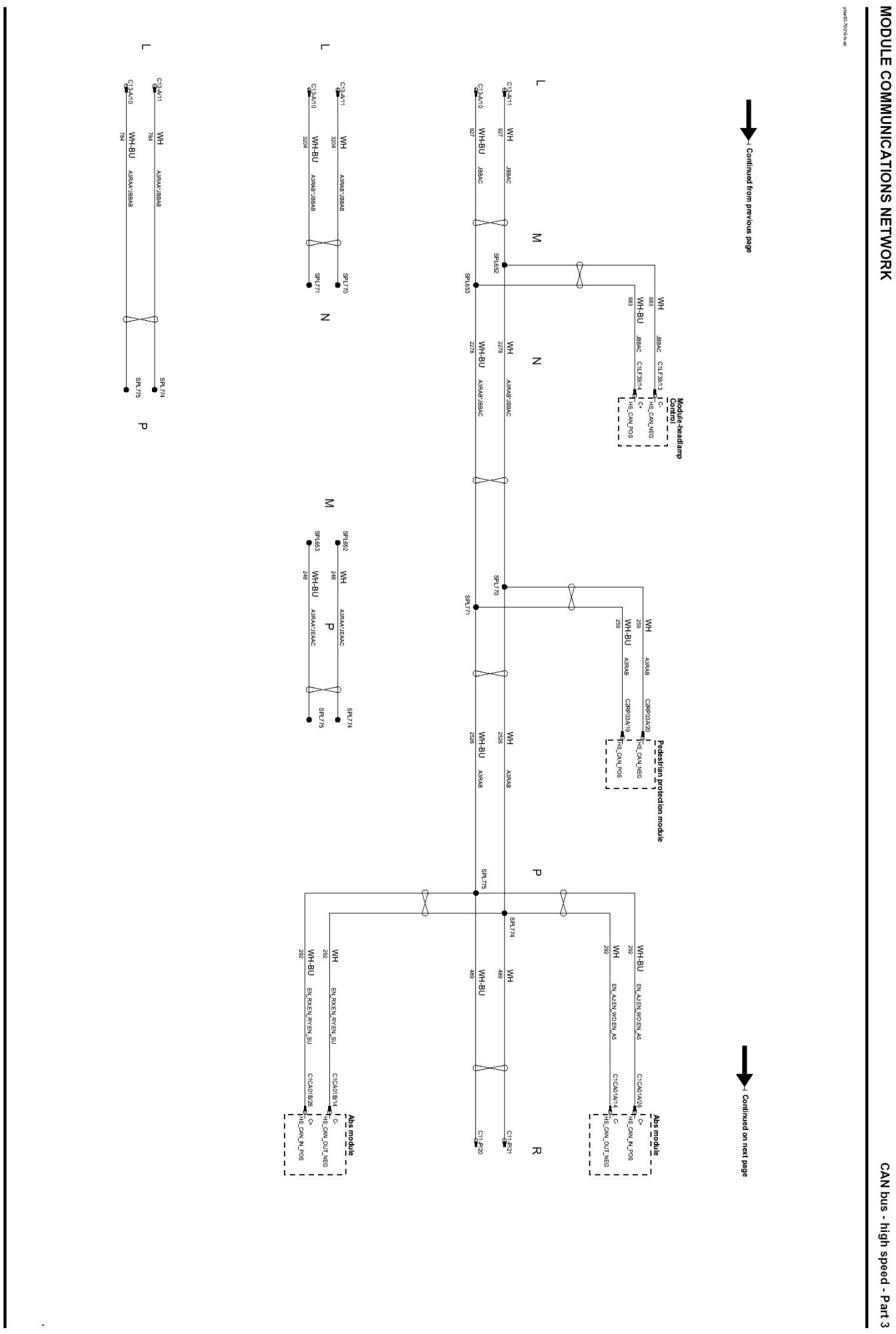

CAN Bus - High Speed - Part 3:

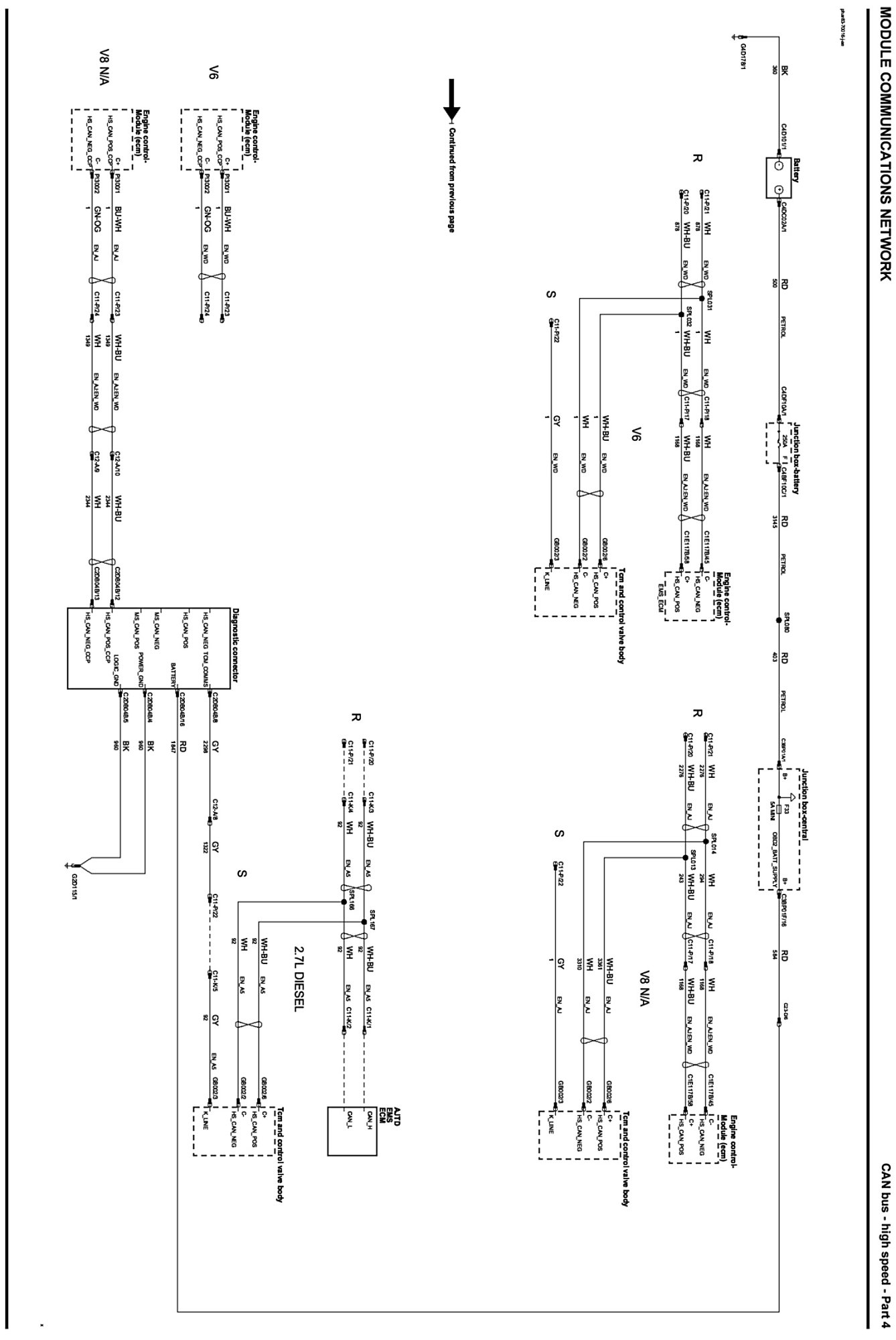

CAN Bus - High Speed - Part 4:

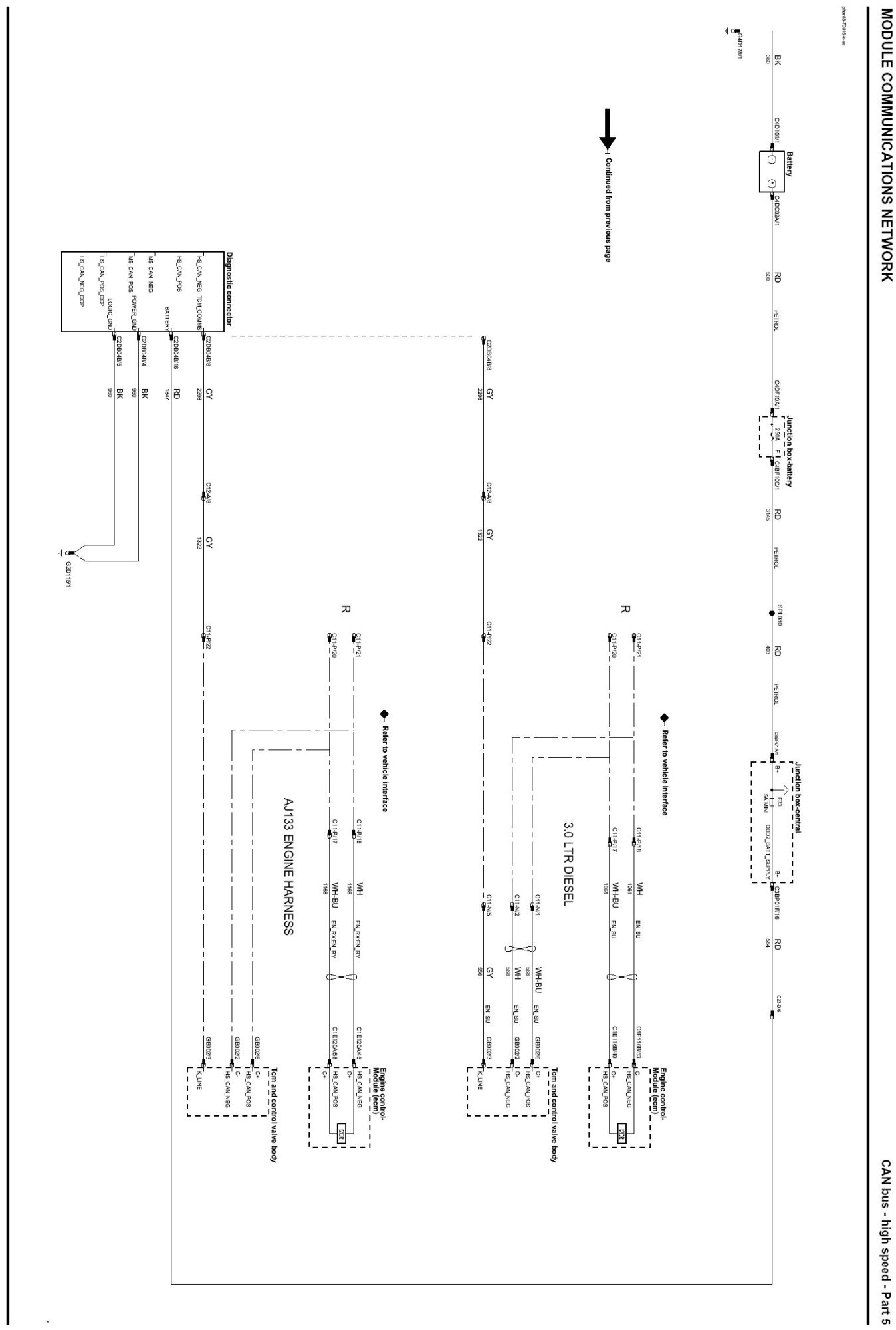

CAN Bus - High Speed - Part 5:
