Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2012
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>

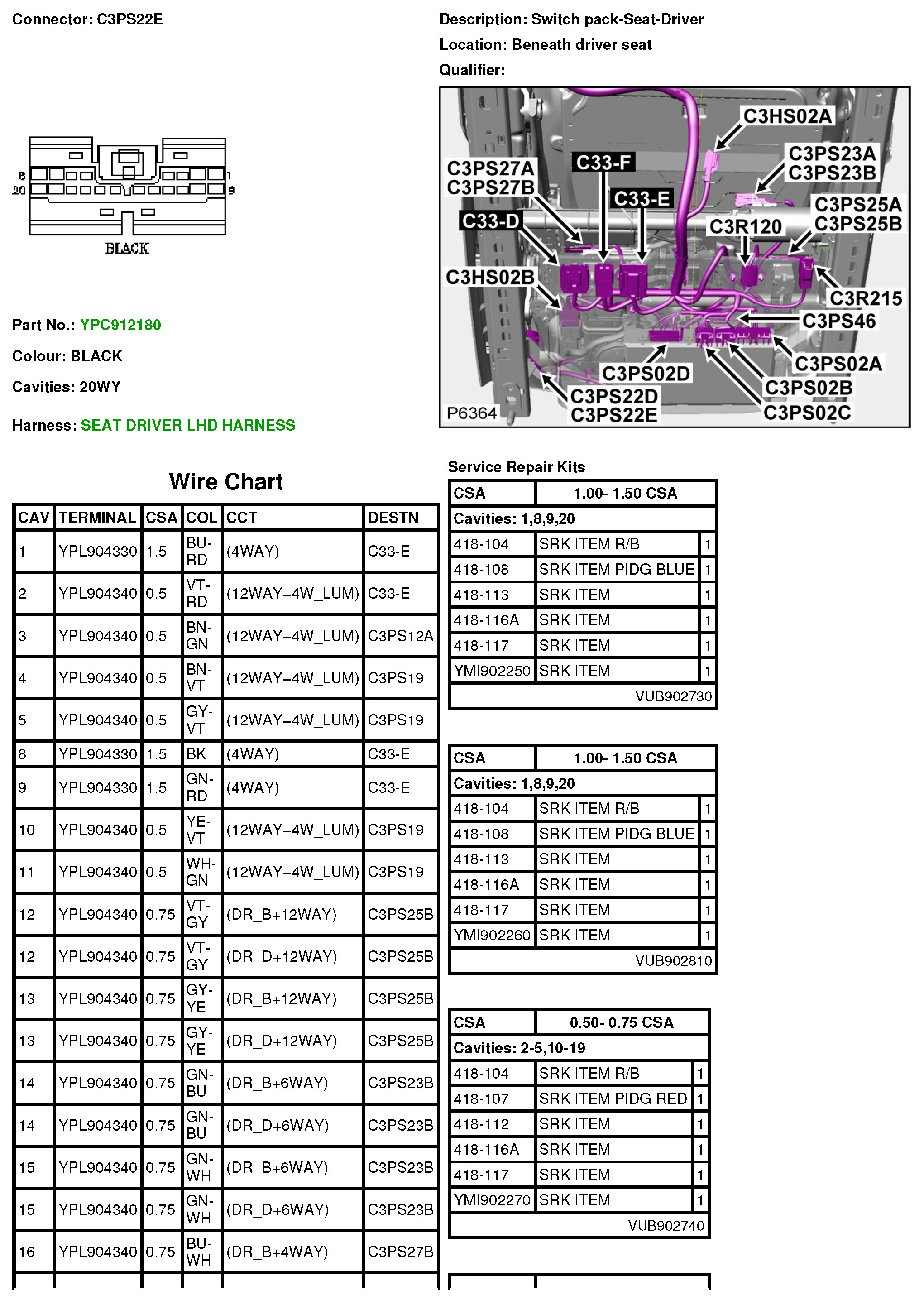

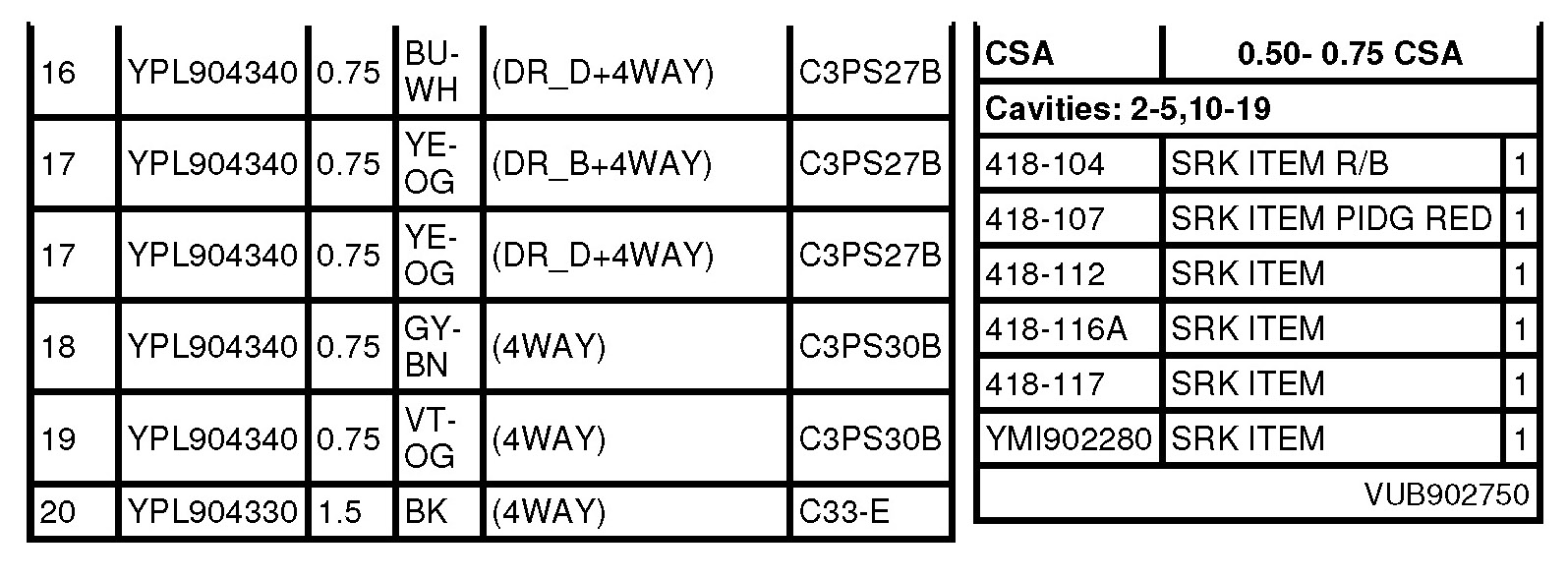

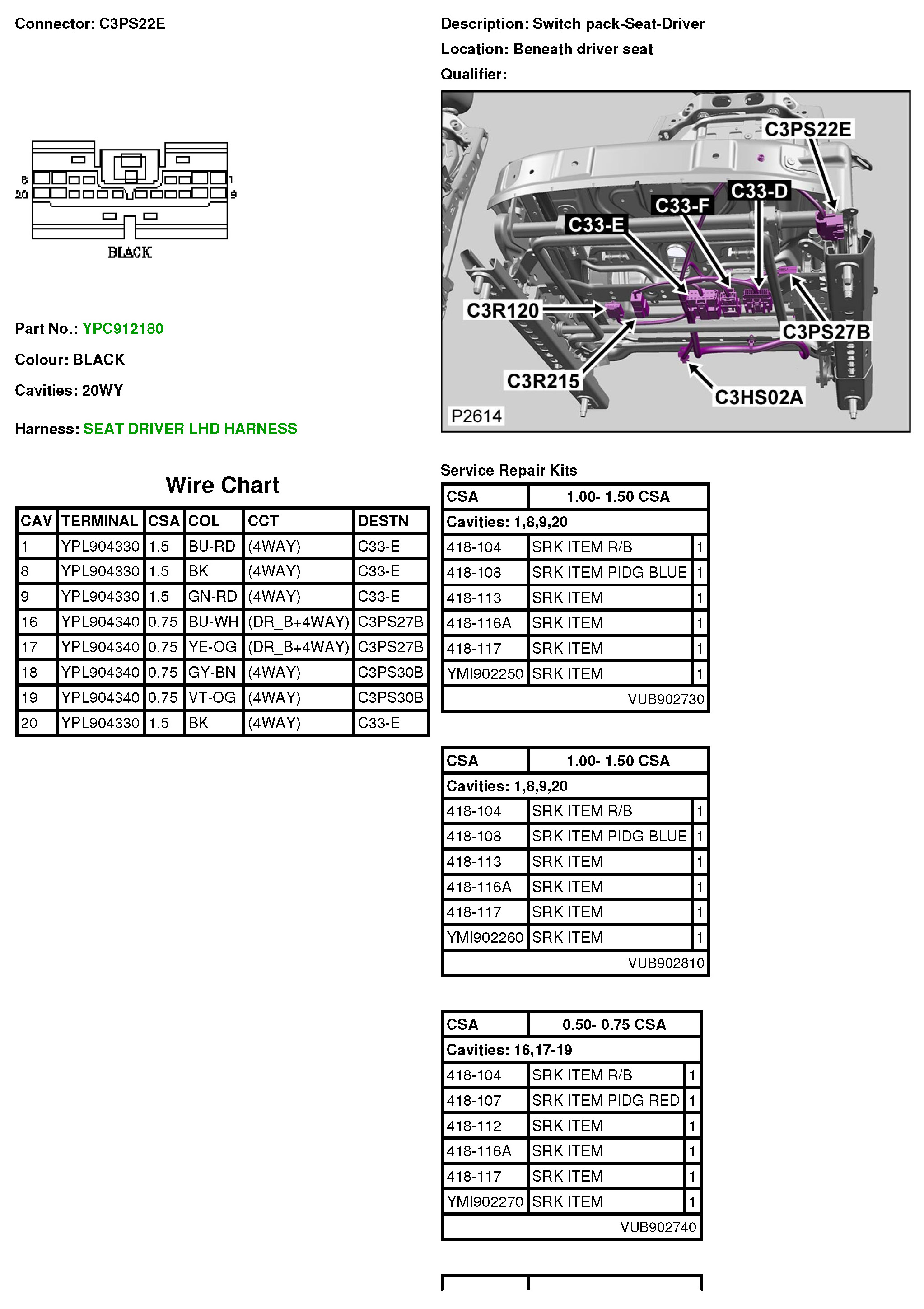

C3PS22E Switch Pack-Seat-Driver
C3PS22E Switch Pack-Seat-Driver
C3PS22E
