Home
>>
Jaguar
>>
2012
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
>>

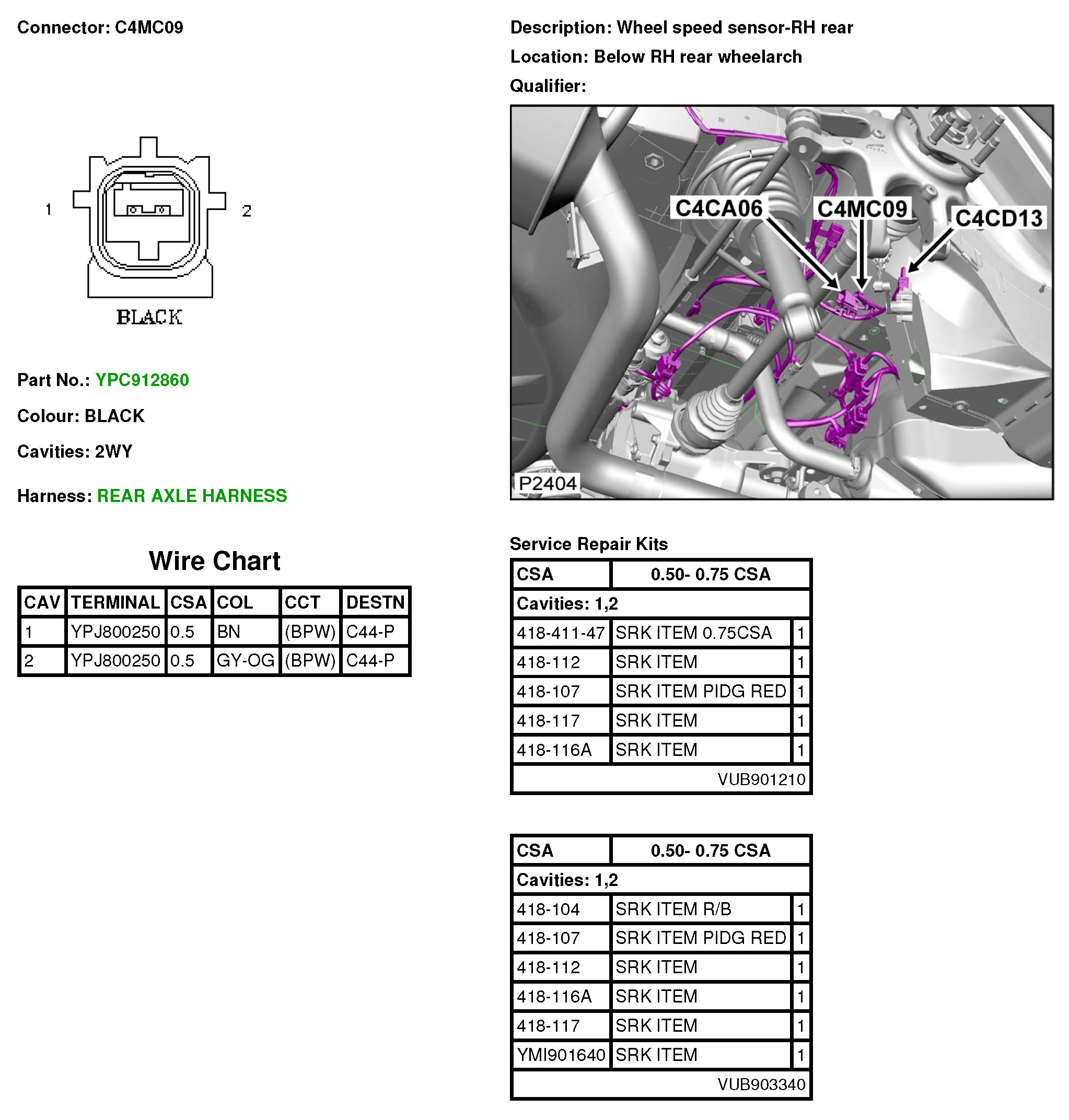

C4MC09 Wheel Speed Sensor-RH Rear
C4MC09 Wheel Speed Sensor-RH Rear
C4MC09
