Parking Assist Distance Sensor
>>

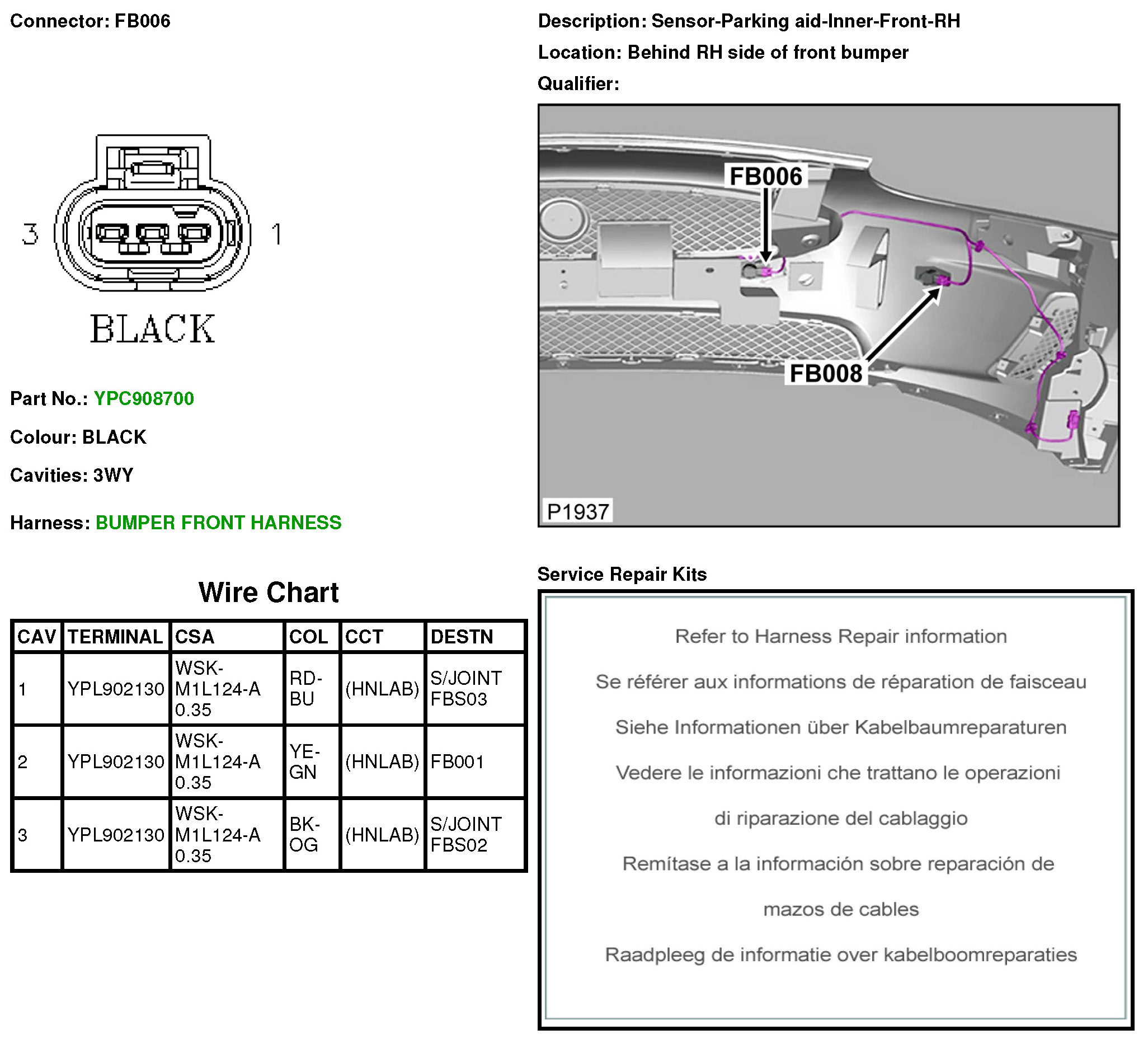

FB006 Sensor-Parking aid-Inner-Front-RH
FB006 Sensor-Parking aid-Inner-Front-RH
FB006
