Power Seat Motor Position Sensor
>>

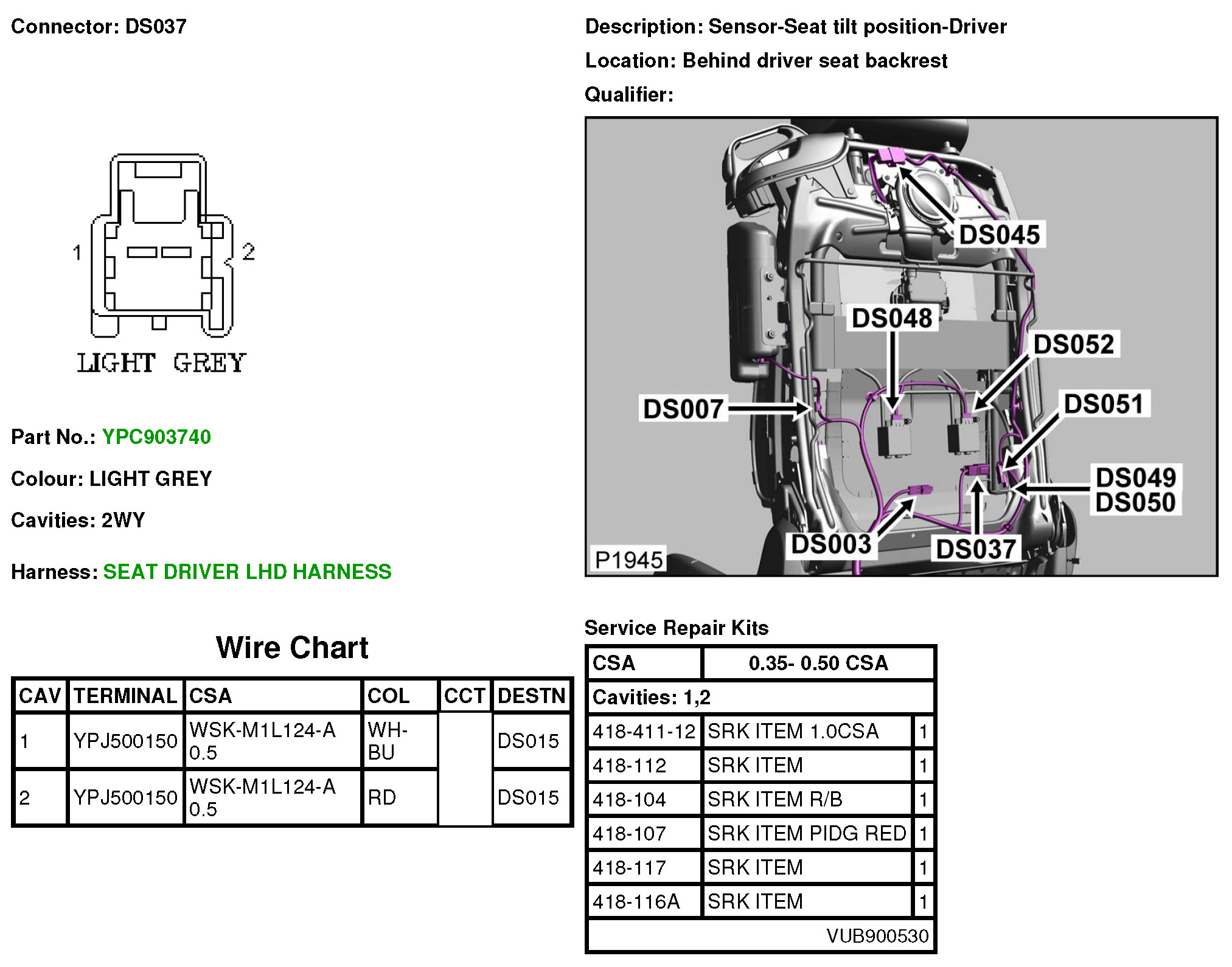

DS037 Sensor-Seat Tilt Position-Driver
DS037 Sensor-Seat Tilt Position-Driver
DS037
