XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>

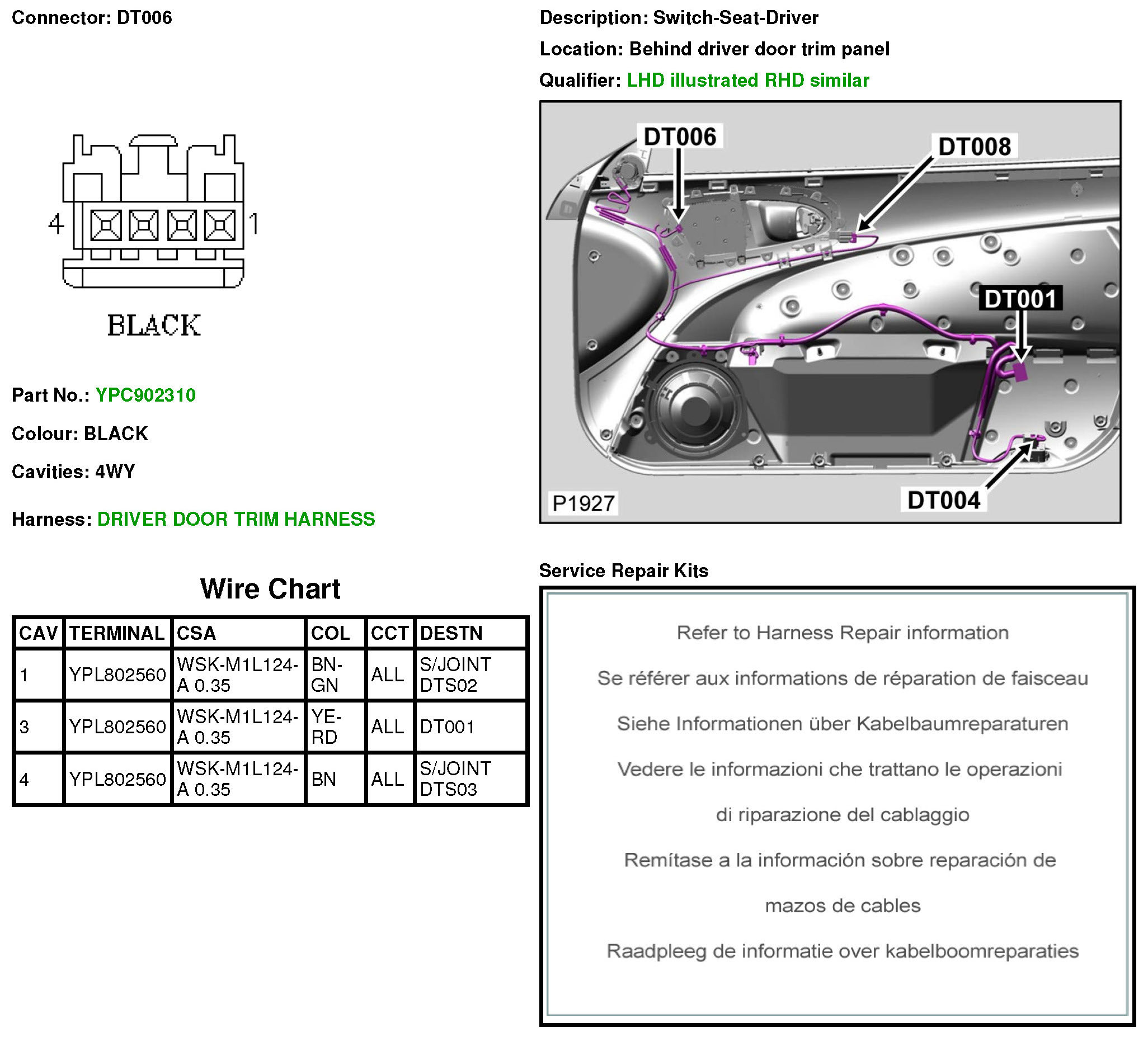

DT006 Switch-Seat-Driver
DT006 Switch-Seat-Driver
DT006
