Connector Views
>>
Wheel Speed Sensor
>>

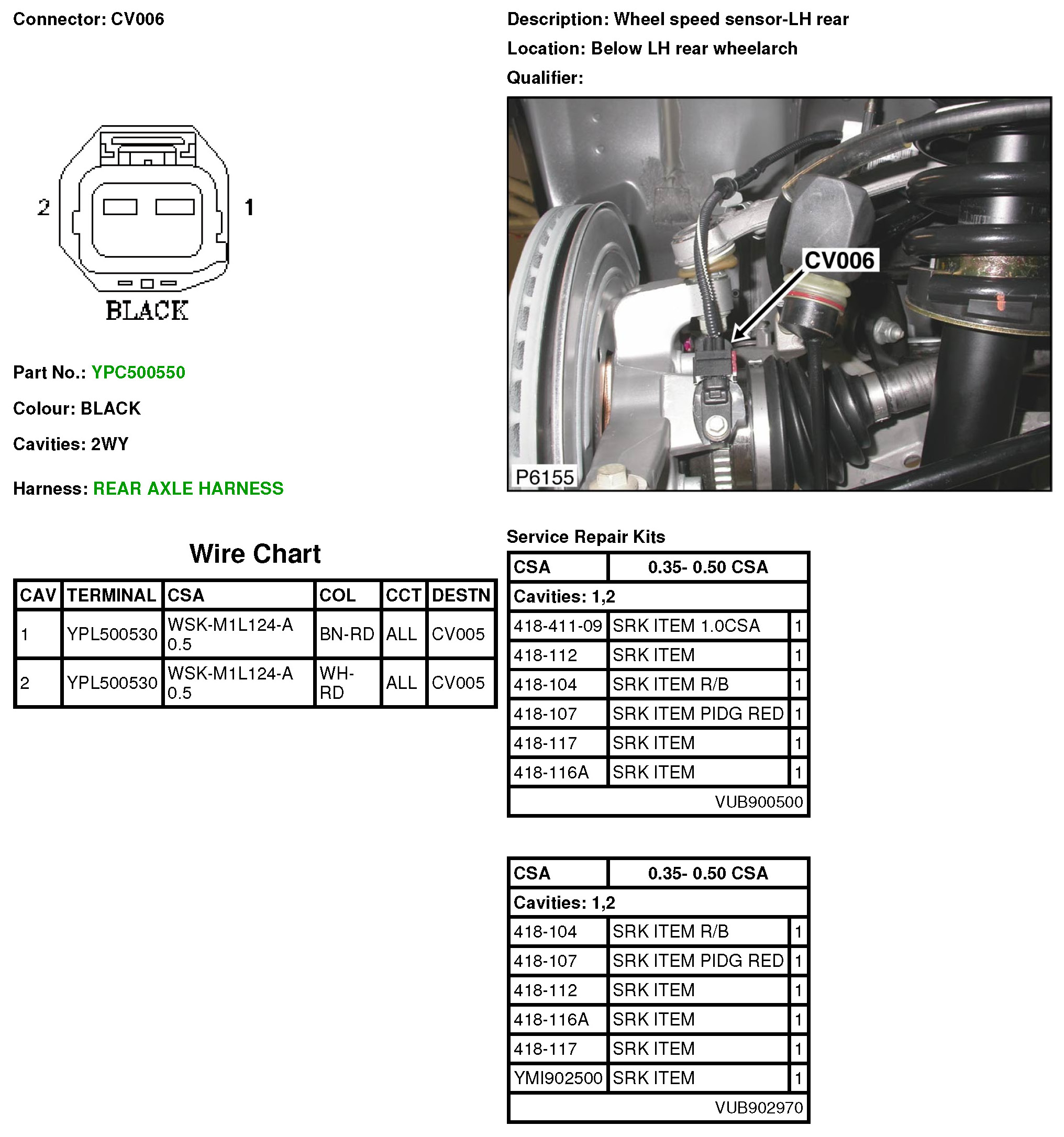

CV006 Wheel Speed Sensor-LH Rear
CV006 Wheel Speed Sensor-LH Rear
CV006
