W/O Air Conditioning

1. Disconnect battery ground cable, then drain cooling system.
2. Disconnect hoses from heater core.

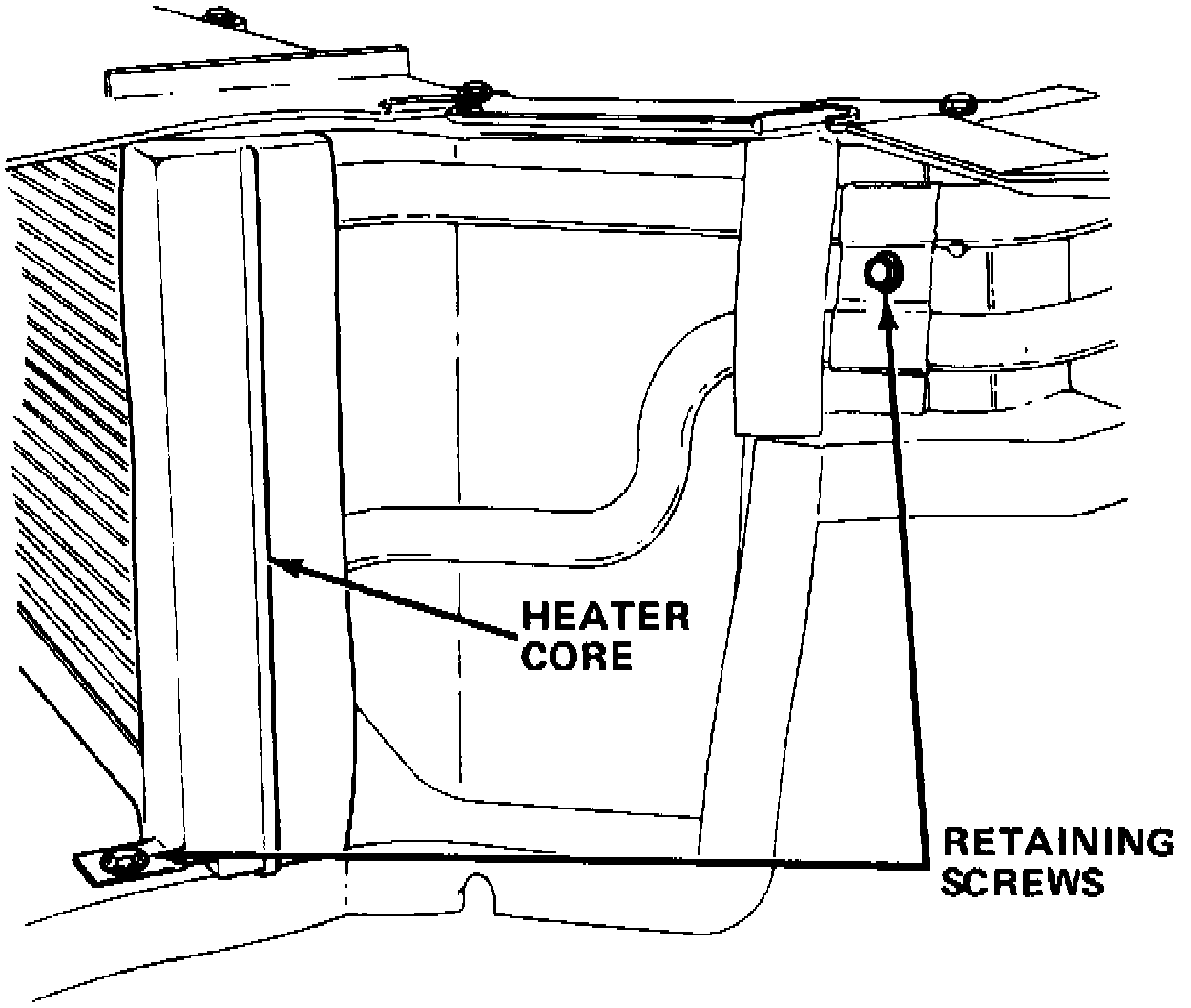

Fig.24 Heater Core Removal:

3. Remove heater core to housing retaining screws, then the heater core.
4. Reverse procedure to install.
