Checking Minimum Idle Airflow
Checking Minimum Idle Airflow

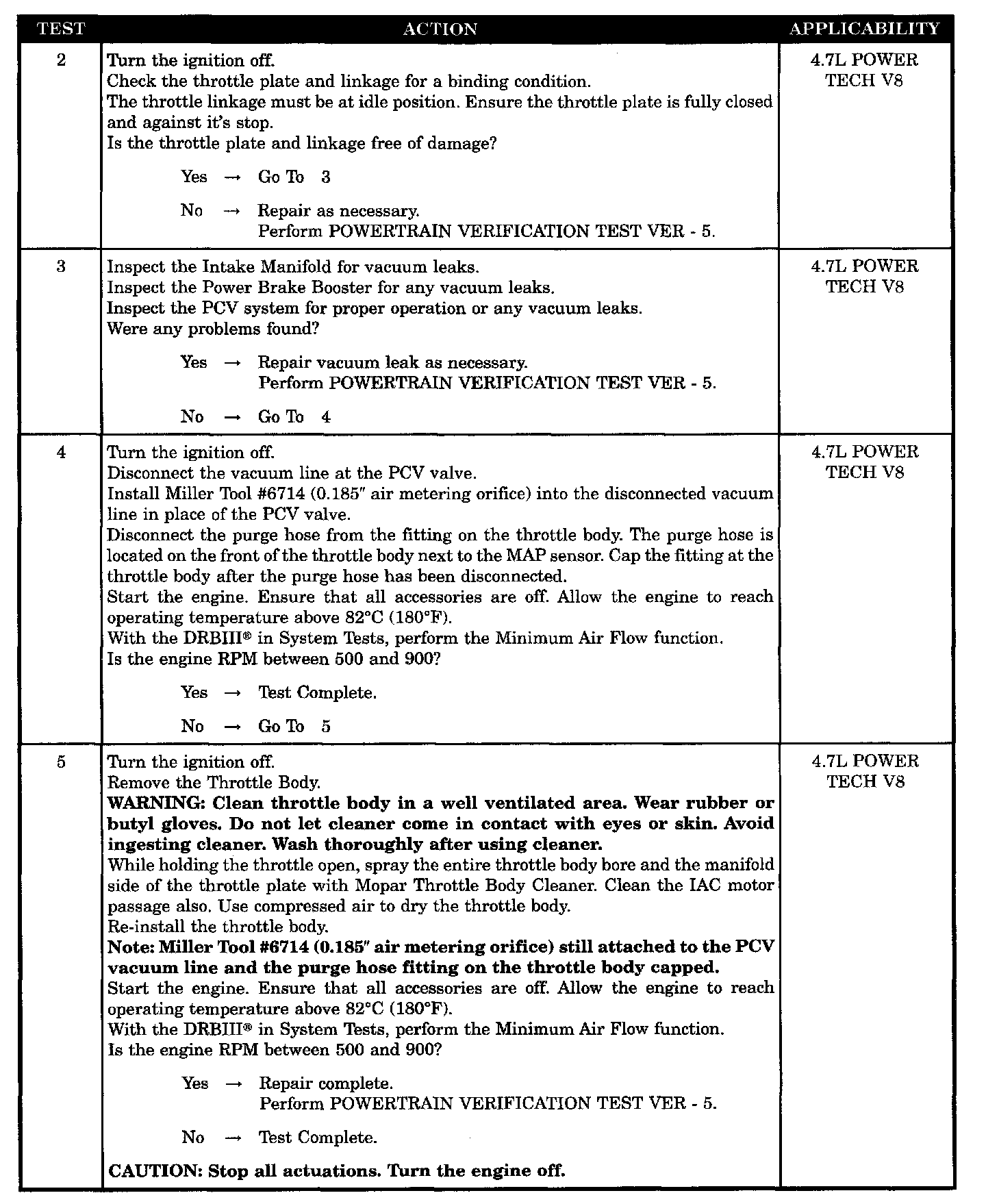

Tests 2 - 5:
SYMPTOM
CHECKING MINIMUM AIRFLOW
POSSIBLE CAUSES
-
Checking the minimum airflow
-
Throttle plate/linkage binding
-
Vacuum leak
-
Throttle body
-
Throttle body dirty
